Goldring E3 Cartridge

Goldring E3 Cartridge

SKU:
GL0058
SKU:
GL0058

Guaranteed In Stock -
Stock/Delivery Info

MSRP: £109.00
Was: £109.00
Now: £89.00
(You save £20.00)
Brand:
Goldring
Availability:In Stock

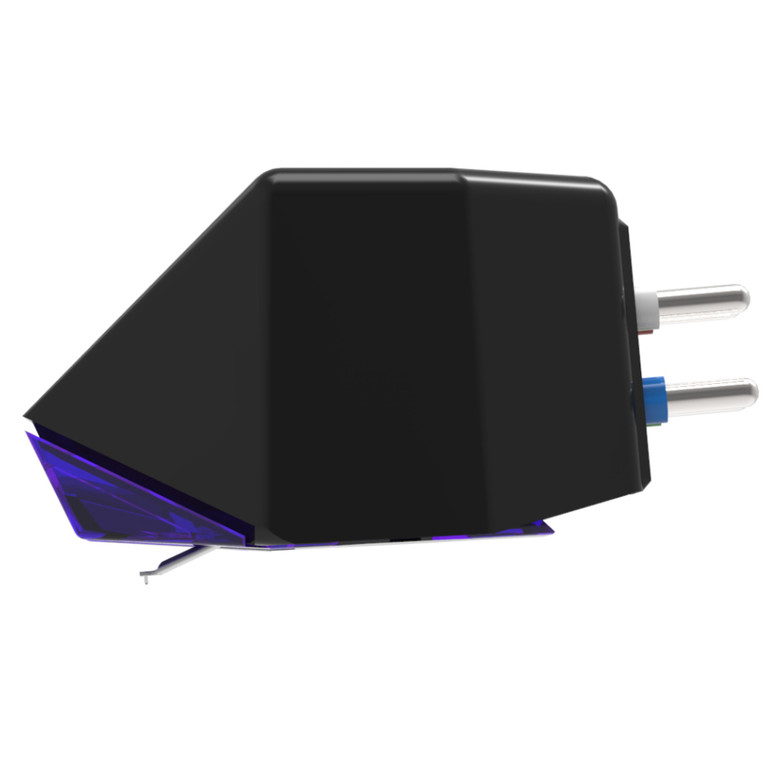

Goldring E3 Moving Magnet Cartridge

The Goldring E3 is a high-performance moving magnet cartridge designed to offer enhanced detail, clarity and tracking accuracy compared to entry-level designs. Positioned between the E2 and flagship E4, it provides an excellent balance of musical refinement and value for vinyl enthusiasts.

Fitted with a super-elliptical diamond stylus, the E3 delivers improved groove contact and reduced distortion, resulting in clearer high frequencies, better stereo separation and lower record wear. It is compatible with standard ½-inch mount tonearms and works with a wide range of MM phono stages.

Manufactured in the UK, the Goldring E3 is an ideal upgrade for listeners looking to extract more detail and control from their turntable without moving to a more complex cartridge type.

  • Moving magnet cartridge with super-elliptical stylus
  • Improved tracking and reduced distortion
  • Standard ½-inch mount compatibility
  • Suitable for most MM phono stages
  • Designed and manufactured in the UK

Specifications

  • Cantilever Type
    Aluminium

    Stylus Type
    Bonded Elliptical

    Stylus Tracking Radius
    10 µm (0.4 mil)

    Equivalent tip mass
    0.7 mg

    Frequency Response
    20 Hz – 20 kHz ± 3 dB

    Frequency Range
    12 Hz – 25 kHz

    Channel Imbalance
    1.5 dB max at 1 kHz

    Channel Separation
    20 dB min at 1 kHz

    Sensitivity
    3.5 mV ± 3 dB at 5 cm/s lateral

    Static Compliance
    20 mm/N

    Trackability
    70 µm

    Vertical Tracking Angle
    24 °

    Load Resistance
    47 kΩ

    Load Capacitance
    100 - 200 pF (150 pF nominal)

    Internal Inductance
    400 mH

    Internal Resistance
    470 Ω

    Cartridge Mass
    6.8 g

    Cartridge Mass (inc. fixings)
    7.8 g

    Fixing Centre
    12.7 mm

    Playing Weight
    1.75 – 2.25 g (2 g nominal)

    Cartridge Height
    17 mm

    Recommended Tonearm Effective Mass
    10 – 30 g
