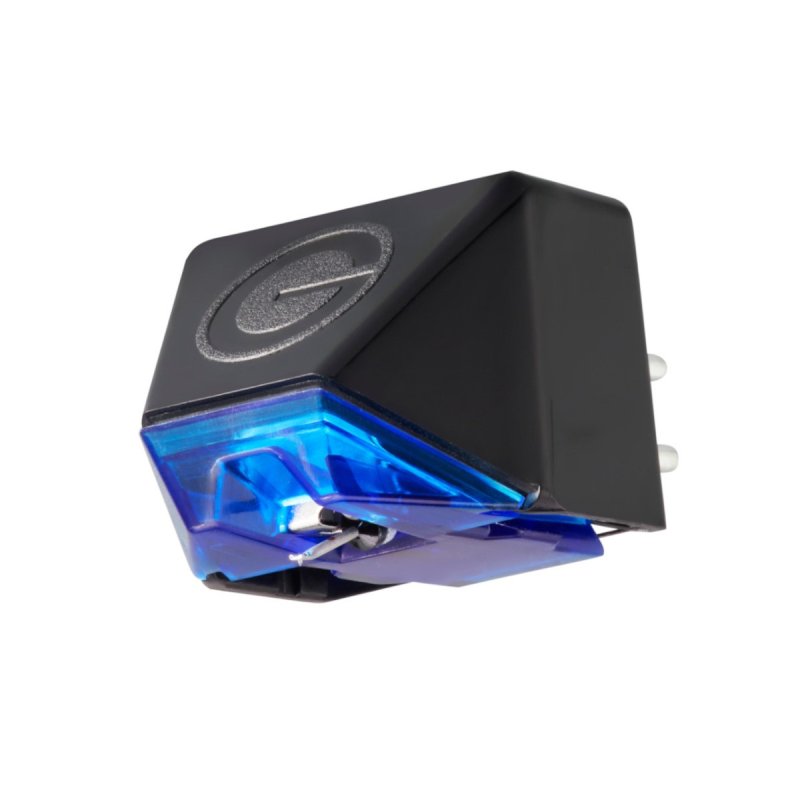

The Goldring E4 is the flagship moving magnet cartridge in Goldring’s E Series, designed to deliver maximum detail, clarity and tracking performance from a traditional MM design. Developed and manufactured in the UK, it represents the highest level of refinement available within the E Series range.
Featuring a nude elliptical diamond stylus mounted on a lightweight cantilever, the E4 offers improved groove contact and high-frequency resolution. This results in greater stereo imaging and lower record wear when correctly aligned.
The Goldring E4 is compatible with standard ½-inch mount tonearms and is suitable for a wide range of turntables, making it an ideal choice for listeners seeking a high-performance MM cartridge without moving to more complex phono stages.
- Flagship moving magnet cartridge in the Goldring E Series
- Nude elliptical diamond stylus for improved detail retrieval
- Excellent tracking performance with low distortion
- Standard ½-inch mount compatibility
- Designed and manufactured in the UK
<\!-- SPECIFICATIONS -->
| Cantilever Type | Aluminium |
|---|
| Stylus Type | Nude Elliptical |
|---|
| Stylus Tracking Radius | 8 µm (0.3 mil) |
|---|
| Equivalent Tip Mass | 0.4 mg |
|---|
| Frequency Response | 20 Hz – 20 kHz ± 3 dB |
|---|
| Frequency Range | 12 Hz – 32 kHz |
|---|
| Channel Imbalance | 1.5 dB max at 1 kHz |
|---|
| Channel Separation | 20 dB min at 1 kHz |
|---|
| Sensitivity | 3.5 mV ± 3 dB at 5 cm/s lateral |
|---|
| Static Compliance | 22 mm/N |
|---|
| Trackability | 70 µm |
|---|
| Vertical Tracking Angle | 24° |
|---|
| Load Resistance | 47 kΩ |
|---|
| Load Capacitance | 100 - 200 pF (150 pF nominal) |
|---|
| Internal Inductance | 400 mH |
|---|
| Internal Resistance | 470 Ω |
|---|
| Cartridge Mass | 6.8 g |
|---|
| Cartridge Mass (inc. fixings) | 7.8 g |
|---|
| Fixing Centre | 12.7 mm |
|---|
| Playing Weight | 1.5 – 2.0 g (1.75 g nominal) |
|---|
| Cartridge Height | 17 mm |
|---|
| Recommended Tonearm Effective Mass | 5 – 20 g |
|---|
