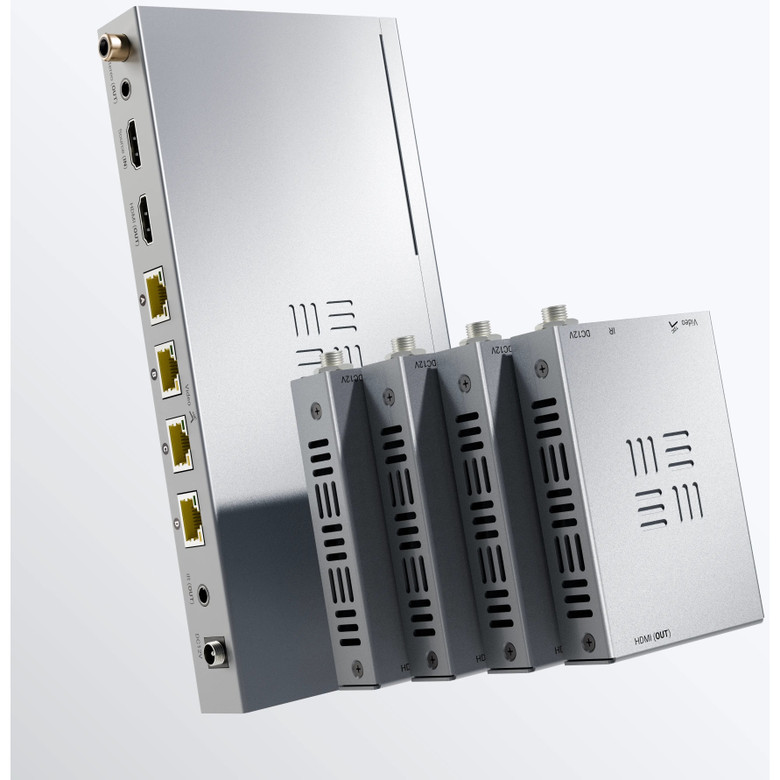

HDAnywhere XTND 4K (1x4+1) TPC Splitter

The HDAnywhere XTND 4K (1x4+1) TPC Splitter sits within the XTND range of HDBaseT video distribution products, designed for installations where a single source needs to feed multiple displays over long cable runs. Unlike point-to-point extenders that handle one display each, the (1x4+1) acts as a central hub, splitting one HDMI input to four remote displays via Cat6 cabling plus a local HDMI loop output — five screens from a single source.

HDBaseT Distribution

The splitter transmits full 18Gbps HDMI 2.0 (a/b) video over standard Cat6 cable at distances up to 40 metres. It is fully HDCP 2.2 compliant and supports all resolutions up to Ultra HD 4K at 60Hz with full 4:4:4 chroma subsampling. All current High Dynamic Range formats are supported, including Dolby Vision Low Latency, HDR10, and HLG. Audio passthrough covers all current formats up to Dolby Atmos and DTS:X.

Installation & Power

All four remote display receivers are powered directly from the splitter hub via Power over Ethernet, eliminating the need for separate power supplies behind each screen. This simplifies installation in environments where power outlets near the display are impractical — only the hub requires a mains connection. The local HDMI loop output allows a fifth display to be connected directly at the source location without using a Cat6 run.

Control

Infrared passback is built in, allowing the source equipment to be controlled from any connected television using the original remote. This enables the source to be located in a separate equipment room or cupboard while maintaining full remote control functionality from any viewing position.

Applications

The XTND 4K (1x4+1) TPC Splitter is suited to residential multi-room setups, retail signage, showrooms, gymnasiums, and commercial environments where centralised AV distribution with minimal cabling infrastructure is required. Multi-territory power adapters (UK, EU, AU, US) are included.
