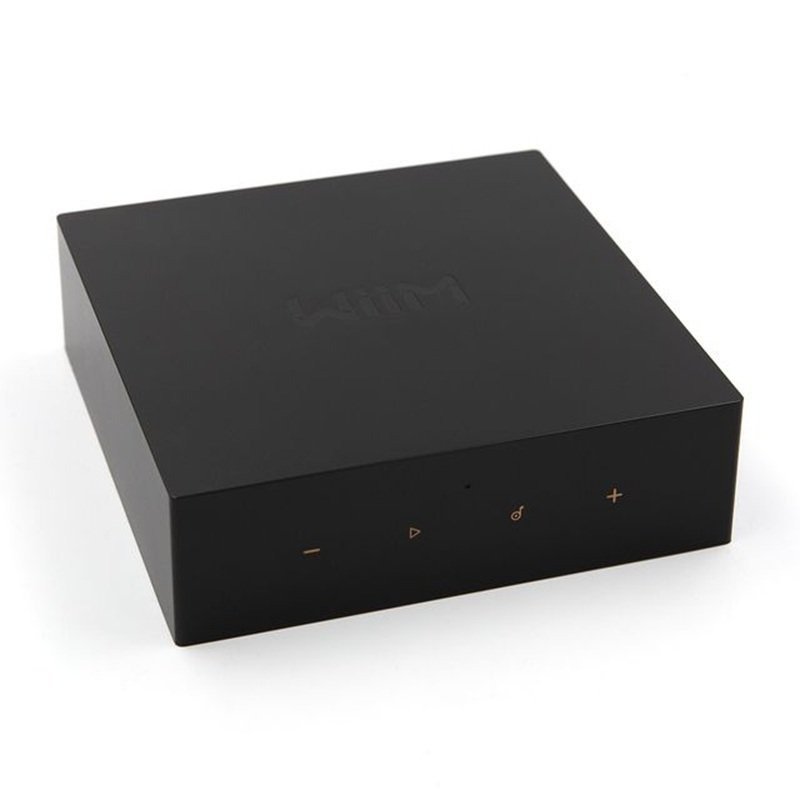

The WiiM CI MOD S is a slim audiophile-grade network streamer designed for custom installation, sitting alongside the larger CI MOD A80 streaming amplifier in the WiiM CI line. Built for integrators, the unit measures just 140 x 140 x 42 mm and runs from a USB-C 5V supply, allowing it to be hidden inside racks, cabinets, or behind a fixed install.
Audiophile DAC and Hi-Res streaming
An AKM AK4493SEQ DAC handles digital conversion, supporting bit-perfect playback up to 24-bit/192 kHz. WiiM quotes 120 dB signal-to-noise ratio and 0.00032% THD+N, with a full set of analogue and digital outputs allowing the streamer to feed an integrated amplifier, a separate DAC, or a DSP processor. Streaming protocols include Chromecast Audio, DLNA, Spotify Connect, TIDAL Connect, Amazon Music Casting, Qplay 2.0, and Roon Ready, and the WiiM Home app integrates the major streaming services including Spotify, Tidal, Qobuz, Amazon Music, Deezer, TuneIn, and BBC Radio.
Connectivity

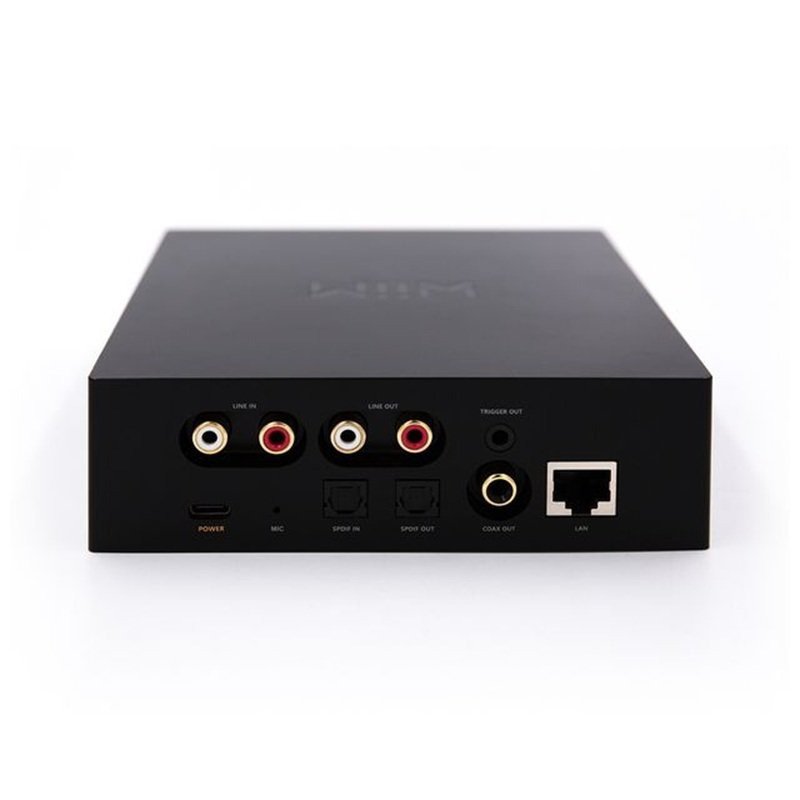

Inputs are 1x analogue RCA line input and 1x optical S/PDIF (up to 24-bit/192 kHz). Outputs are 1x analogue RCA line, 1x optical S/PDIF (24-bit/192 kHz), and 1x coaxial S/PDIF (up to 32-bit/192 kHz). A 3.5 mm trigger output is provided for amplifier integration. Networking covers dual-band 802.11 a/b/g/n/ac Wi-Fi (2.4 and 5 GHz) and 10/100M Ethernet, with Bluetooth 5.1 for tablet and phone playback.
Room correction and EQ
The CI MOD S includes WiiM's built-in room correction system, alongside 24 genre presets, a 10-band graphic EQ that can be applied per source (Line in, Bluetooth, or Network), and a 10-band parametric L/R EQ with bass management for fine room tuning.
Control system integration

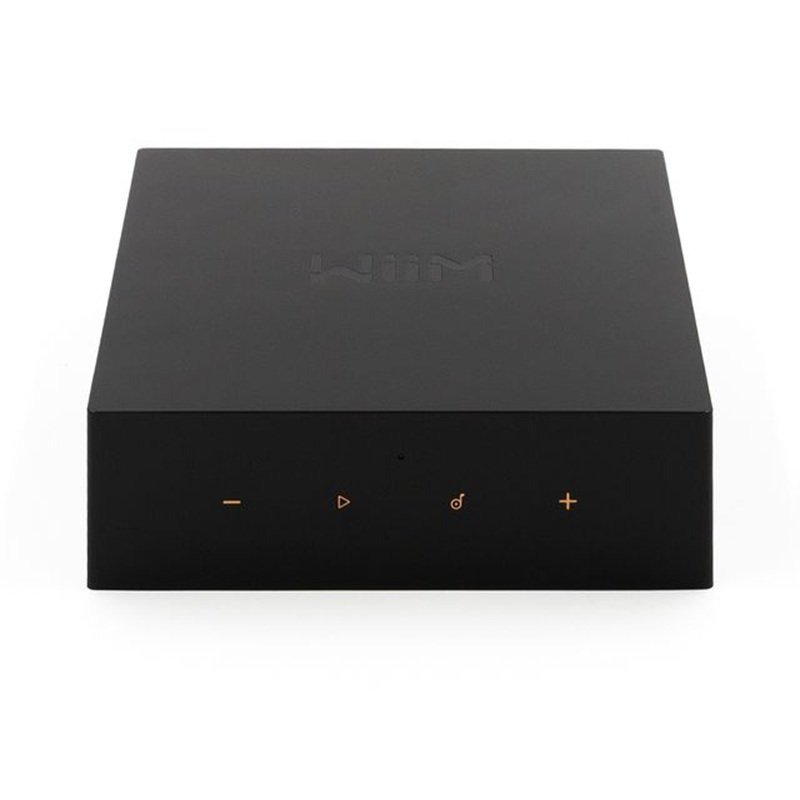

Direct driver support is provided for Control4, RTI, URC, and Josh.ai, making the unit straightforward to drop into a managed installation. Three touch buttons on the unit cover Play/Pause/Setup, Volume +, and Volume -.
In the box
WiiM CI MOD S, optical cable, stereo RCA cable, USB Type-C cable, mains adapter, and three mounting screws.
