WiiM Amp + Klipsch CS-16 C II Speaker Bundle

WiiM
Product ID: 2235
  • WiiM Amp (60W/ch) + Klipsch CS-16 C II in-ceiling speakers (Pair)
  • AirPlay 2, Chromecast, Spotify Connect, TIDAL Connect, DLNA
  • HDMI ARC for TV; 91 dB sensitivity; 65 Hz to 20 kHz
Read full description
£278.00
Delivery: Free | Collection: Free
Condition: New (More info)
Available to order (More info)
🎁 Q Club Reward
Join free to unlock
Buy qualifying products to unlock your free accessories reward budget!

Description

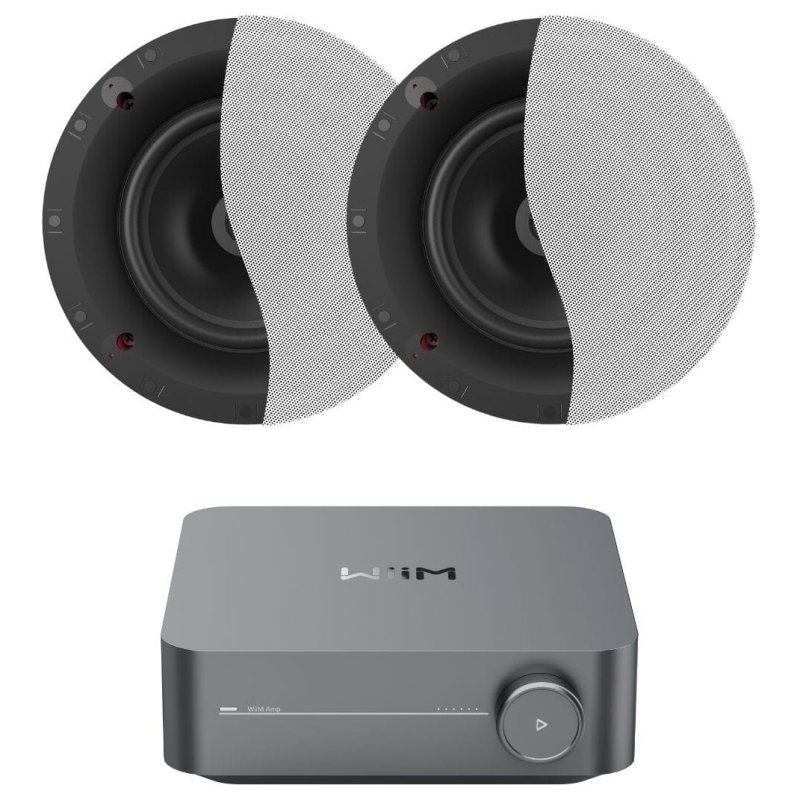

The WiiM Amp and Klipsch CS-16 C II bundle brings together a full-featured streaming amplifier and a pair of 6.5-inch in-ceiling speakers in a single, competitively priced package. It is designed for anyone who wants discreet, high-quality music throughout a room without the complexity of a full custom-install project.

What's in the Bundle

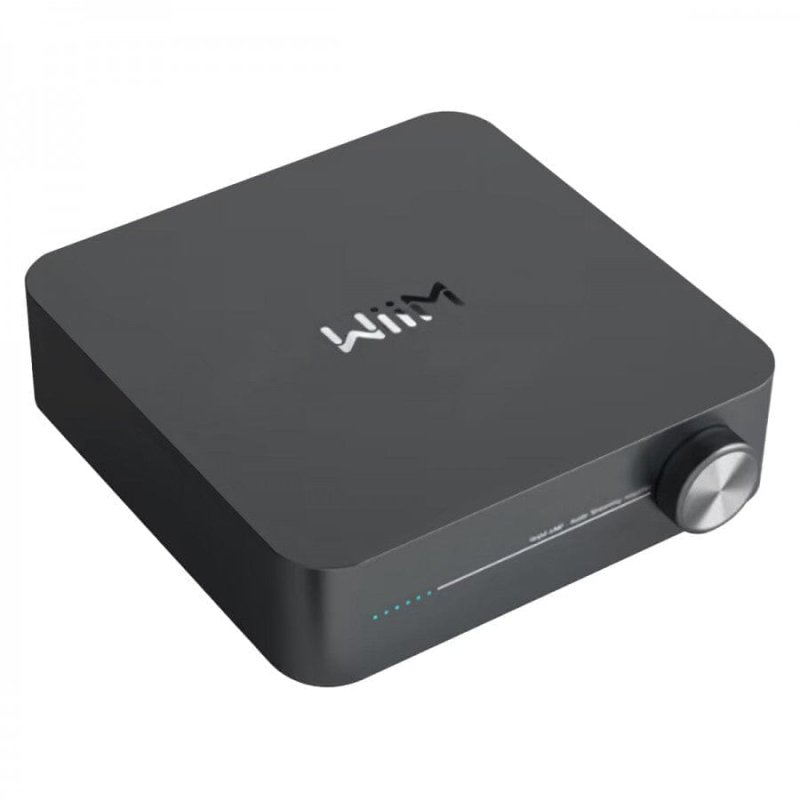

The WiiM Amp is a Class D streaming amplifier delivering 60 watts per channel into 8 ohm loads, rising to 120 watts per channel at 4 ohms. It accepts physical connections via HDMI ARC, optical digital, RCA analogue, and USB-A, and connects wirelessly over Wi-Fi or two-way Bluetooth. Streaming services supported include AirPlay 2, Chromecast Audio, Spotify Connect, TIDAL Connect, Amazon Music, Deezer, Qobuz, TuneIn, and DLNA. A dedicated subwoofer RCA output is provided for bass extension. The WiiM Home app handles setup, source switching, multiroom grouping, and EQ.

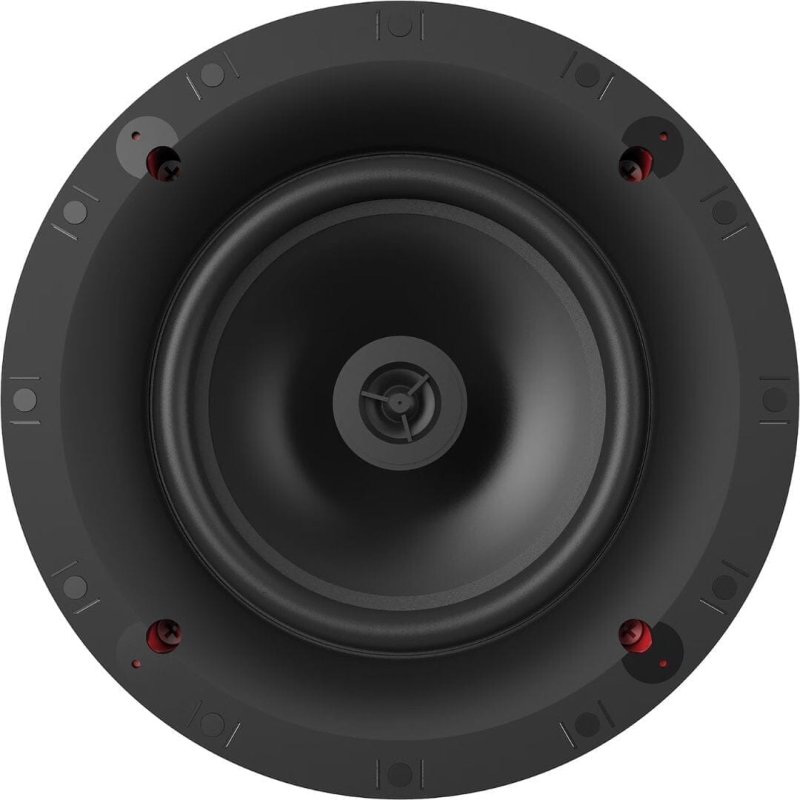

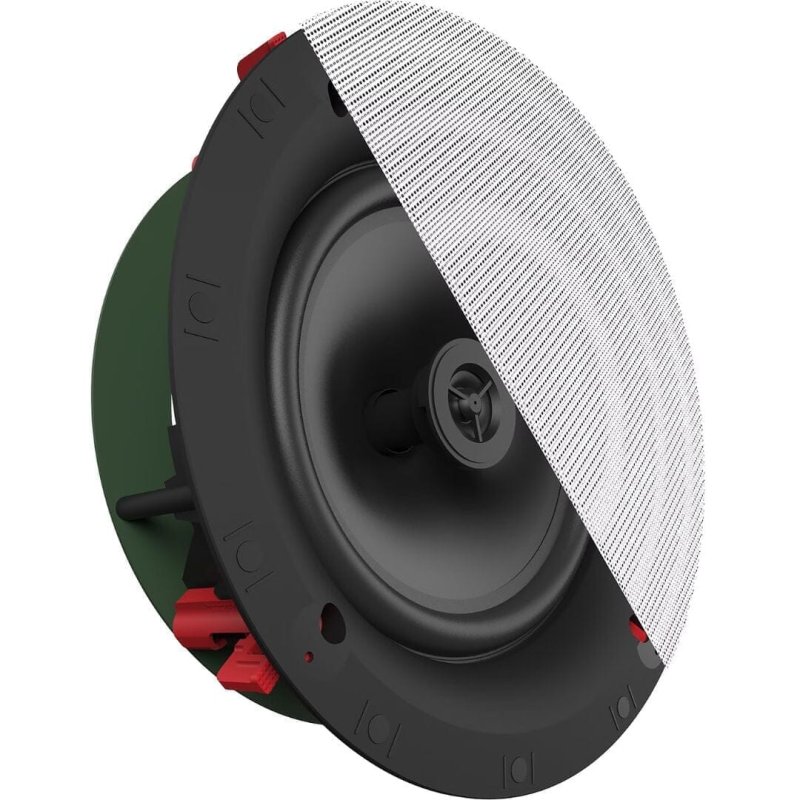

The Klipsch CS-16 C II is a two-way in-ceiling speaker built around a 165 mm (6.5-inch) polymer woofer and a 25 mm polymer dome tweeter. It is rated at 8 ohms and handles 40 watts RMS, with a sensitivity of 91 dB at 2.83 V/1 m. The ABS baffle and infinite baffle enclosure design allows installation directly into standard plasterboard ceilings without a separate back box (though a fire-rated enclosure is available separately). A white paintable magnetic grille is included, and the speaker front can be painted to match any ceiling colour. The patented Sky Hook installation system secures the speaker from the front, removing the need for rear access. This bundle includes one pair of CS-16 C II speakers.

Connectivity and Streaming

The WiiM Amp supports an exceptionally broad range of streaming protocols, making it compatible with virtually any smartphone, tablet, or computer in a household. AirPlay 2 supports multi-room sync with other AirPlay 2 devices; Chromecast Audio integrates with Google Cast ecosystems; Spotify Connect, TIDAL Connect, and Qobuz allow playback without keeping a device's screen on. DLNA enables access to music libraries on network-attached storage. The HDMI ARC port allows the bundle to serve as a speaker-based TV sound upgrade, routing television audio through the ceiling speakers.

Sound Shaping

The WiiM Home app provides 24 EQ presets, a 10-band graphic equaliser adjustable per source input, and a 4-band parametric EQ for room correction. High-resolution audio formats are supported up to 24-bit/192 kHz, covering FLAC, ALAC, AIFF, WAV, and APE files alongside standard formats including MP3, AAC, OGG, and WMA. The Klipsch CS-16 C II has a rated frequency range of 65 Hz to 20 kHz (+/-3 dB), suitable for music and general background audio in small to medium-sized rooms.

Installation

The CS-16 C II requires a 203 mm circular cut-out in the ceiling. Mounting depth is 99 mm. The Sky Hook system uses spring-loaded clamps that grip the ceiling material from the front during tightening. Speaker cable runs connect directly to the WiiM Amp's binding posts on the rear panel. The WiiM Amp requires a standard UK mains socket and a Wi-Fi network or Ethernet connection.


Specification

Bundle ContentsWiiM Amp streaming amplifier, Klipsch CS-16 C II in-ceiling speakers (Pair)
Amplifier Power Output60W per channel (8Ω); 120W per channel (4Ω)
Amplifier TechnologyClass D (TI TPA3255)

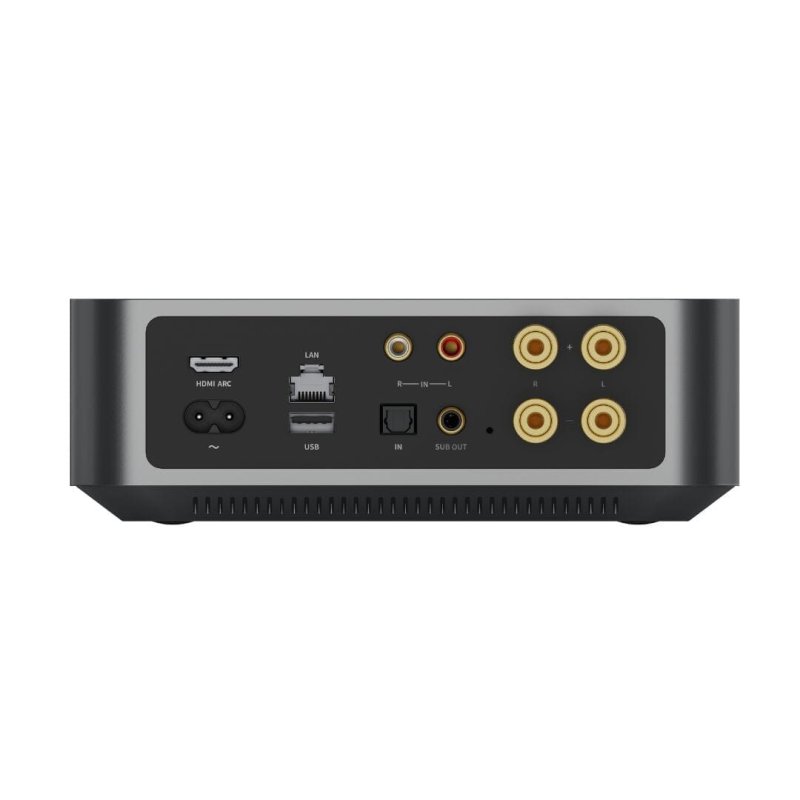

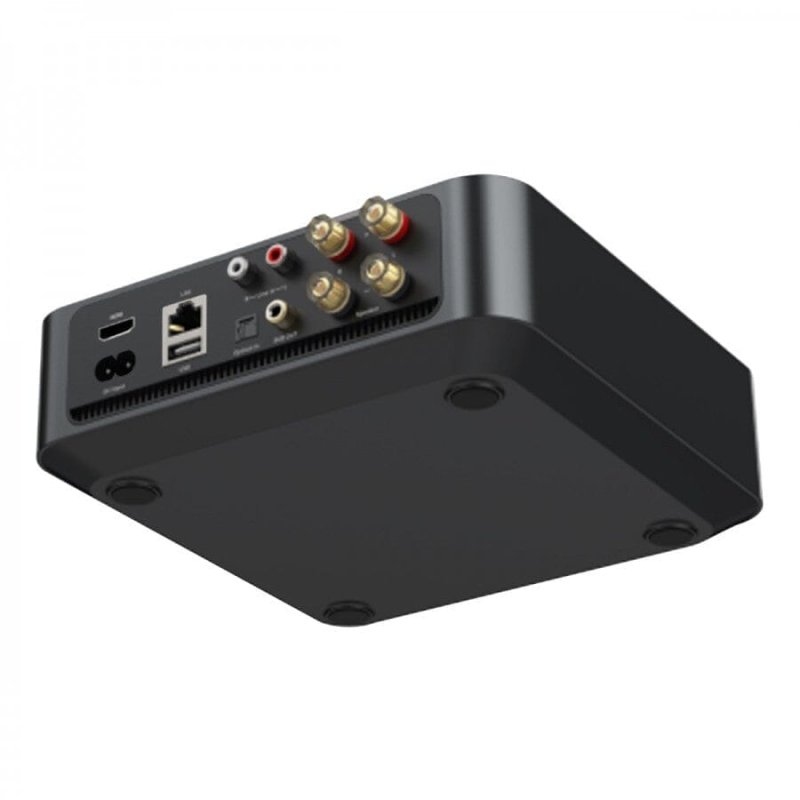

Amplifier InputsHDMI ARC ×1, Optical ×1, RCA Analogue ×1, USB-A ×1
Amplifier OutputsSpeaker terminals, RCA Subwoofer ×1
WirelessWi-Fi, Bluetooth (two-way)
StreamingAirPlay 2, Chromecast Audio, Spotify Connect, TIDAL Connect, Amazon Music, Deezer, Qobuz, TuneIn, DLNA
Audio FormatsFLAC, ALAC, AIFF, WAV, APE, MP3, AAC, OGG, WMA
Hi-Res AudioUp to 24-bit/192 kHz
EQ10-band graphic (per source), 4-band parametric, 24 presets
Amplifier Dimensions190 × 63 × 190mm
Amplifier Weight1.8 kg
Speaker TypeTwo-way in-ceiling
Speaker Driver165mm (6.5") polymer woofer; 25mm polymer dome tweeter
Frequency Response65 Hz to 20 kHz (+/-3 dB)
Sensitivity91 dB @ 2.83V/1m
Power Handling40W RMS / 160W Peak
Impedance8 Ohm
Speaker Dimensions233 × 233 × 104mm
Mounting Depth99mm
Cutout Diameter203mm
Speaker Weight2.3 kg (each)
GrilleWhite paintable magnetic grille (included)
