The Diamond 12.3i is the larger floorstander in Wharfedale's updated DIAMOND 12i Series, sitting between the slimmer Diamond 12.2i floorstander and the flagship Diamond 12.4i in the range. It builds on the long-running DIAMOND 12 Series introduced in 2020, adding modern finishes and subtle acoustic refinements while keeping the engineering principles that made the original a long-standing reference at its price point.
Driver Configuration

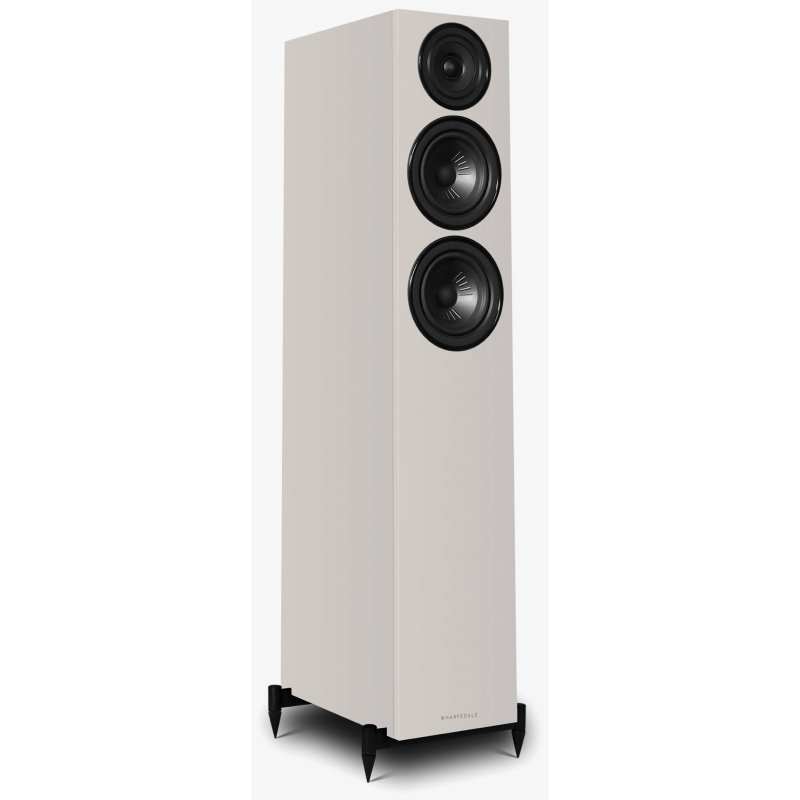

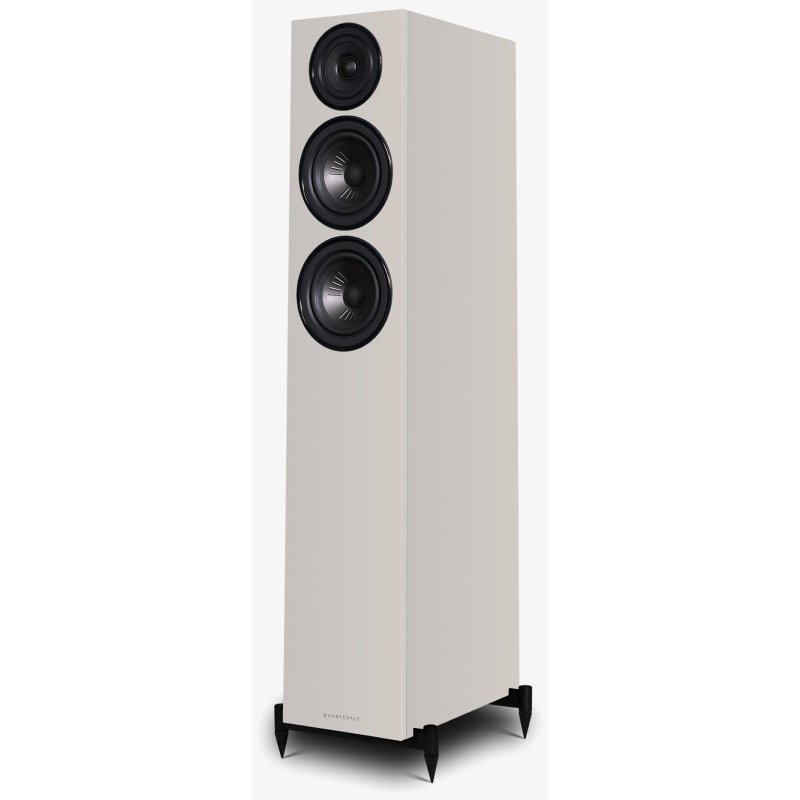

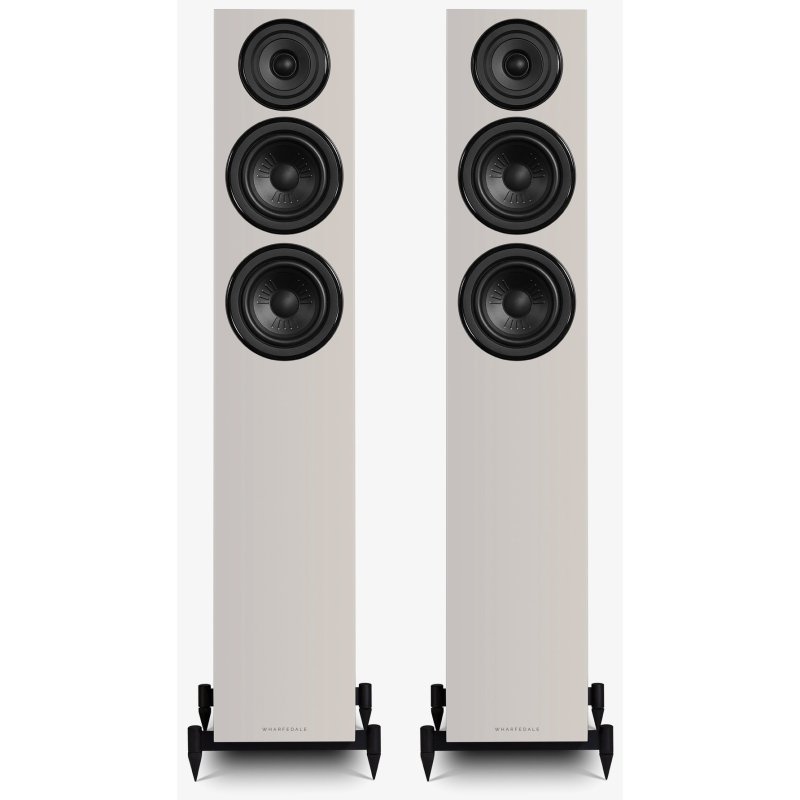

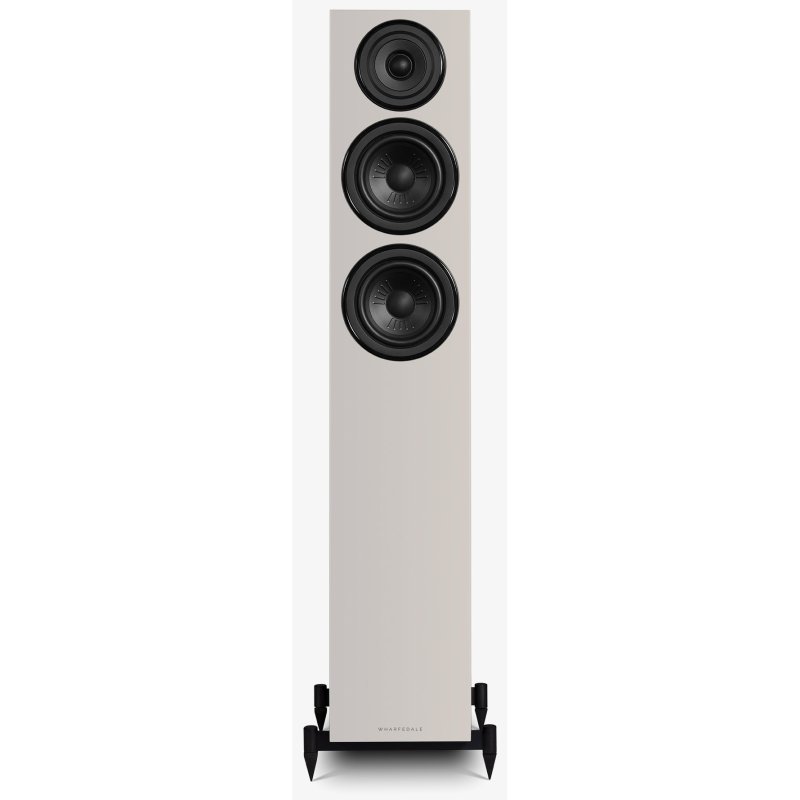

The 12.3i is a 2.5-way design housing three drive units. A 1-inch (25mm) textile dome tweeter handles the highest frequencies, while two 5-inch (130mm) advanced polypropylene cone drivers below it share midrange and bass duties. The polypropylene cone material is chosen for its smooth break-up behaviour and consistency from unit to unit, supporting an even tonal balance across the listening window.
Cabinet and Loading

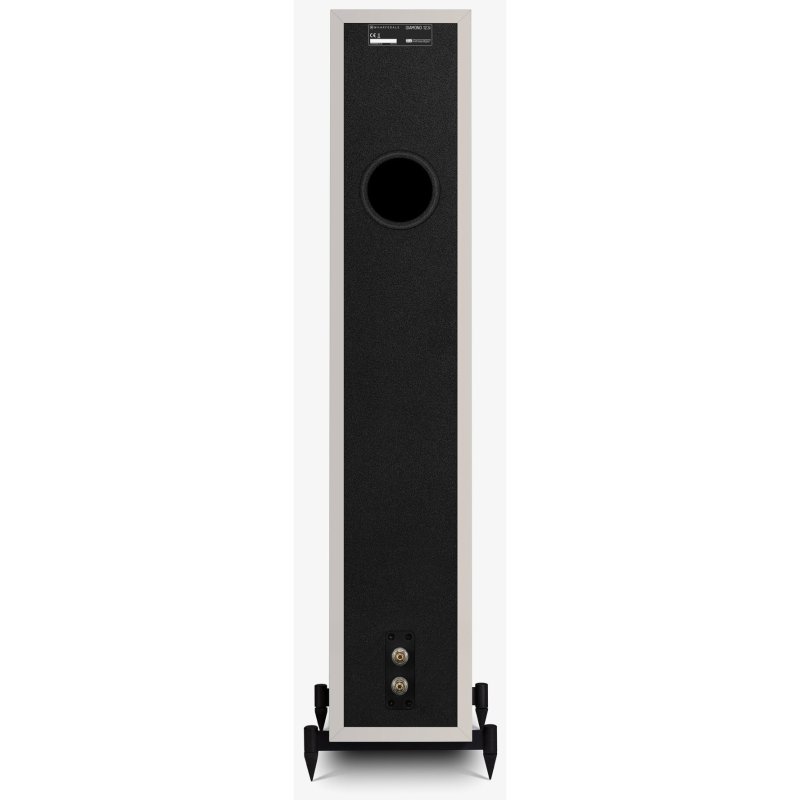

The cabinet is a bass-reflex enclosure with an internal volume of 26.6 litres, providing the back-loading required to extract low-frequency output from the relatively compact 5-inch drivers. Total cabinet height including the plinth measures 975mm, with the speaker standing 320mm deep including its rear terminal and 348mm at its base. The 19.5kg per-speaker mass reflects substantial bracing and panel construction, helping to keep the cabinet inert during playback.
Performance and Compatibility
Sensitivity is rated at 89dB (2.83V at 1m), making the 12.3i straightforward to drive with mainstream stereo amplification. Wharfedale specifies a recommended amplifier power band of 30 to 150 watts, with peak SPL up to 102dB. Nominal impedance is 8 ohms, dipping to a compatible minimum of 5 ohms; this presents an undemanding load for most integrated amplifiers and AV receivers. Frequency response is quoted as 45Hz to 20kHz (+/-3dB), with low-frequency extension reaching 40Hz at the -6dB point, and the crossover handover sits at 2.2kHz.
Finishes

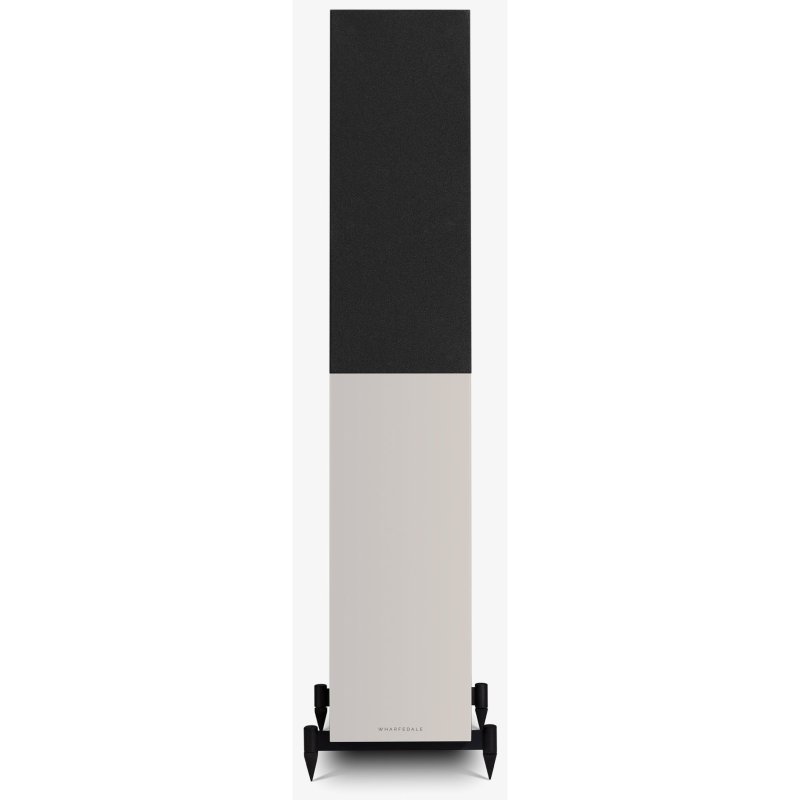

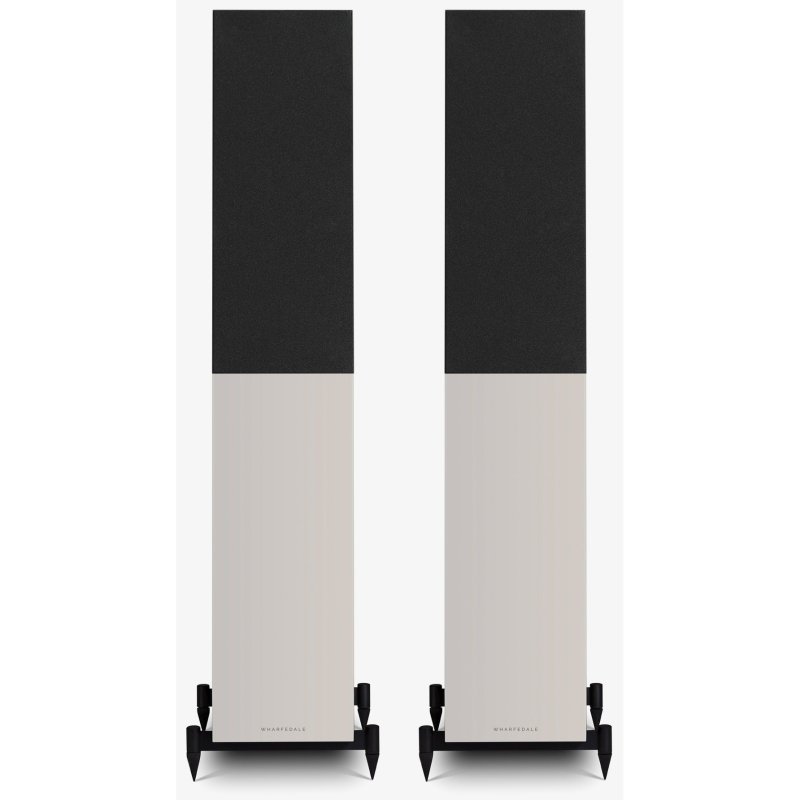

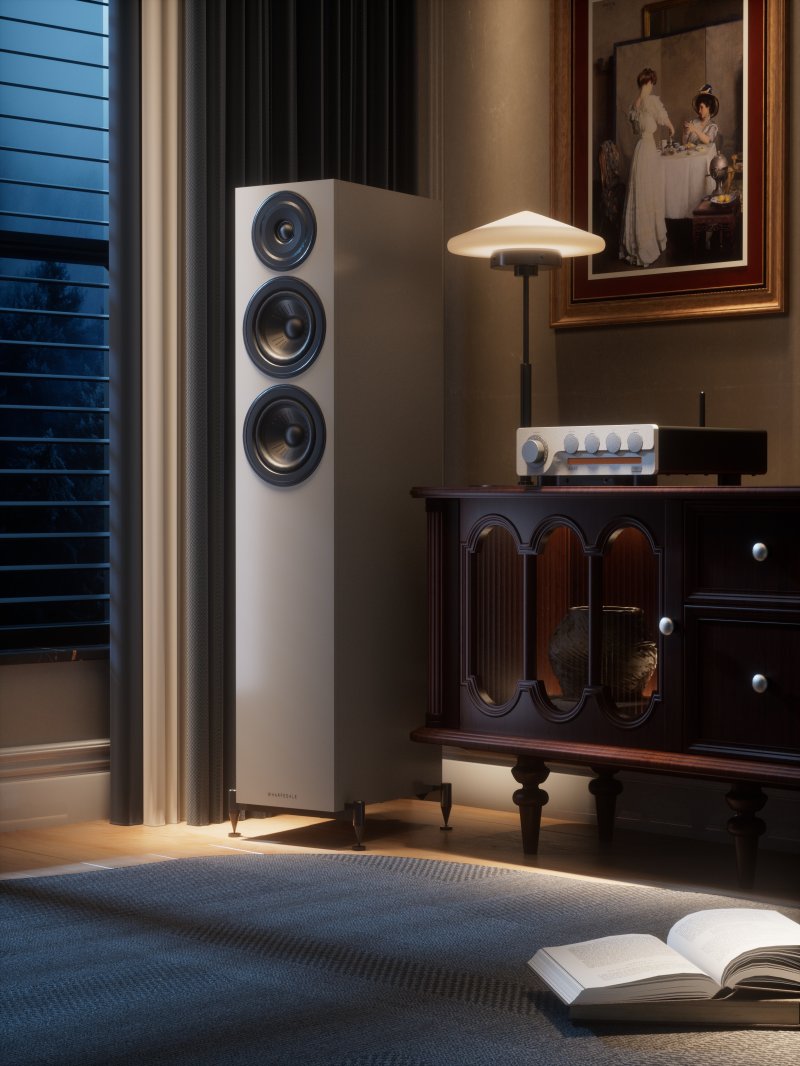

This listing is for the Stone Grey finish, a soft warm grey applied to the cabinet for a contemporary, understated appearance that suits modern living rooms. The Diamond 12.3i is also available in All-black and Classic Walnut.
