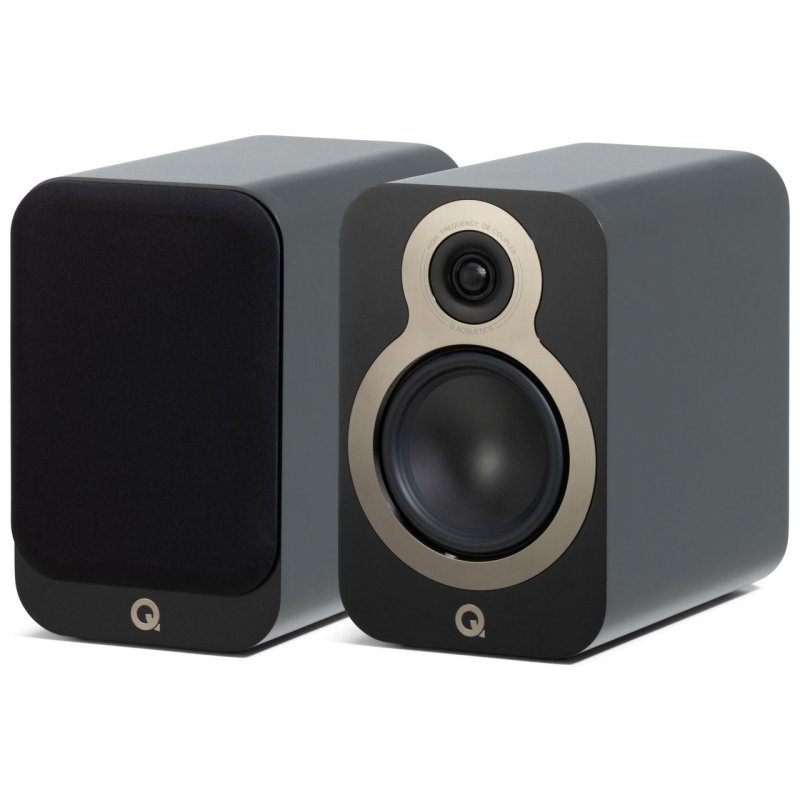

The Q Acoustics 3020C sits within the generation C lineup, the latest evolution of Q Acoustics' acclaimed 3000 series, succeeding the 3020i. Designed as a compact bookshelf speaker, the 3020C delivers a refined balance of scale, detail, and bass control that belies its modest footprint, making it a natural partner for stereo hi-fi systems in rooms where space is at a premium.
C3 Continuous Curved Cone Driver

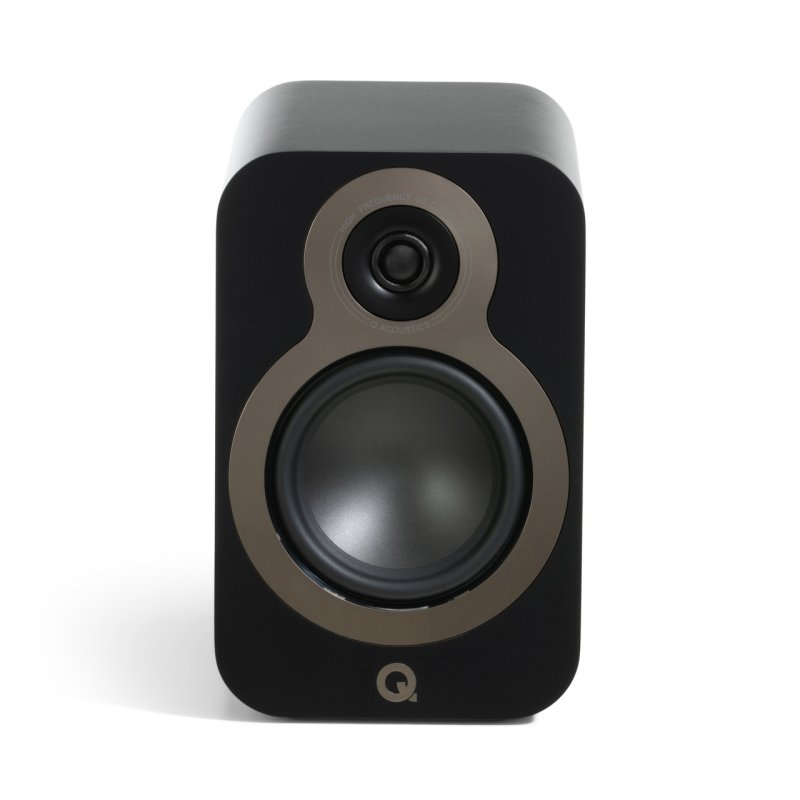

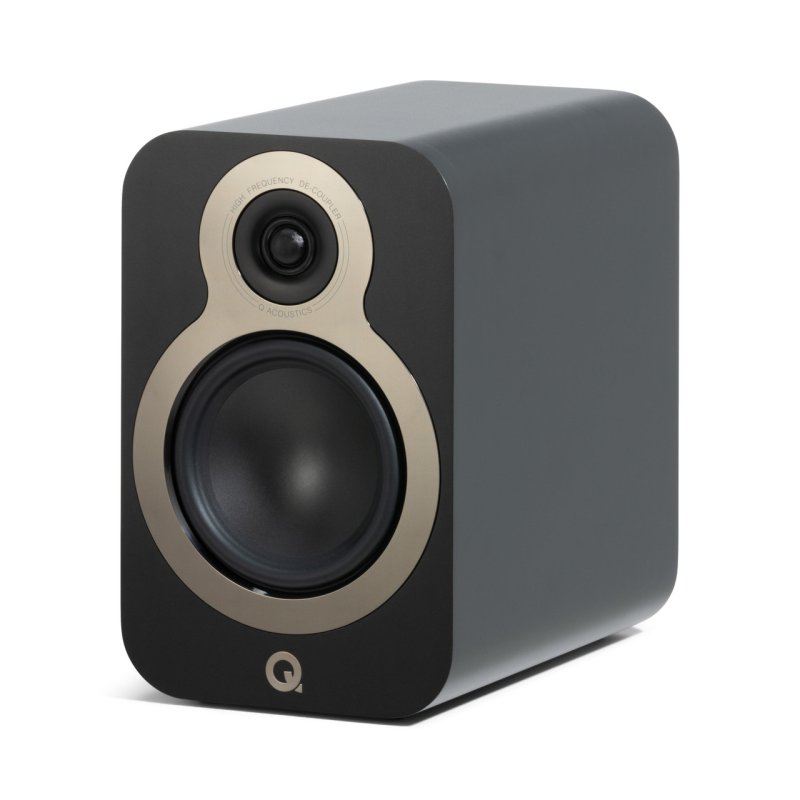

At the heart of the 3020C is Q Acoustics' 120mm (4.75") CĀ³ Continuous Curved Cone bass driver. The CĀ³ profile combines the bass performance benefits of a traditional straight conic cone with the high and mid-range frequency control of a flared cone, enabling superior dynamics and flexible room placement without the compromises typically associated with compact enclosures.
Tweeter and Crossover
The high-frequency driver is a 22mm (0.9") unit that is hermetically sealed and mechanically isolated from the cabinet, reducing the transmission of cabinet-borne vibrations into the tweeter assembly. The crossover point between the bass driver and tweeter is set at 2.6 kHz.
Cabinet Construction

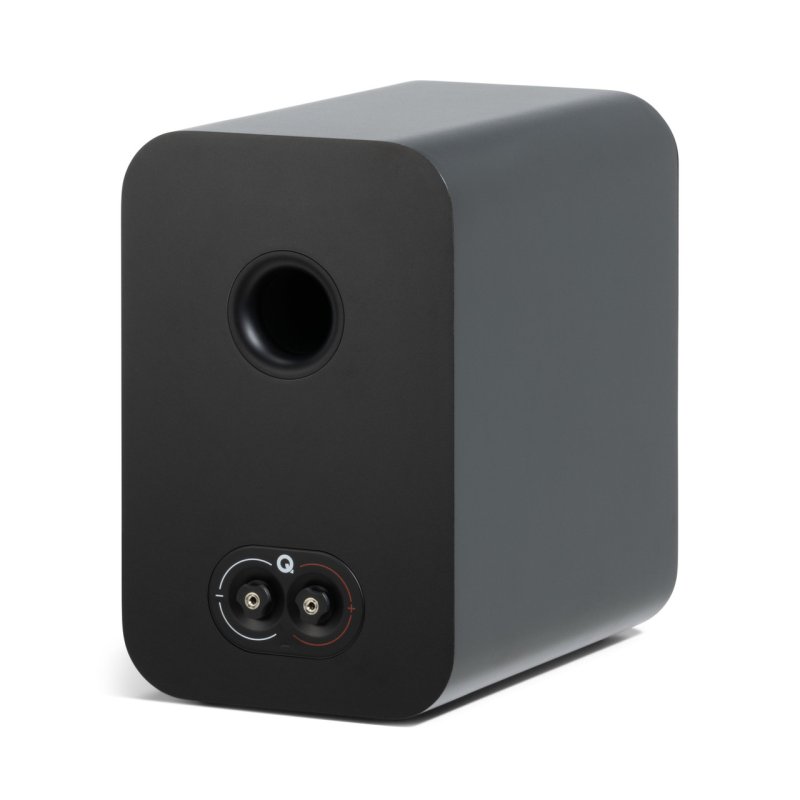

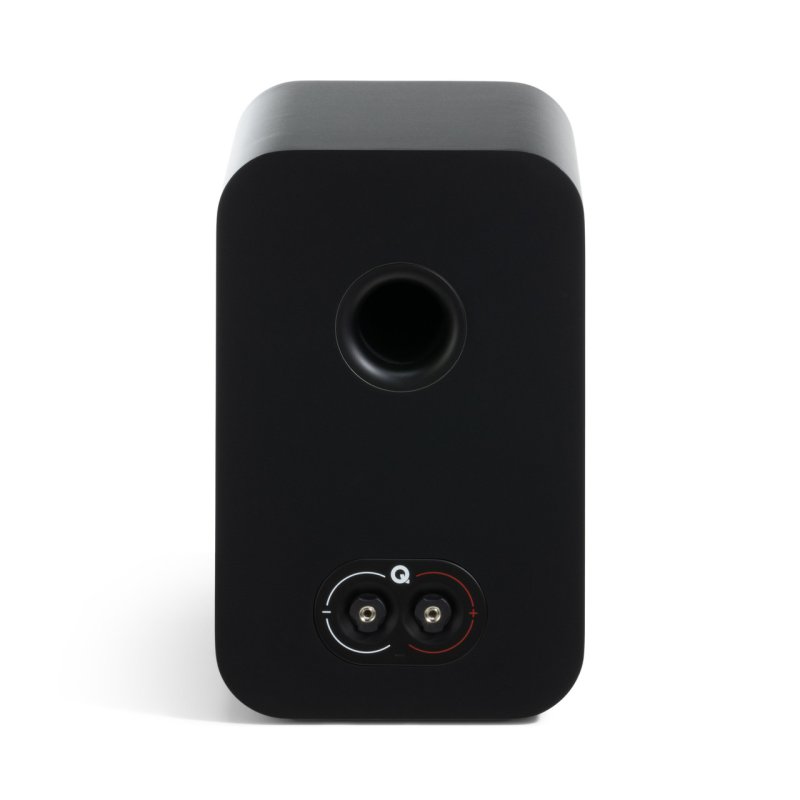

The 3020C cabinet employs Q Acoustics' P2P (Point to Point) bracing, a structural reinforcement technique that ties opposing cabinet walls together at strategic points, increasing rigidity and reducing panel resonance. The result is a low-colouration enclosure with minimal reverberation, allowing the drivers to operate without interference from the cabinet itself. The rear-ported design works within an effective internal volume of 6.9 litres.

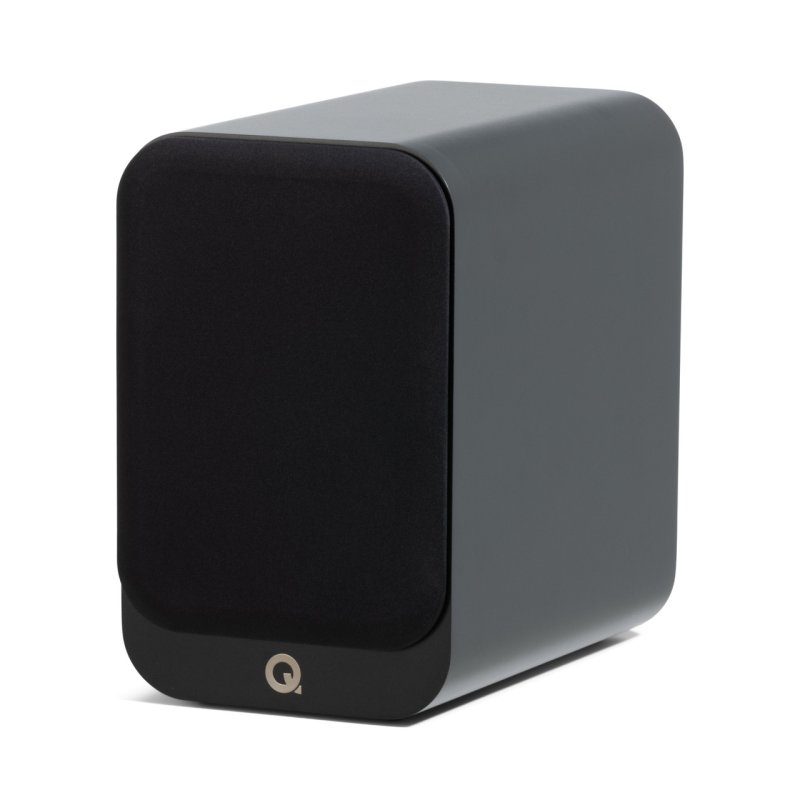

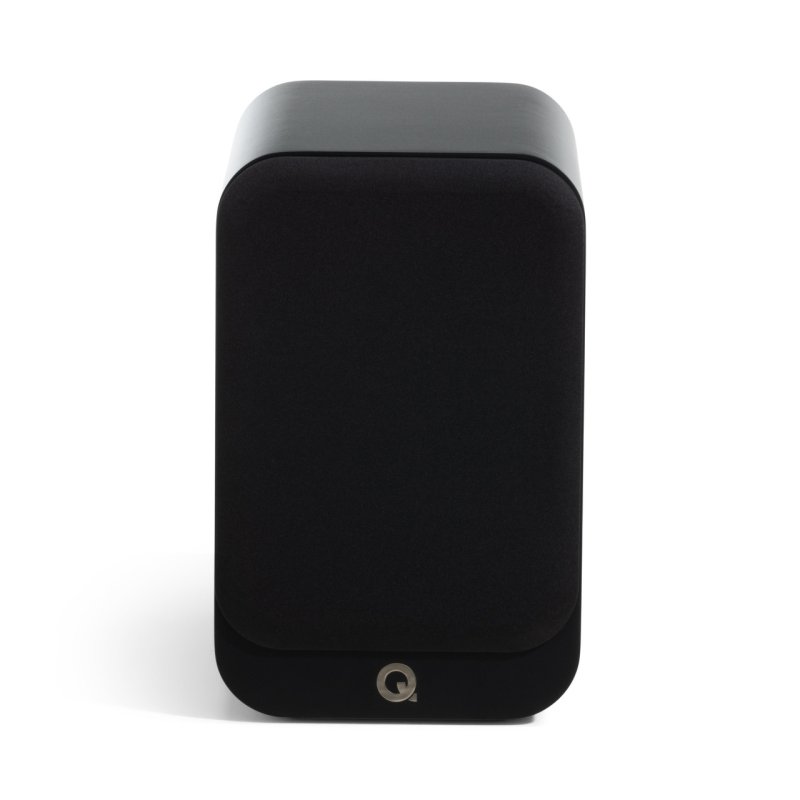

Finished in Satin Black with satin metallic driver trims, the 3020C features a contemporary minimalist aesthetic. Magnetic grilles are included for a clean, flush appearance when fitted.
Performance and Partnering
With a sensitivity of 87.0 dB (1m, 2.83V at 1 kHz) and a nominal impedance of 6Ī© (minimum 3.7Ī©), the 3020C is best partnered with amplifiers rated between 25 and 90 watts per channel. The frequency response extends from 60 Hz to 30 kHz (ā6 dB), providing solid low-end reach for a speaker of this size.
