KEF Ci130QSFL Uni-Q Flush Mount Square In-Ceiling Speaker

KEF
Product ID: 3092
  • 5.25-inch (130mm) Uni-Q in-ceiling speaker with square flush-mount grille
  • Wide 130-degree dispersion for even coverage; 45Hz - 34kHz frequency response
  • Simple dog-leg clamp installation; suits ceilings 8 - 31mm thick
Read full description
£429.00
Delivery: Free
Condition: New (More info)
Available to order (More info)

Videos


Description

The KEF Ci130QSFL brings KEF's renowned Uni-Q driver technology to your ceiling in a discreet square flush-mount format. Part of KEF's Ci standard architectural series, this 5.25-inch in-ceiling speaker delivers natural, room-filling sound across a wide 130-degree dispersion angle, making it an ideal choice for whole-home audio, background music systems, and home cinema surround applications.

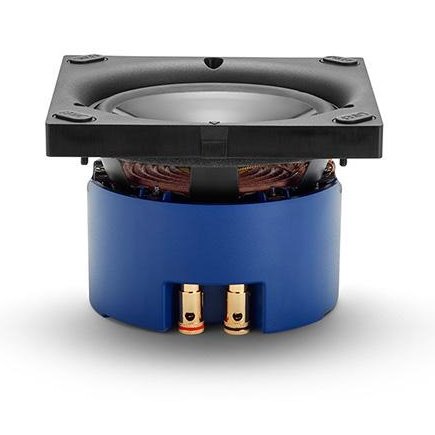

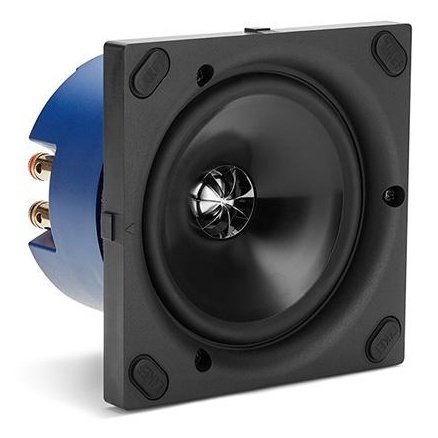

At the heart of the Ci130QSFL is KEF's patented Uni-Q driver array, which positions the 19mm aluminium dome tweeter concentrically within the 130mm mid/bass cone. This coaxial arrangement allows both drivers to radiate from a single acoustic point, producing a wide, even sound field with consistent tonal balance throughout the room -- regardless of listening position. The result is clear, detailed audio whether you are directly beneath the speaker or at the edges of the room.

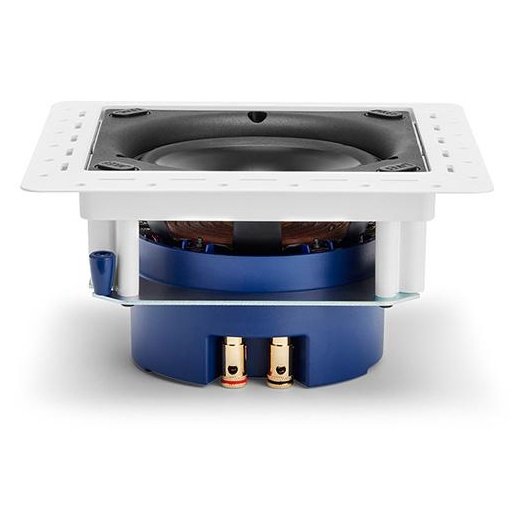

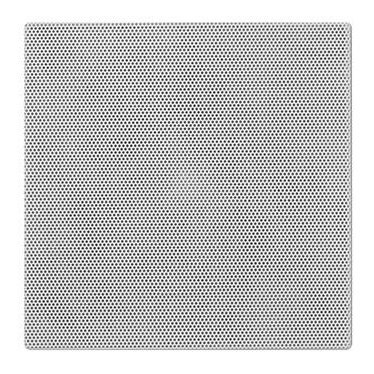

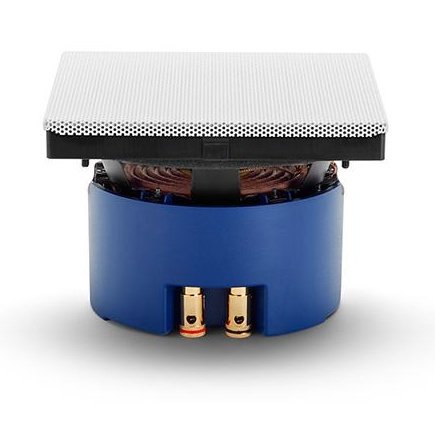

The speaker features a low-profile square grille that sits flush with the ceiling, maintaining a clean aesthetic in any room and offering a contemporary geometric finish that can complement modern interior design. The spring-loaded dog-leg clamp system simplifies installation, securing the speaker to ceilings between 8mm and 31mm thick without the need for additional fixings. A paintable white grille and trim ring allow the Ci130QSFL to blend seamlessly into your decor.

With a sensitivity of 87dB and a recommended amplifier power range of 10 to 100W, the Ci130QSFL is easy to drive from virtually any multi-room amplifier or AV receiver. Its open-back design allows for extended bass reproduction in a typical ceiling cavity, covering a frequency range of 45Hz to 34kHz (plus or minus 6dB open-backed). A built-in high-pass filter recommendation of 50Hz ensures compatibility with subwoofer-based systems.

Whether you are building a distributed audio network throughout your home or adding surround channels to a dedicated cinema room, the KEF Ci130QSFL delivers the performance and refinement you would expect from the KEF name in a compact, unobtrusive package. The square grille format is also available as a round version (KEF Ci130QRFL) for those who prefer a traditional circular ceiling speaker aesthetic.


Specification

Drive UnitsLF: 130mm (5.25in.) Uni-Q; HF: 19mm (0.75in.) aluminium dome
Frequency Response (±6dB, open-backed)45Hz - 34kHz
Frequency Range (-10dB)38Hz - 30kHz
Nominal Impedance8 Ohms
Sensitivity87dB (2.83V/1m)
Max SPL103dB
Nominal Coverage Angle130 degrees
Crossover Frequency3.8kHz
Recommended Amplifier Power10 - 100W
Recommended High-Pass Filter50Hz
External Dimensions (W x H x D)200.5mm x 200.5mm x 103.6mm (7.9in. x 7.9in. x 4.08in.)
Cut-Out Dimensions158mm x 158mm (6.22in. x 6.22in.)
Mounting Depth From Surface101mm (3.98in.)
Ceiling Thickness (min/max)8mm - 31mm (0.315in. - 1.220in.)
Net Weight1.6kg (3.53lbs.)
Grille ShapeSquare
Also Available AsRound version (KEF Ci130QRFL)
