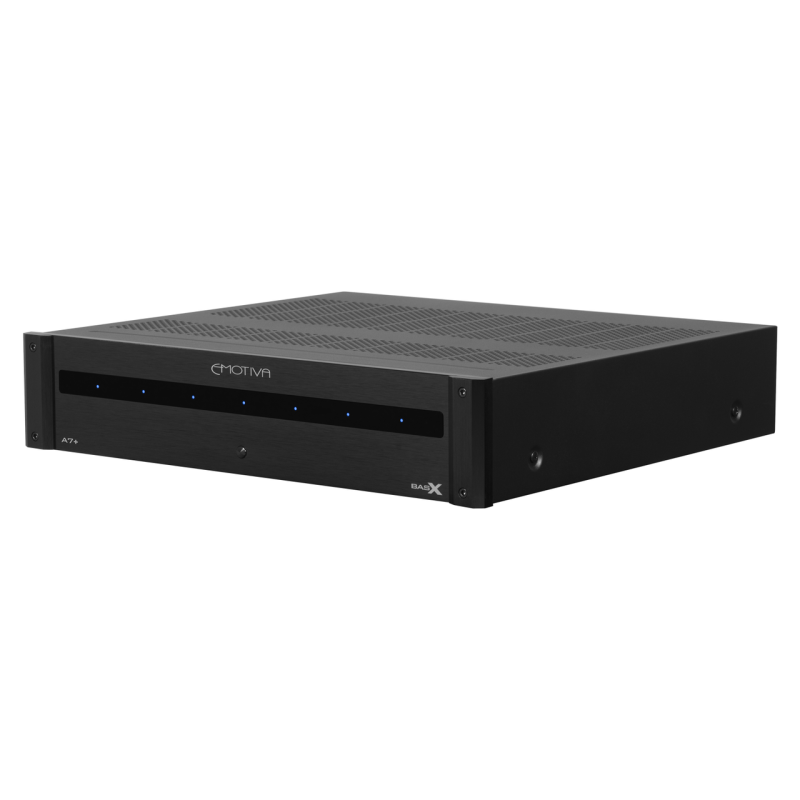

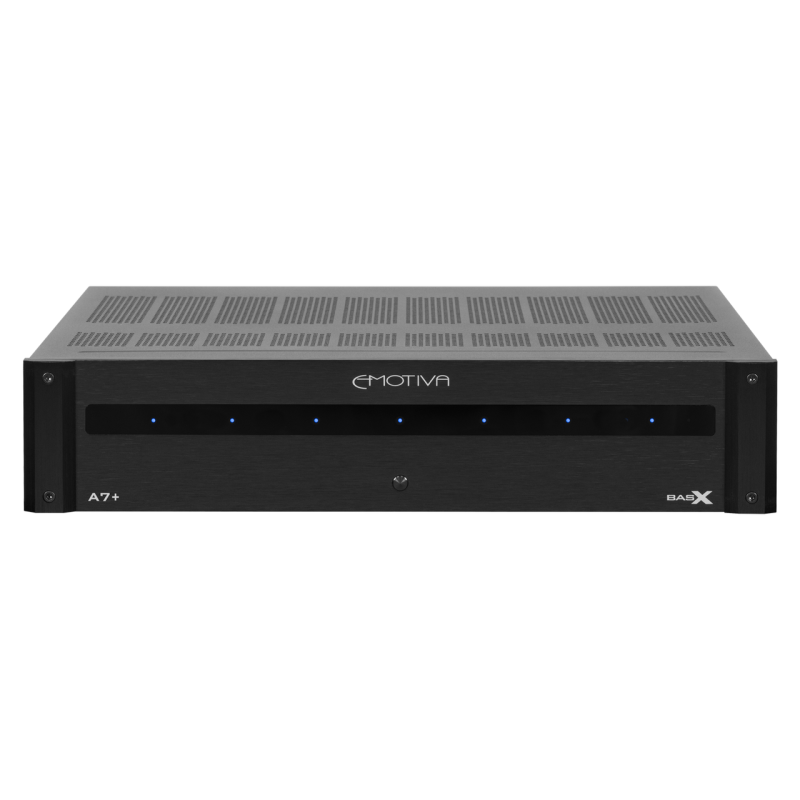

The Emotiva BasX A7+ is a seven-channel Class A/B power amplifier from Emotiva's BasX range, designed to serve as a dedicated amplification stage for home cinema systems. The BasX series sits at the accessible end of Emotiva's amplifier portfolio, offering substantial build quality and honest power delivery at a competitive price point. The A7+ is the multi-channel companion to the BasX A2+ stereo power amplifier, sharing the same "Plus" upgrade that introduces balanced XLR inputs alongside the standard unbalanced RCA connections on every channel. With seven channels driven simultaneously, it is suited to driving full 7.1 or 7.2 home cinema speaker systems from a single chassis, freeing an AV receiver's internal amplifier stages from power-hungry work and allowing it to focus on decoding and processing duties.
Class A/B Topology and Power Supply

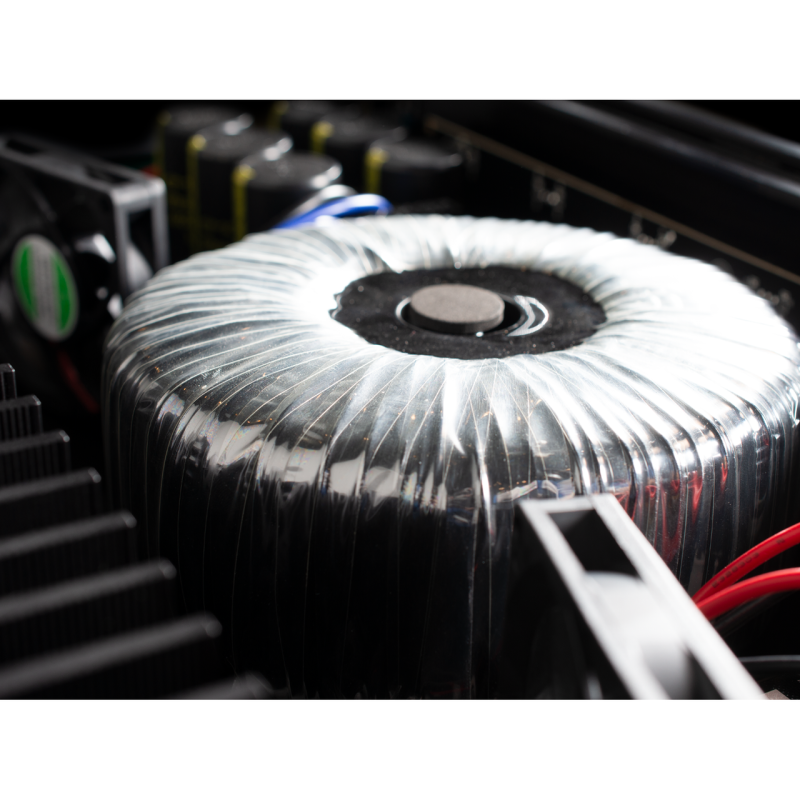

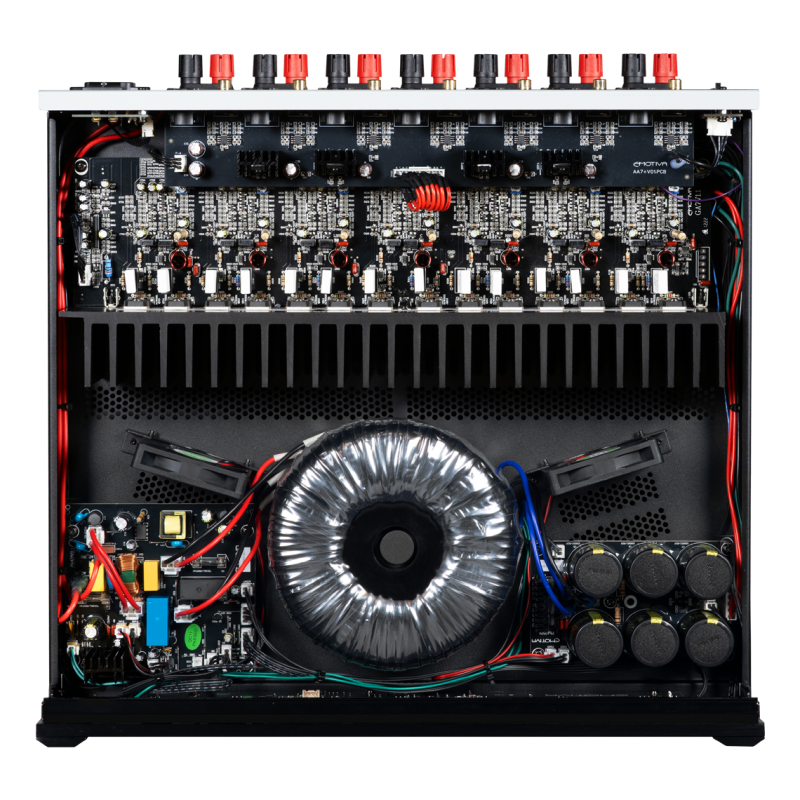

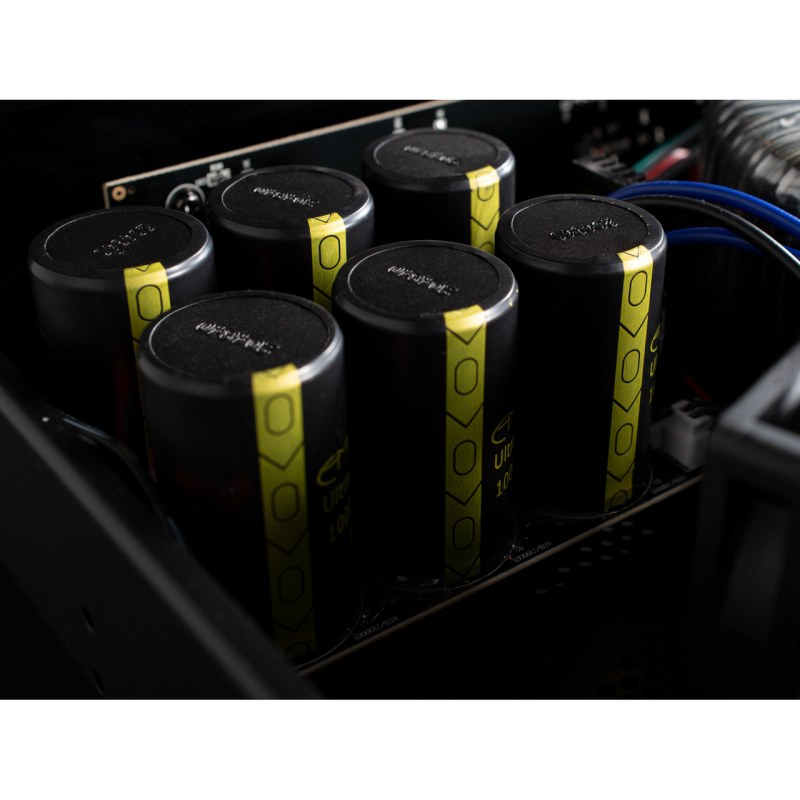

Each of the seven channels is built around a Class A/B output stage, a topology that balances efficiency with audio quality by operating in Class A at low signal levels before transitioning to Class B. The amplifier is fed by a heavy-duty linear power supply built around an oversized toroidal transformer. Toroidal designs are preferred in audio applications for their low radiated magnetic field, compact footprint, and minimal mechanical hum relative to conventional EI-core transformers. The combination of a generous transformer with a properly rated reservoir capacitor bank ensures the supply can meet instantaneous current demands across all seven channels without voltage sag.
Balanced and Unbalanced Inputs

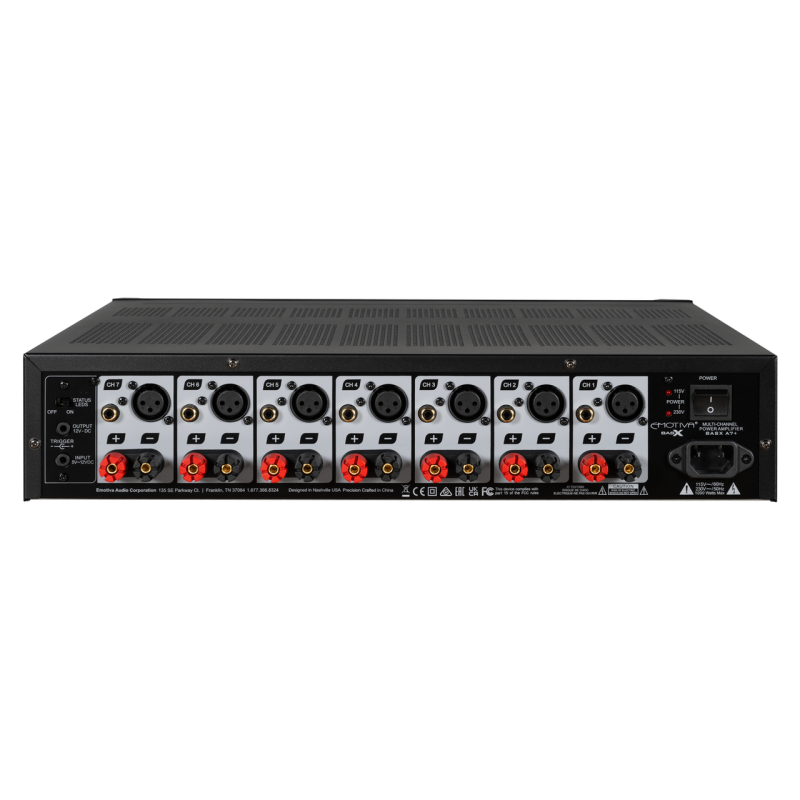

The key distinction of the A7+ over the standard BasX A7 is the addition of balanced XLR inputs on every channel, complementing the existing unbalanced RCA inputs. Each of the seven channels therefore accepts either connection type, giving flexibility when integrating with AV processors, pre-pro units, or AV receivers that carry balanced pre-out stages. Balanced connections carry audio on two conductors with opposite polarity; any noise picked up equally by both conductors is cancelled at the differential input stage, making them particularly valuable over longer cable runs in equipment racks where interference can be a concern. Input impedance is 27kΩ.
Output Stages and Speaker Connectivity

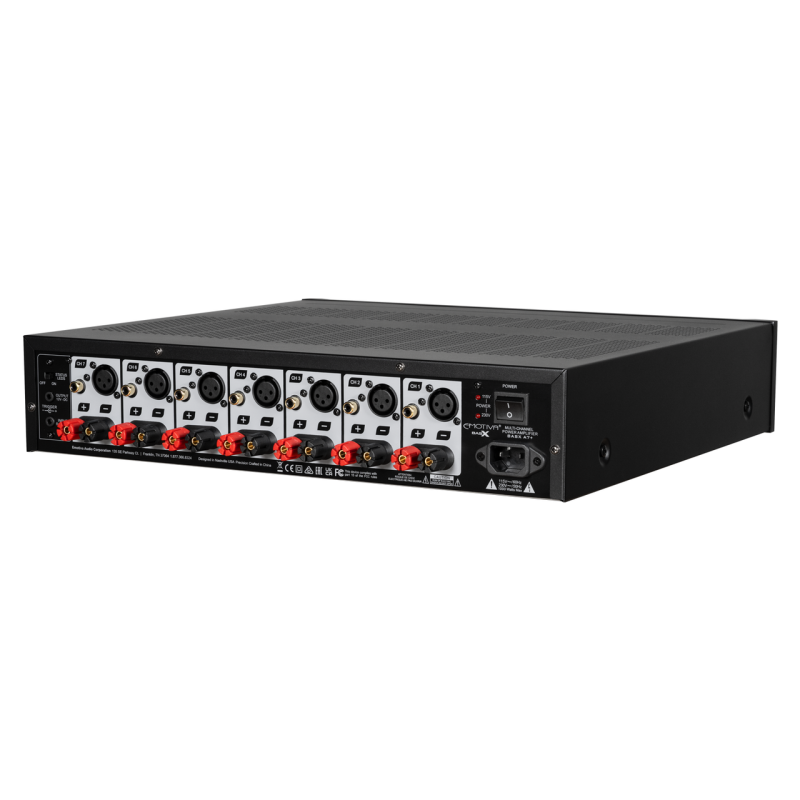

Each channel's output is terminated via audiophile-grade five-way binding posts, accepting banana plugs, spade connectors, or bare wire. The amplifier is rated to drive 4Ω or 8Ω nominal loads. A damping factor of greater than 500 at 8Ω indicates a very low output impedance relative to the load, which helps the amplifier maintain tight control over bass driver movement and contributes to accurate low-frequency reproduction.
Performance
With all seven channels driven simultaneously, the A7+ delivers 90 watts RMS per channel into 8Ω from 20Hz to 20kHz, and 125 watts RMS per channel into 4Ω at 1kHz. The signal-to-noise ratio exceeds 112dB (A-weighted, ref rated power), ensuring that the amplifier's own noise floor is well below programme material. Broad band frequency response extends from 5Hz to 80kHz (+0/–1.8dB).
Protection and Control
A comprehensive protection circuit monitors for excessive operating temperature, shorted speaker connections, and ground faults, shutting down the output stages before damage can occur. A 12V trigger input (accepting 5–12V AC or DC) allows the A7+ to be switched on automatically by an AV receiver or processor, with a corresponding 12V DC trigger output at 120mA capacity available to chain further equipment.
Construction

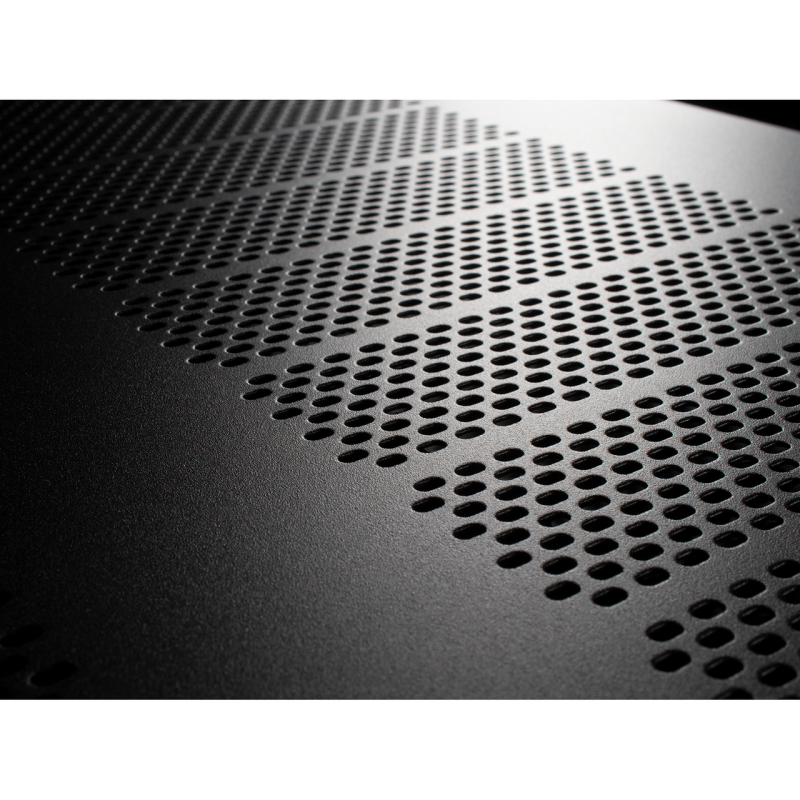

The chassis is constructed from steel with a brushed aluminium faceplate, providing rigidity and a degree of electromagnetic shielding for the internal circuitry. The unit occupies 43.2cm wide × 10.8cm high × 39.4cm deep (17" × 4¼" × 15½", not including rear connectors), and weighs 12.7kg (28 lbs).
