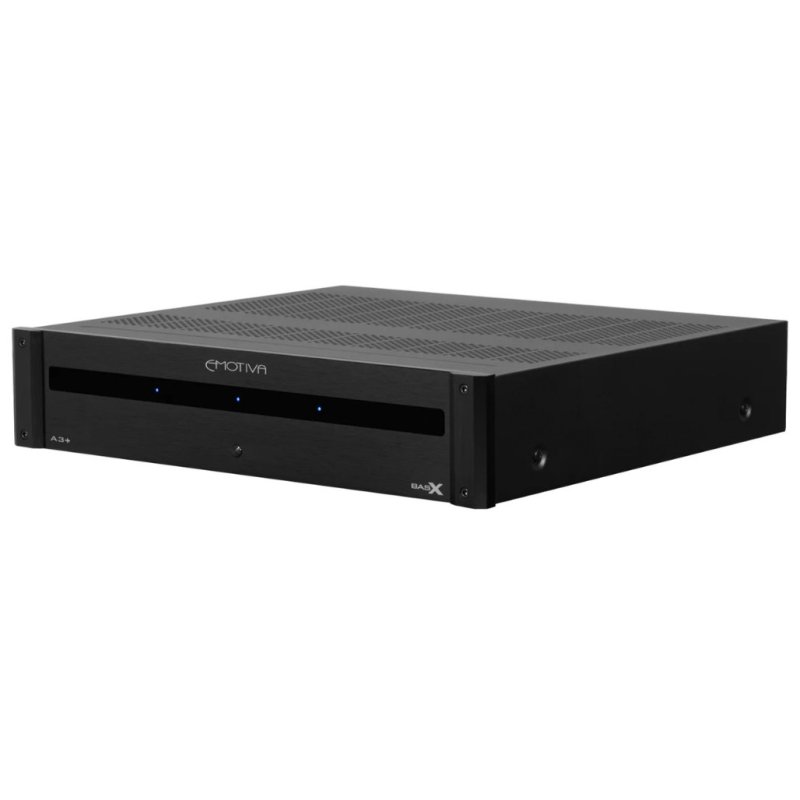

Emotiva BasX A3+ Three-Channel Power Amplifier
Emotiva BasX A3+ Three-Channel Power Amplifier

Emotiva BasX A3+ Three-Channel Power Amplifier

SKU:
BASXA3-M
SKU:
BASXA3-M

Guaranteed In Stock -
Stock/Delivery Info

Best trade-in valuations available

Emotiva BasX A3+ is the latest version of this excellent three-channel power amp with a class A/B output stage that is designed to deliver a smooth, accurate and detailed audio with lots of power and natural imaging.The BasX A3+ is built with high-class materials and is fitted with Emotiva’s very best technology to produce a outstanding performance.
£749.00
Brand:
Emotiva
Availability:In Stock

Other Items You May Like

Emotiva BasX A3+ banner image

BasX A3+ Amplifier

Overview

The Emotiva BasX A3+ is a high-performance three-channel power amplifier designed to deliver clean, powerful and transparent sound for home cinema and high-fidelity systems. With a robust linear power supply, high-current output stages and advanced thermal protection, the A3+ provides exceptional control and dynamic capability across demanding loudspeakers.

High-current, low-noise design

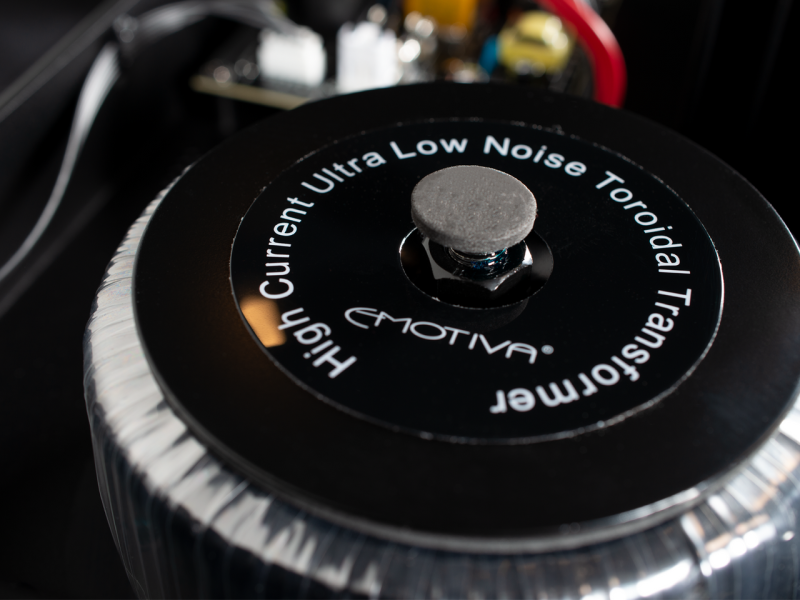

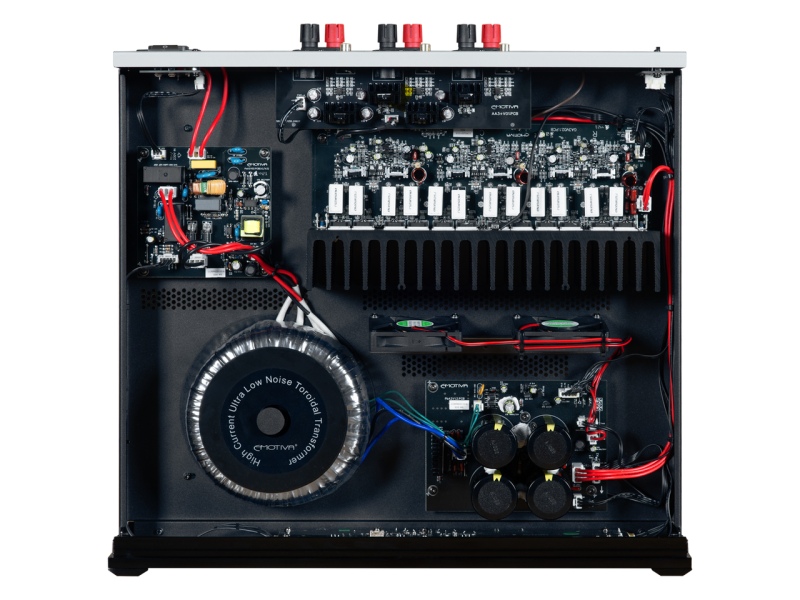

The BasX A3+ features a heavy-duty toroidal transformer, optimised Class A/B amplifier modules and short signal paths for low distortion and excellent channel separation. The result is wide-bandwidth, highly transparent performance with impressive headroom.

Engineered for reliability

The A3+ includes output protection, thermal monitoring and carefully controlled startup sequencing. Rugged steel chassis construction ensures long-term durability while reducing mechanical resonance.

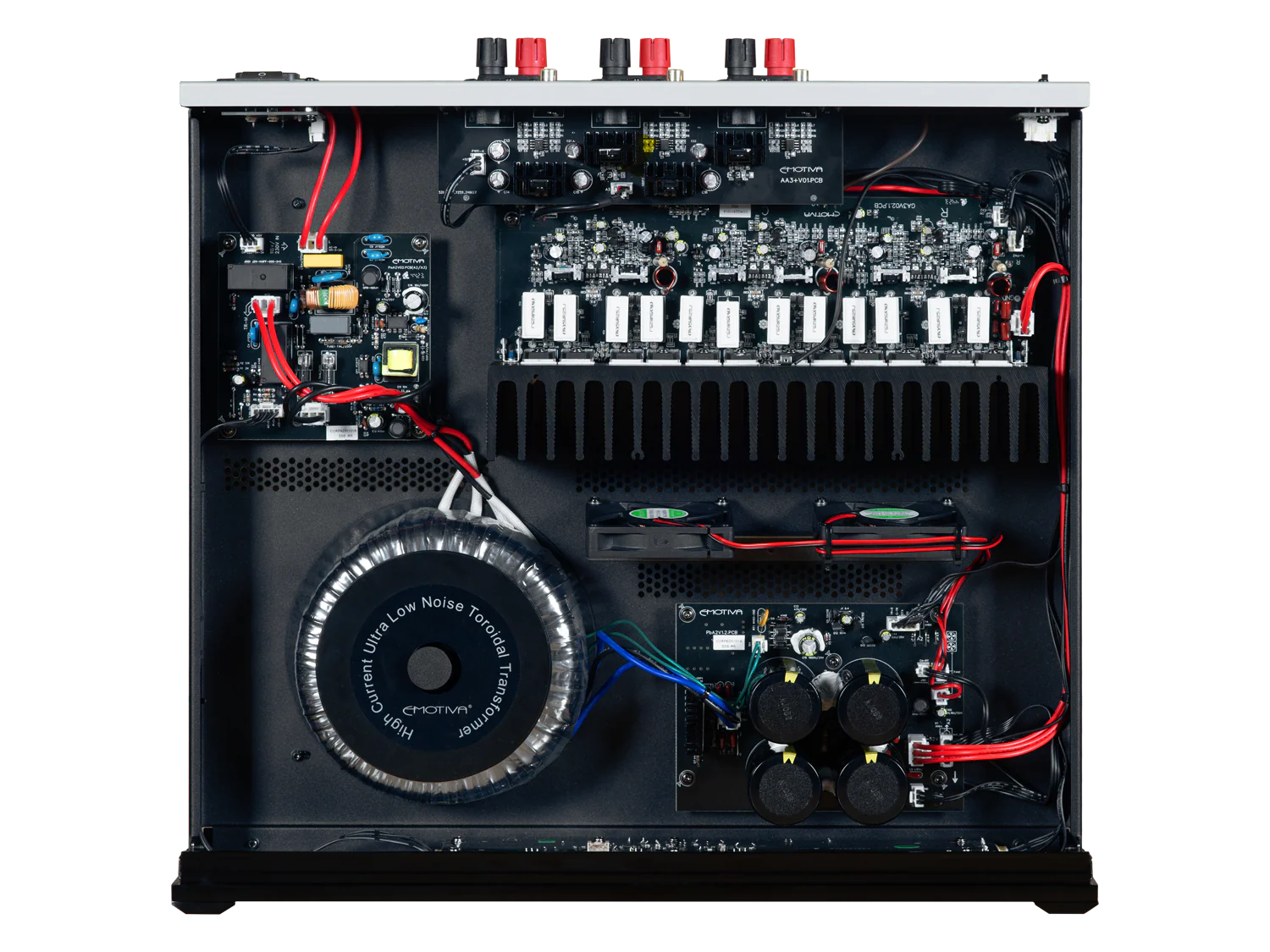

Emotiva BasX A3+ top view

Specifications

  • Power Output (8 Ohms): 140W RMS per channel, all channels driven
  • Power Output (4 Ohms): 210W RMS per channel, all channels driven
  • Amplifier Class: High-current, short-signal-path Class A/B
  • Power Supply: Heavy-duty linear supply with large toroidal transformer
  • THD+N: < 0.02%
  • Frequency Response: 10 Hz – 80 kHz (+0/–2 dB)
  • SNR: > 115 dB (A-weighted)
  • Damping Factor: > 300

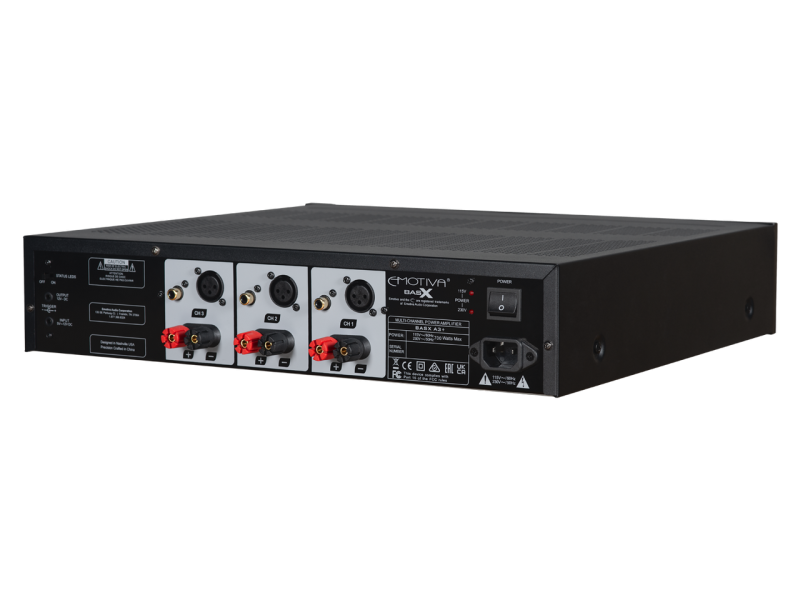

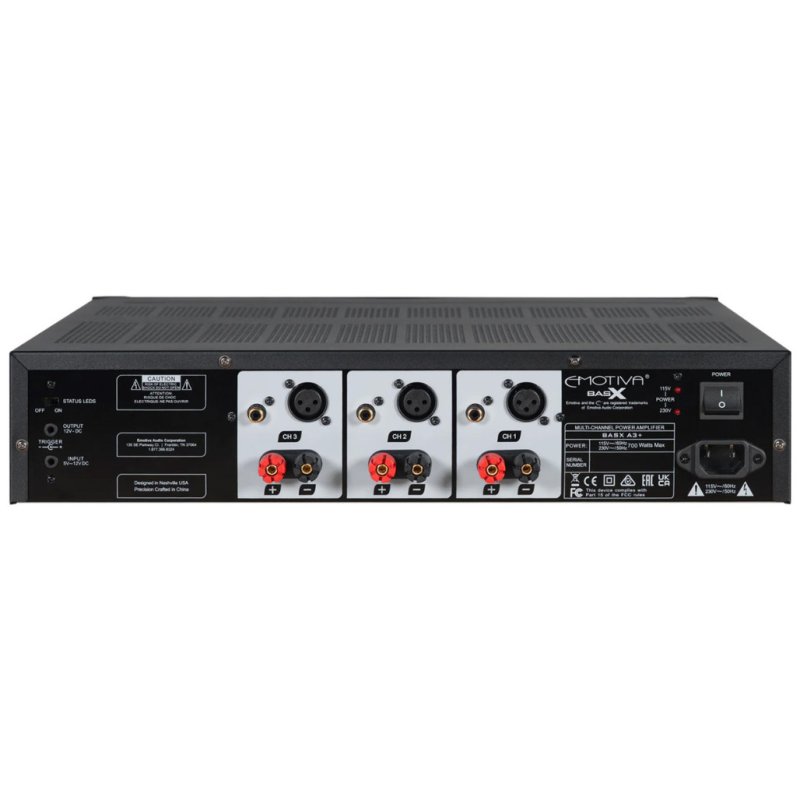

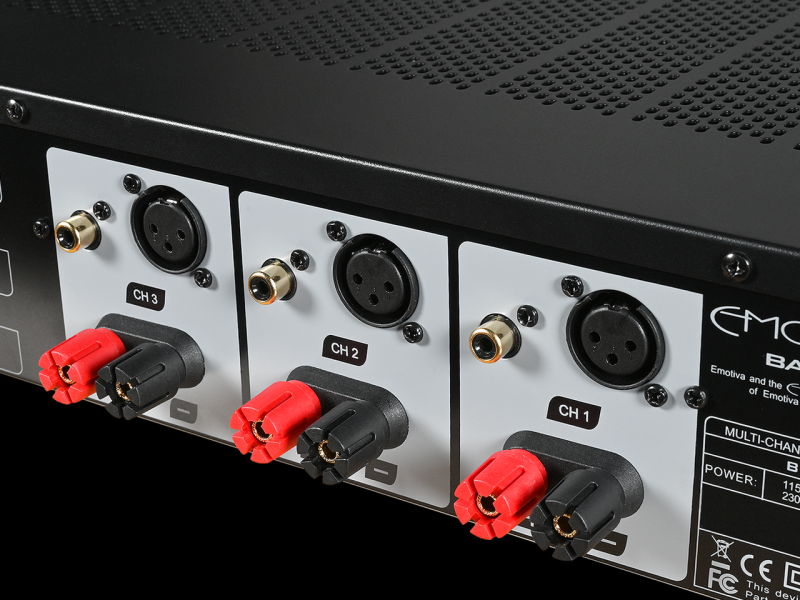

  • Inputs: 3 × RCA unbalanced, 3 × XLR balanced
  • Input Impedance: 27 kΩ (balanced), 47 kΩ (unbalanced)
  • Triggers: 12V trigger in/out
  • Speaker Outputs: 5-way binding posts
  • Protection: Soft-start, DC protection, thermal shutdown, fault monitoring
  • Power Consumption: 750W max
  • Dimensions (W × H × D): 432 × 134 × 394 mm
  • Weight: 14.5 kg
  • Finish: Black brushed metal
  • Width: 43.20 (cm)
  • Height: 10.20 (cm)
  • Depth: 39.40 (cm)
  • Finish: Brushed Metal
  • Channels: 3
  • Amplifier Class: A/B
  • Series: BasX
