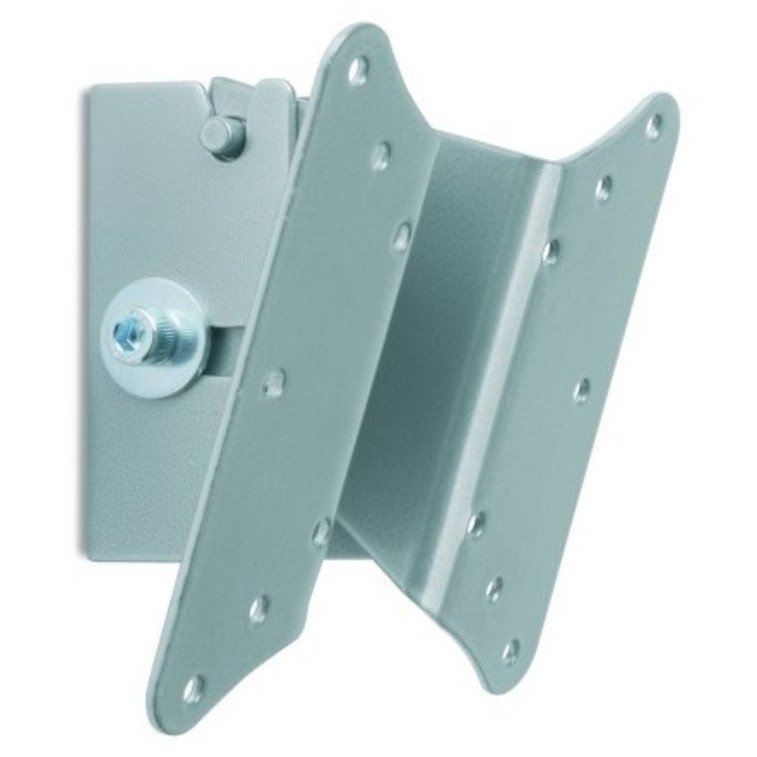

The Cinemax C2 LCD is a compact tilt wall bracket designed for flat-panel displays with VESA 75mm or 100mm mounting patterns. It supports screens weighing up to 30kg and mounts the display flat to the wall with a low-profile depth of just 66mm, keeping the installation neat and unobtrusive.
Tilt Adjustment
The bracket provides adjustable tilt of 5° upward and 20° downward, allowing you to angle the screen for comfortable viewing whether the display is mounted at seated eye level or higher on the wall. This range of movement helps reduce glare and ensures a clear sightline from your preferred viewing position.
Installation
The C2 LCD features a straightforward wall-plate design with a compact 115mm × 115mm footprint. Its universal VESA compatibility (75mm and 100mm hole patterns) makes it suitable for a wide range of monitors and smaller televisions. The robust construction handles displays up to 30kg with confidence.
| Bracket Type | Flat-to-wall tilt |
|---|
| VESA Compatibility | 75mm, 100mm |
|---|
| Maximum Load | 30kg |
|---|
| Tilt Range | 5° up / 20° down |
|---|
| Bracket Depth | 66mm |
|---|
| Bracket Width | 115mm |
|---|
| Bracket Height | 115mm |
|---|
