The Prime Pinnacle is the flagship floorstanding speaker within SVS's Prime series — a three-way tower designed to deliver full-range audiophile performance. At the core of its design is a dedicated midrange driver, a trio of bass drivers each housed in its own ported enclosure within the cabinet, and a proprietary SoundMatch 3-way crossover. This approach to driver integration is considerably more sophisticated than typical floorstanders at this price point, where a single woofer and a two-way crossover is the norm.
Driver Array

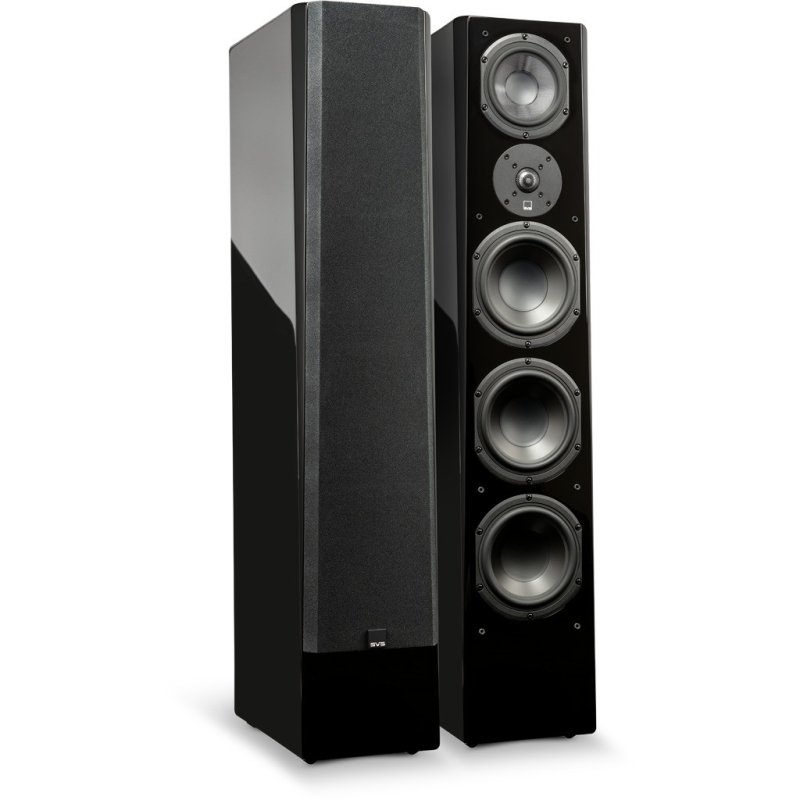

The Prime Pinnacle employs a 1-inch aluminium dome tweeter, a 5.25-inch dedicated midrange driver, and three 6.5-inch woofers. Each of the three woofers occupies its own separate ported enclosure within the cabinet — a configuration that prevents bass frequencies from coupling into the midrange chamber and allows each driver to operate within a controlled acoustic environment. The overall cabinet consequently contains four acoustically tuned internal chambers.
Cabinet & Ports
The cabinet is triple ported, with the port exits located on the rear panel. This loading strategy extends low-frequency output down to 29Hz whilst preserving the separate internal chamber arrangement across the woofer array. The SoundMatch 3-way crossover integrates the three driver sections, developed alongside the driver complement to achieve seamless handover across the frequency range.

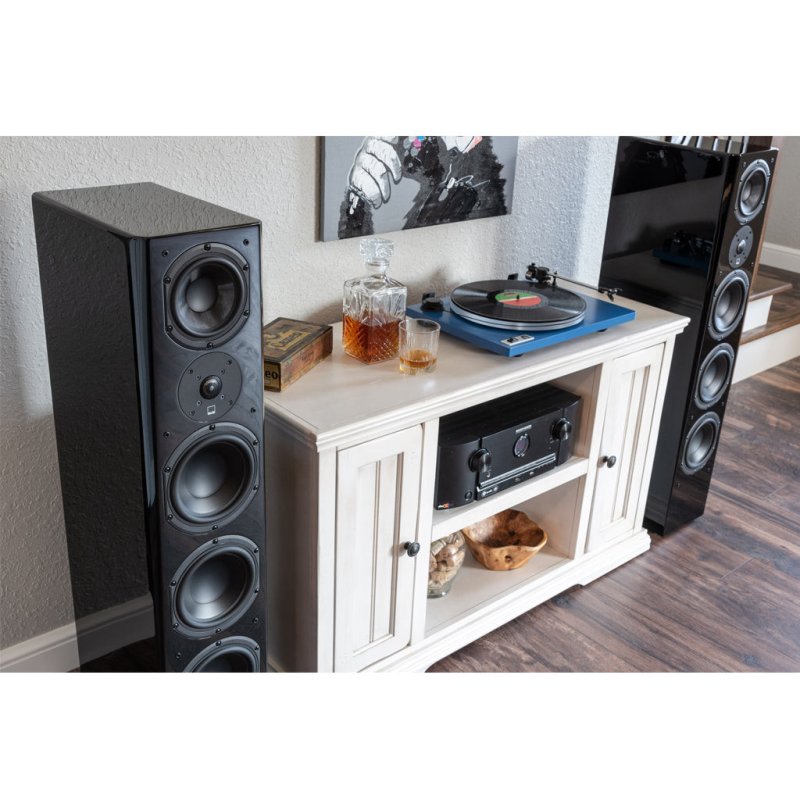

Finishes

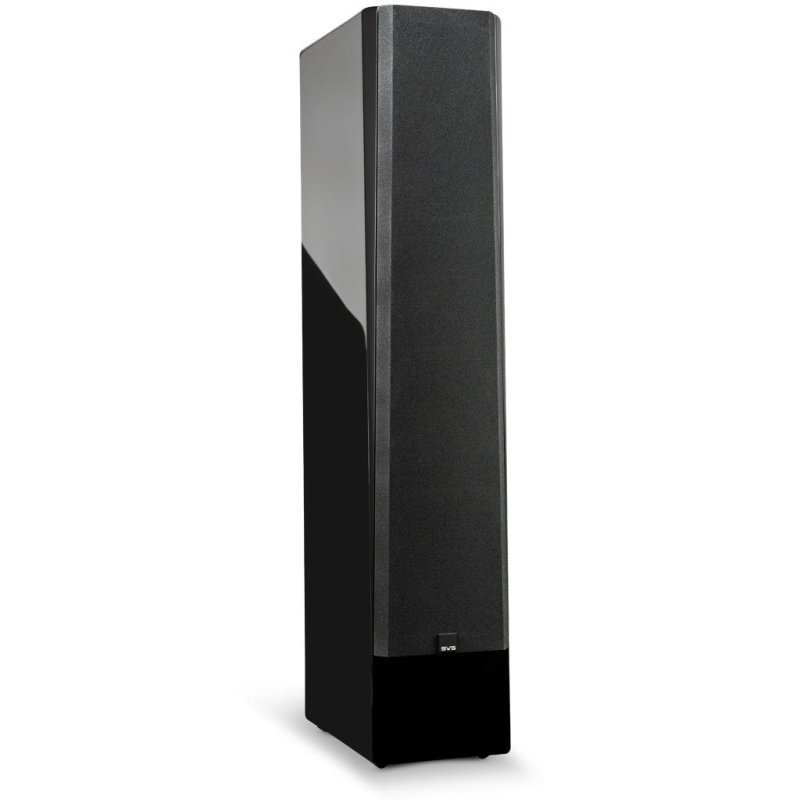

The Prime Pinnacle is available in Piano Gloss Black and Premium Black Ash. This listing is for the Piano Gloss Black finish, featuring a high-gloss lacquered cabinet surface.
| Configuration | 3-way, floorstanding tower |
|---|
| Tweeter | 1-inch aluminium dome |
|---|
| Midrange | 5.25-inch |
|---|
| Woofers | Three × 6.5-inch (each in separate ported enclosure) |
|---|
| Crossover | SoundMatch 3-way |
|---|
| Cabinet loading | Triple ported |
|---|
| Frequency response | 29Hz–25kHz |
|---|
| Weight | 21kg (46.3 lbs) |
|---|
| Also Available As | Premium Black Ash (SVS-PRIME-PINN-BASH) |
|---|
