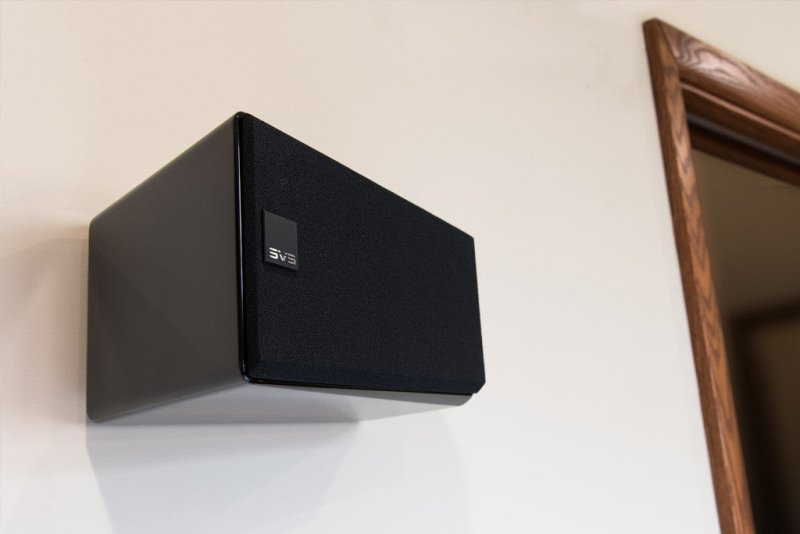

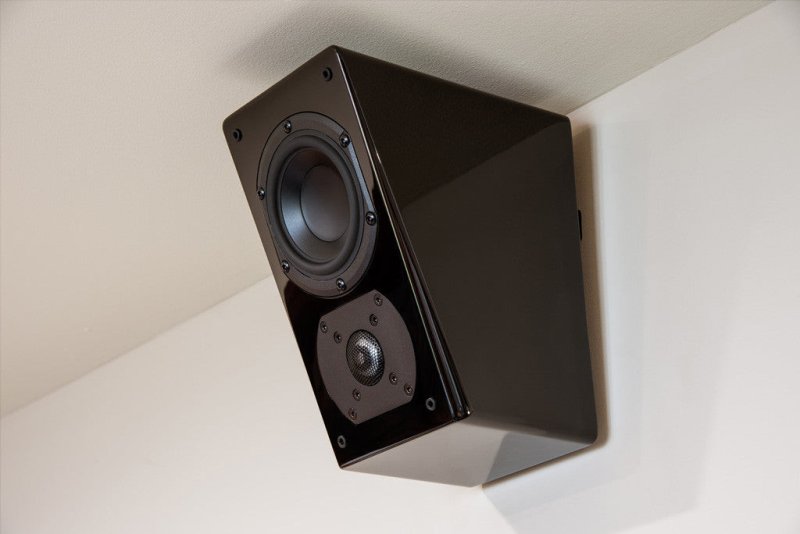

The SVS Prime Elevation is the world's most versatile high-performance home theatre speaker. Acclaimed for delivering exceptional Dolby Atmos, DTS:X and Auro-3D immersive audio, the Prime Elevation's precisely angled front baffle and highly adaptable Multi-Angle Wall Bracket make it equally at home as a height effects speaker, front LCR, surround, or rear channel. Whether wall-mounted at ear height, ceiling-mounted for overhead effects, or used freestanding on a shelf, a single speaker design covers virtually every position in a surround sound system.
At its heart, the Prime Elevation combines a 1" aluminium dome tweeter with a 4.5" mid-woofer, tuned to SVS's exacting acoustic standards. The angled front baffle is precisely optimised so that whether the speaker fires directly or from a wall/ceiling position, the high-frequency dispersion pattern delivers consistent, enveloping sound. A 2.5 kHz crossover (12 dB/octave slopes) ensures seamless integration between drivers, while the 8-ohm nominal impedance and 87 dB sensitivity make it straightforward to drive with any AV receiver rated from 20 to 150 watts.
The included Multi-Angle Wall Bracket (patent pending) adjusts to four distinct mounting positions, enabling the speaker to be angled upward, downward, left, or right to optimise coverage for any room geometry. A ceiling mount insert is also included. Gold-plated five-way binding posts accept bare wire, spade connectors, or banana plugs. The Piano Gloss Black finish delivers a premium lacquered appearance that suits high-end AV installations and dedicated home cinema rooms.
Key Features
- Dolby Atmos, DTS:X and Auro-3D certified height and surround speaker
- 1" aluminium dome tweeter and 4.5" mid-woofer with angled front baffle
- 2.5 kHz crossover (12 dB/octave) for smooth driver integration
- Multi-Angle Wall Bracket included — mounts in four positions for maximum placement flexibility
- Ceiling mount insert included
- Gold-plated five-way binding posts
- Compact cabinet ideal for height, surround, LCR, and rear channel positions

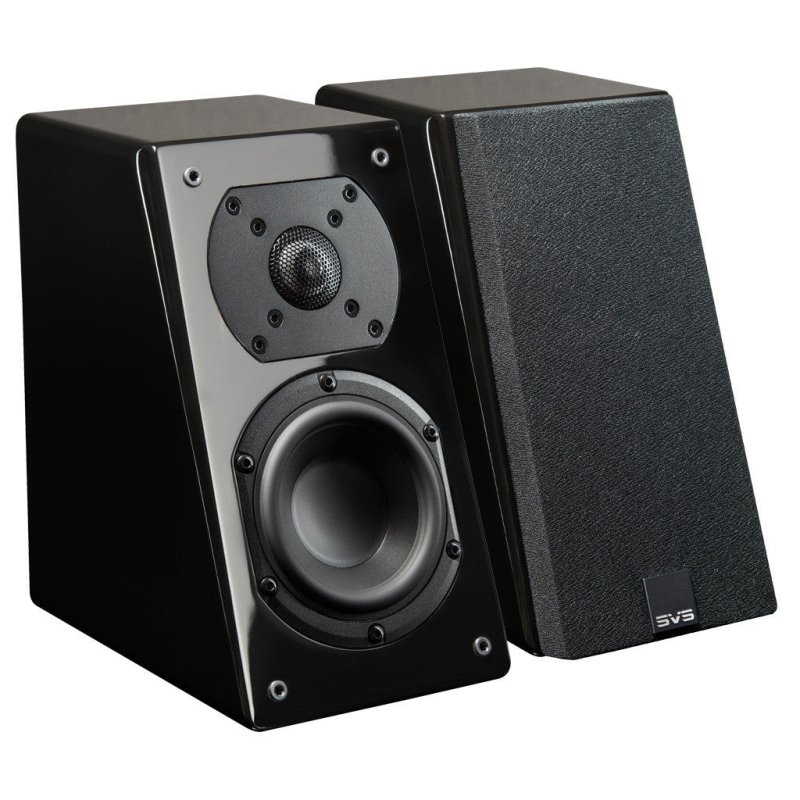

- Sold as a pair
Specifications
| Driver Configuration | 2-way |
|---|---|
| Tweeter | 1" aluminium dome |
| Woofer | 4.5" mid-woofer |
| Crossover Frequency | 2.5 kHz (12 dB/octave) |
| Frequency Response | 55 Hz – 25 kHz (±3 dB) |
| Sensitivity | 87 dB (2.83 V @ 1 m, 300–3 kHz) |
| Nominal Impedance | 8 ohms |
| Recommended Amplifier Power | 20–150 W |
| Cabinet Dimensions (H × W × D) | 9.25" × 5.44" × 7.88" (235 × 138 × 200 mm) |
| Overall Dimensions (with bracket) | 9.4" × 5.44" × 8.33" (239 × 138 × 212 mm) |
| Weight (each) | 3.5 kg |
| Finish | Piano Gloss Black |
| Sold As | Pair |
In the Box
- 2 × SVS Prime Elevation Speaker (Piano Gloss Black)
- 2 × Multi-Angle Wall Bracket
- 2 × Ceiling mount insert
- Hardware pack
Warranty
- 5-year manufacturer's warranty
