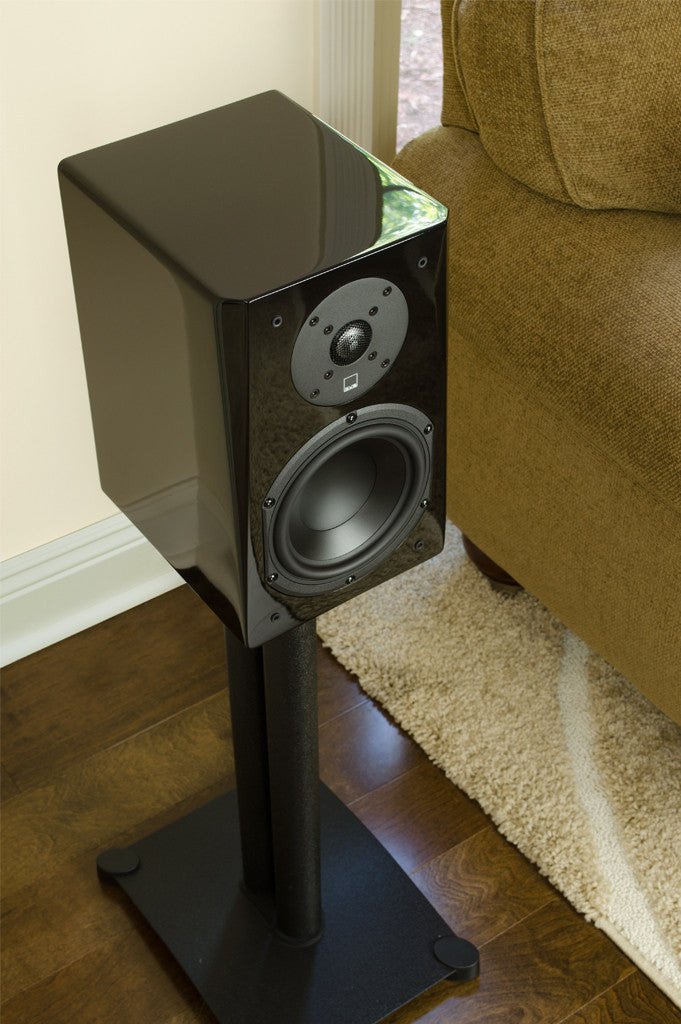

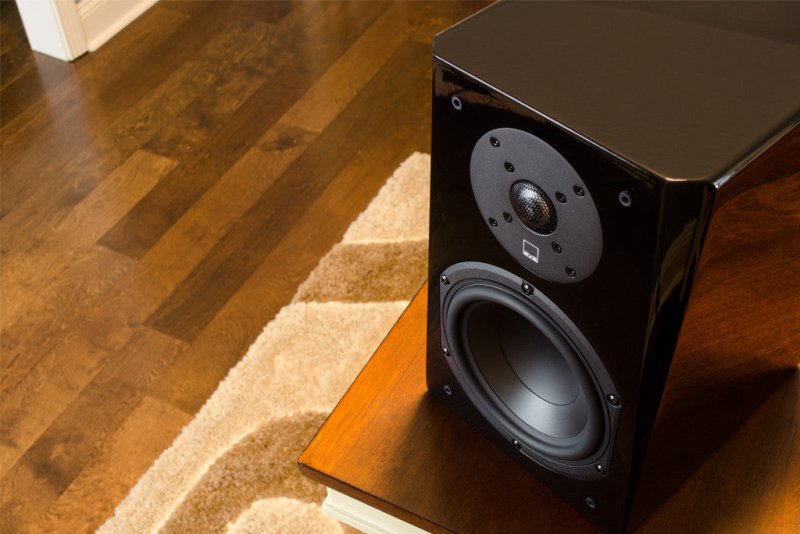

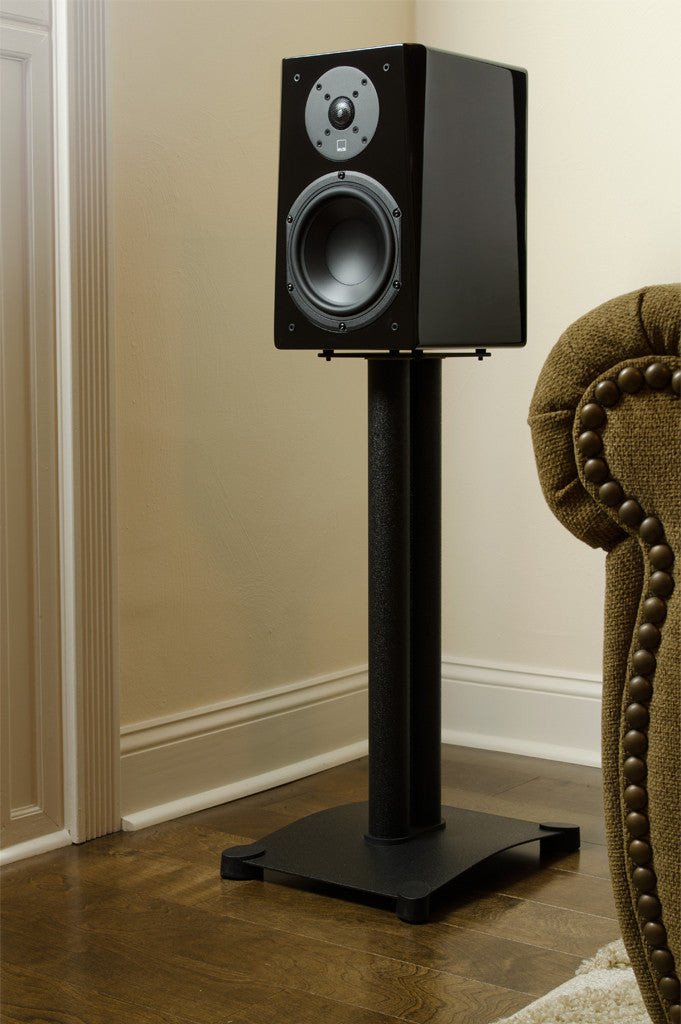

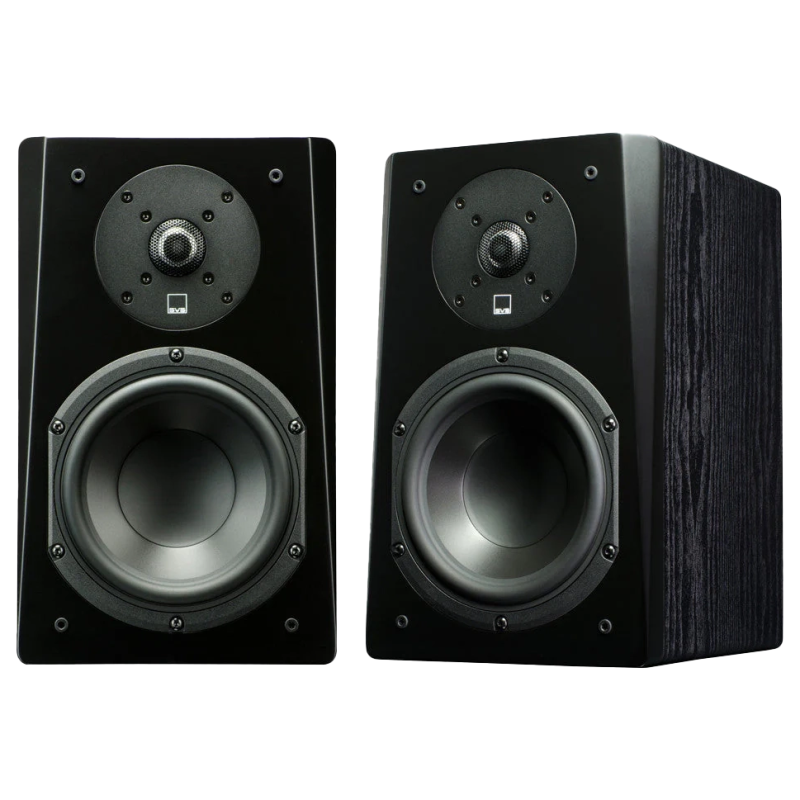

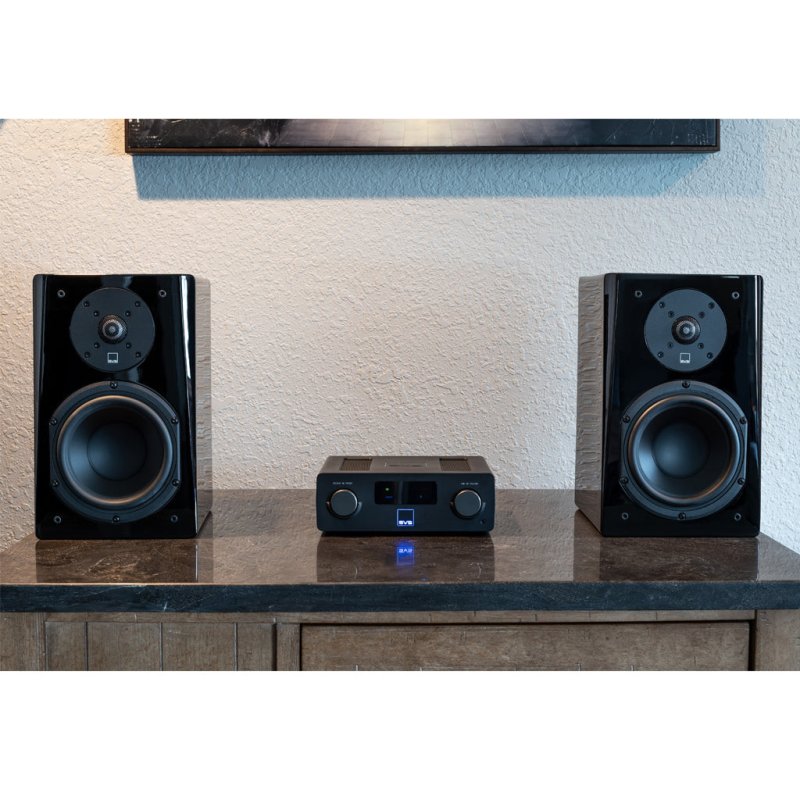

SVS Prime Bookshelf Speaker - Black Ash (Pair)

The SVS Prime Bookshelf sits at the heart of SVS's acclaimed Prime Series — a family of loudspeakers that draws directly on engineering principles developed for the flagship Ultra range. Designed to perform equally as reference stereo monitors or high-performance front, centre, or surround channels in a multi-channel system, the Prime Bookshelf brings serious acoustic engineering to a compact two-way cabinet that will integrate on a shelf, bookcase, or dedicated speaker stand.

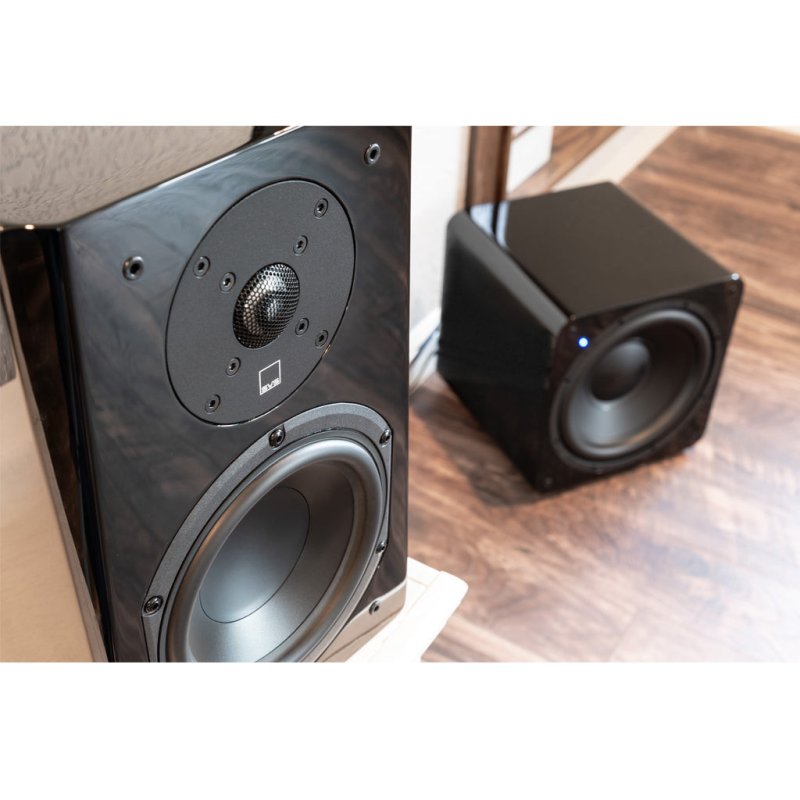

Driver Engineering

The high-frequency unit is a 1-inch aluminium dome tweeter paired with an FEA-optimised diffuser. The diffuser geometry was derived through finite-element analysis to produce what SVS describes as an airy, unveiled presentation — dispersion is controlled rather than allowed to narrow sharply above the crossover point, helping maintain off-axis coherence in a typical listening room.

The 6.5-inch woofer uses a polypropylene cone selected for its combination of stiffness and mass efficiency, which supports pistonic behaviour across its operating band. A long-stroke motor and suspension assembly extend low-frequency output for a cabinet of this size, while an aluminium shorting ring fitted in the motor gap reduces gap inductance, lowering distortion and improving high-frequency extension through the bass unit's own operating range. The cast ABS-fibreglass composite basket maintains precise component alignment and aids thermal transfer from the voice coil former, which is itself vented to minimise air compression during high-excursion operation.

Cabinet & Crossover

The enclosure is a rear-ported design with a 1.7-inch wide-flared port. Internal bracing and cabinet geometry were both modelled using FEA to identify and eliminate panel resonances before any physical prototype was built. The front baffle is chamfered and the drivers are flush-mounted to reduce edge diffraction at high frequencies, improving on-axis response smoothness and maintaining the consistency of the off-axis field.

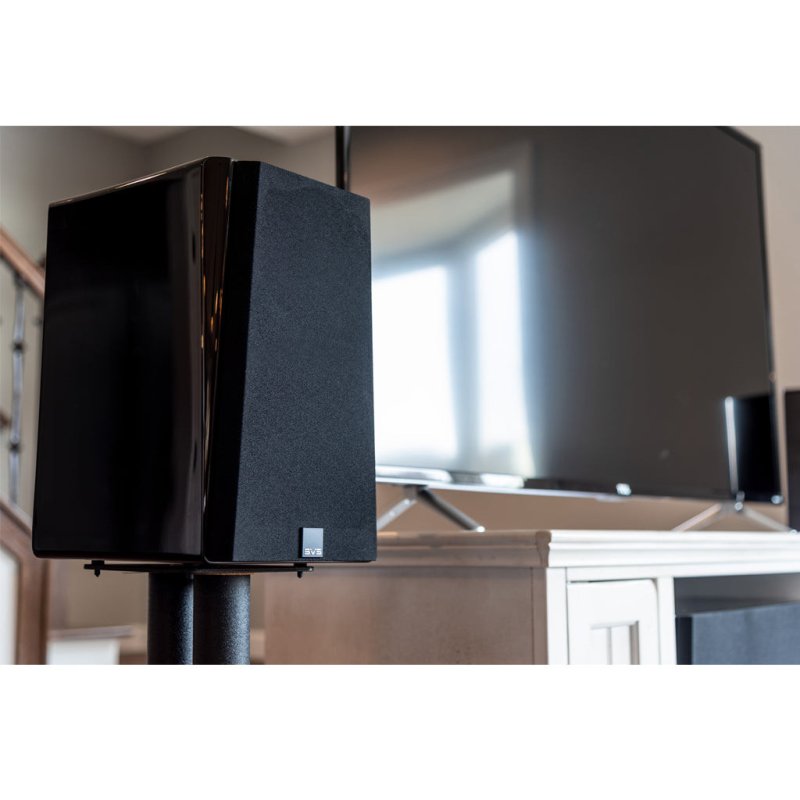

The acoustically transparent cloth grille uses a pin-and-cup retention system and is constructed to minimise diffraction effects when fitted. Elastomer bumper feet are included to decouple the enclosure from the supporting surface.

The two-way SoundMatch crossover network uses premium-grade capacitors, air-core inductors, and heavy-trace printed circuit boards. The crossover point is set at 2.3 kHz with 12 dB/octave slopes, engineered to achieve strong phase coherency and time-domain behaviour across the transition band. Connectivity is via a single set of 5-way binding posts, accepting bare wire, banana plugs, and spade terminals.
