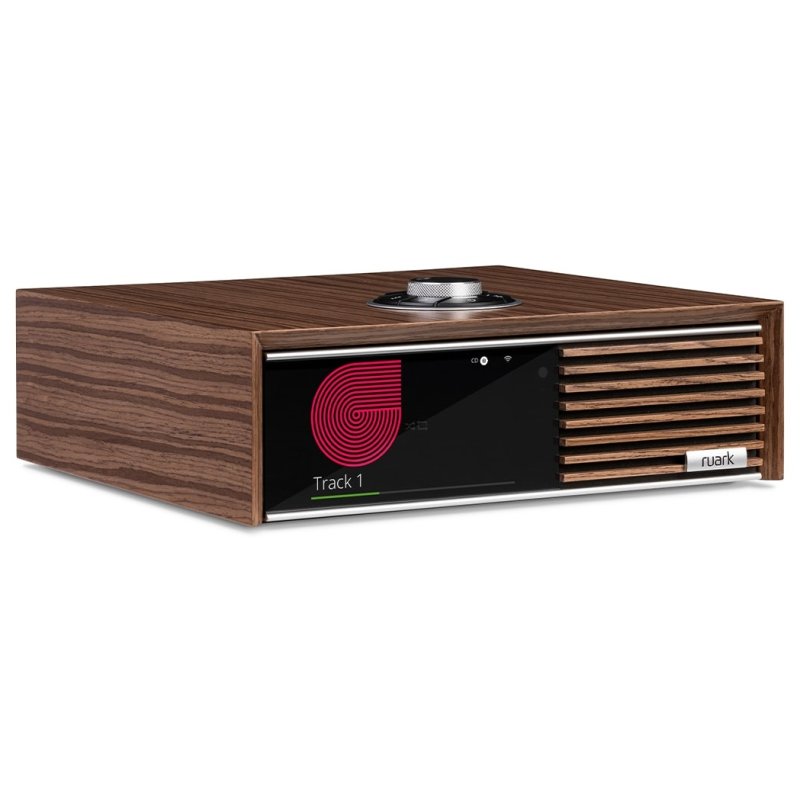

Ruark R610 Music Console Fused Walnut

The R610 Music Console sits at the centre of Ruark’s 100 Series, a range that also includes the R410 all-in-one music system, the R810 radiogram, the Sabre-R bookshelf speakers, and the R-CD100 CD player. Where the R410 integrates its own speakers for a single-box solution and the R810 extends to a full radiogram format, the R610 serves as a dedicated streaming amplifier designed to drive passive loudspeakers, bridging the convenience of modern streaming with the flexibility of a traditional two-box hi-fi system. Inspired by the stereo music consoles of the 1970s, it combines comprehensive source connectivity, Class D amplification, and a high-quality DAC in a compact, hand-finished enclosure.

Amplification and Signal Processing

The R610 delivers 2 × 75 W per channel from its Class D amplifiers, with a frequency response of 22 Hz to 22 kHz (+0/−3 dB). Digital-to-analogue conversion is handled by a Burr-Brown 32-bit 192 kHz DAC, supporting high-resolution audio formats including FLAC, AIFF, ALAC, and WAV at up to 32-bit 192 kHz, MP3 at up to 48 kHz 320 kbps, and AAC at up to 96 kHz 320 kbps. Audio shaping controls include adjustable bass, treble, and subwoofer levels (−6 dB to +6 dB), a switchable Loudness EQ for low-volume listening, and Stereo+ mode for widened stereo imaging.

Streaming, Radio, and Wireless

Network audio connects via dual-band Wi-Fi (802.11 a/b/g/n/ac/ax) or wired Ethernet (RJ45, 10/100 Mbps). Spotify Connect, TIDAL Connect, and Qobuz Connect run natively on the R610, while Apple Music, Amazon Music, BBC Sounds, and Deezer are accessible through Apple AirPlay 2 and Google Cast, both of which also enable multiroom playback across compatible devices in the home. Bluetooth 5.1 with aptX HD, SBC, and AAC codecs provides wireless streaming from portable devices. Built-in radio covers Internet Radio, DAB/DAB+, and FM with RDS across 76.0–108 MHz. A telescopic aerial is included.

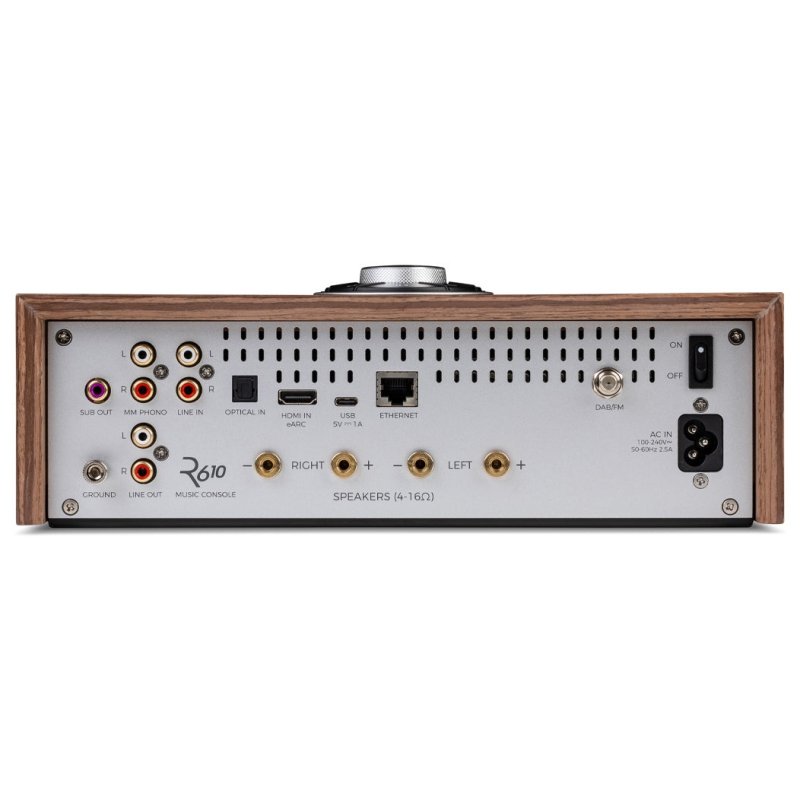

Inputs and Outputs

Analogue inputs include a turntable connection with integrated moving-magnet phono stage (RCA, adjustable gain 2–7 mV) and a switchable stereo line-in (RCA, up to 2.3 Vrms). Digital inputs comprise HDMI ARC/eARC for television audio, an optical input supporting up to 24-bit 96 kHz PCM, and a USB-C 2.0 port for multi-format audio file playback from USB storage (FAT, FAT32, exFAT, NTFS, ext2/3/4) and connection to the optional R-CD100 CD drive. Outputs include direct speaker terminals, a selectable stereo RCA line-out/pre-out, and a mono RCA subwoofer output rated at 2.0 Vrms.

Design and Build

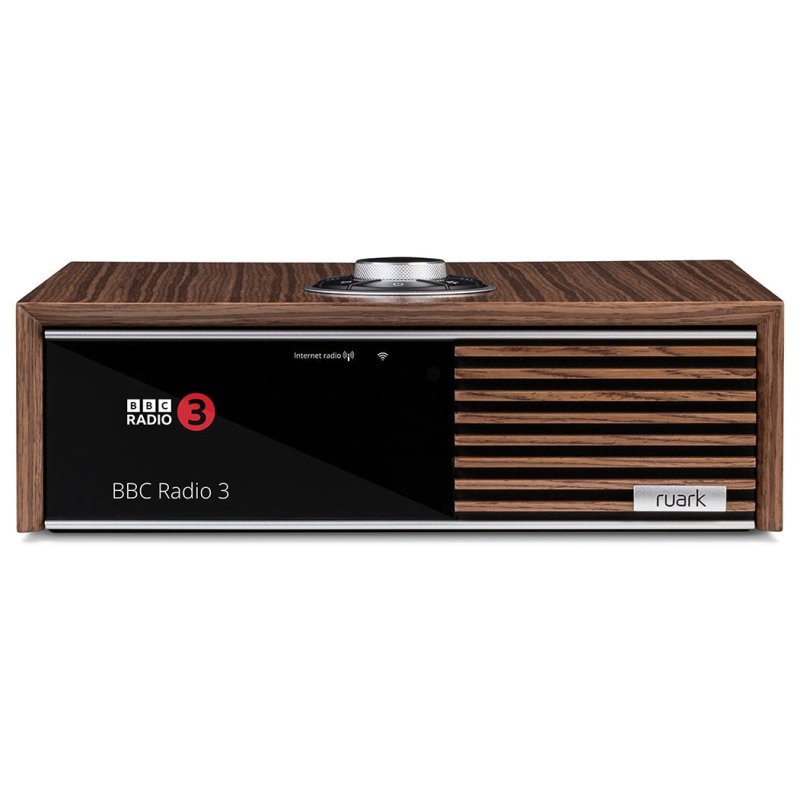

The R610’s cabinet features a fused walnut veneer finish with walnut slat trim, following the 100 Series design language shared across the range. A high-contrast 5-inch colour TFT display with auto-dimming presents album artwork, station logos, and system menus. Navigation is handled by the RotoDial controller with tactile soft-touch buttons, and twenty global presets provide quick access to favourite stations and streaming services. A rechargeable wireless Bluetooth remote control is included, along with 2 × 3 m premium oxygen-free copper 400-strand speaker cables.
