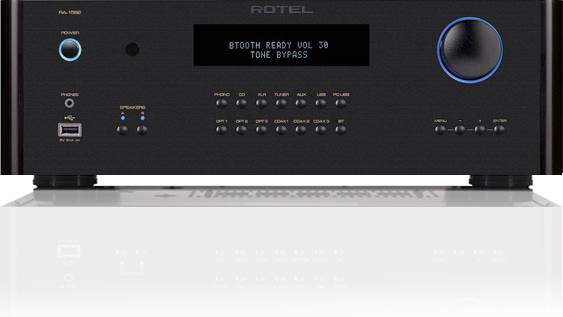

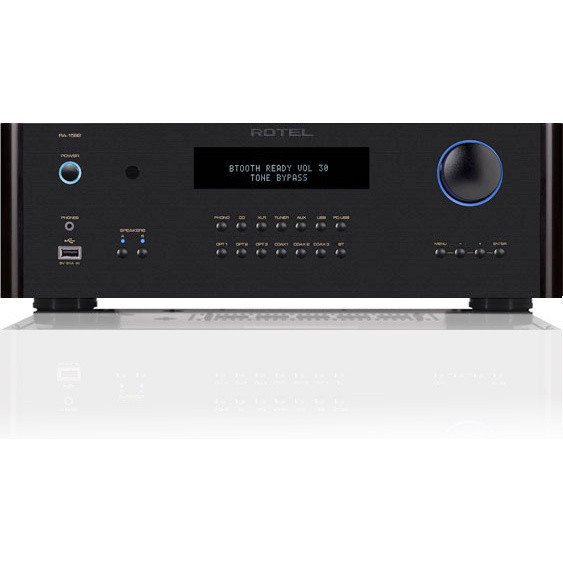

The Rotel RA-1592 sits at the top of Rotel’s 15-series integrated amplifier range, combining the preamplifier topology of the acclaimed RC-1590 with the power amplifier section from the RB-1582 Mk II in a single chassis. Delivering 200 watts per channel into 8Ω, it is designed to drive demanding loudspeakers without compromise while providing an unusually broad set of analogue and digital inputs for a stereo integrated amplifier.
Amplification

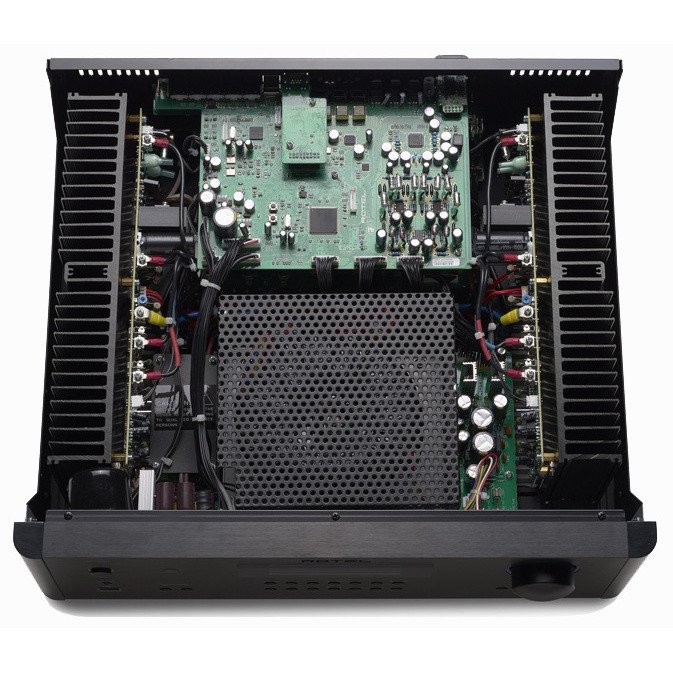

The RA-1592 employs a Class AB output stage in a dual-monoblock topology, with separate left and right amplifier sections fed by a Rotel-manufactured toroidal transformer. Custom slit-foil storage capacitors provide energy reserves for dynamic transients, while the dual-mono layout minimises inter-channel crosstalk. Total harmonic distortion is rated at less than 0.03% across the full 20Hz–20kHz bandwidth, with a damping factor of 600 ensuring tight control over low-frequency drivers. Speaker outputs use 5-way binding posts with A/B switching, and two dedicated subwoofer outputs are provided.
Digital Section
At the heart of the RA-1592’s digital stage is a premium AKM 32-bit/768kHz digital-to-analogue converter. Three coaxial and three optical S/PDIF inputs accept LPCM streams up to 24-bit/192kHz, while the rear-panel PC-USB input supports USB Audio Class 1 (24-bit/192kHz) and USB Audio Class 2 (32-bit/384kHz) including native DSD and DoP playback. A built-in Bluetooth receiver with aptX codec support enables wireless streaming from compatible devices. The front panel includes a USB input for Apple devices and USB flash drives.
Analogue Inputs
Three line-level RCA inputs and one balanced XLR input cater for traditional analogue sources, each with an input impedance of 100kΩ. A dedicated moving-magnet phono stage with 47kΩ impedance and 5.2mV sensitivity provides a direct turntable connection without the need for an external phono preamplifier.
Control and Integration
The RA-1592 includes both RS232 and Ethernet IP control interfaces for integration into custom installation environments, alongside two 12V trigger outputs and a remote IR input. An automatic digital signal sense function can power the amplifier on when an active digital input is detected. Bass and treble tone controls offer ±12dB adjustment at 100Hz and 10kHz respectively, with a tone bypass mode for purist listening.
| Continuous Power Output | 200W per channel (8Ω) |
|---|
| THD (20Hz–20kHz) | <0.03% |
|---|
| Intermodulation Distortion | <0.03% (60Hz:7kHz, 4:1) |
|---|
| Damping Factor | 600 |
|---|
| Frequency Response (Line) | 10Hz–100kHz ±0.5dB |
|---|
| Frequency Response (Digital) | 10Hz–90kHz ±2dB |
|---|
| Frequency Response (Phono) | 20Hz–20kHz ±0.5dB |
|---|
| S/N Ratio (Line) | 103dB (IHF A-weighted) |
|---|
| S/N Ratio (Digital) | 102dB (IHF A-weighted) |
|---|
| S/N Ratio (Phono) | 80dB (IHF A-weighted) |
|---|
| DAC | AKM 32-bit/768kHz |
|---|
| Digital Inputs | 3× coaxial, 3× optical, 1× PC-USB, Bluetooth aptX |
|---|
| Analogue Inputs | 3× RCA, 1× XLR balanced, 1× MM phono |
|---|

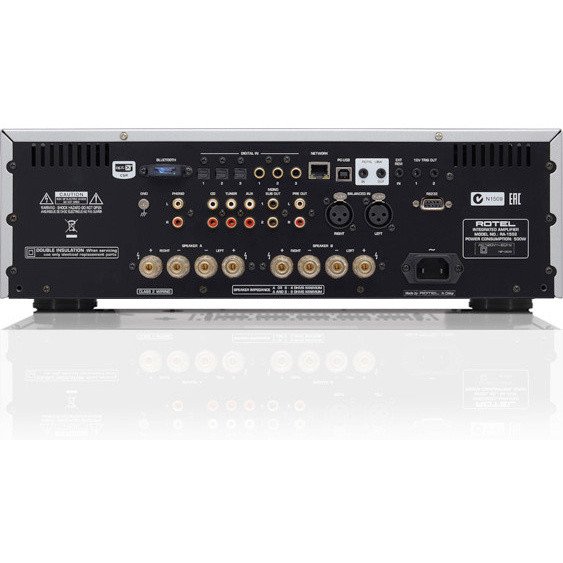

| Outputs | Speaker A/B (5-way binding posts), preamp RCA, 2× subwoofer |
|---|
| Tone Controls | ±12dB at 100Hz / 10kHz |
|---|
| Control Interfaces | RS232, Ethernet IP, 2× 12V trigger, IR input |
|---|
| Power Consumption | 500W |
|---|
| Standby Power | <0.5W |
|---|
| Dimensions (W × H × D) | 431 × 144 × 425mm |
|---|
| Weight | 16.8kg |
|---|
| Also Available As | Silver |
|---|
