The Rotel A12 MKII sits in the middle of Rotel’s integrated amplifier range, positioned above the entry-level A11 Tribute and below the more powerful A14 MKII. It delivers 60 watts per channel into 8 ohms (120W into 4 ohms) from a Class AB output stage, powered by Rotel’s in-house manufactured oversized toroidal transformer. The MKII revision introduced a new digital processor and interface chipset, power supply refinements, upgraded coupling capacitors, and circuit board layout isolation techniques designed to lower the noise floor and reduce distortion.
Digital Section
A premium Texas Instruments 32-bit DAC handles all digital sources. Four S/PDIF digital inputs (two optical, two coaxial) accept LPCM signals up to 24-bit/192kHz, while the PC-USB input supports up to 32-bit/384kHz in USB Audio Class 2 mode (24-bit/96kHz in Class 1). Bluetooth wireless streaming with aptX codec support provides convenient access to music from smartphones and tablets. The A12 MKII is certified Roon Tested, and its PC-USB input supports MQA decoding for high-resolution streaming from Tidal and other MQA-enabled services.
Analogue Section
On the analogue side, the A12 MKII provides a built-in moving magnet phono stage with 47kΩ impedance, four line-level RCA inputs (Phono, Tuner, CD, AUX), and a pre-out for connection to an external power amplifier or subwoofer. Tone controls offer ±10dB adjustment at 100Hz and 10kHz, with a bypass mode for purist listening. Signal-to-noise ratio is rated at 100dB for line-level inputs, 103dB for digital inputs, and 90dB for the phono stage (all IHF A-weighted).
Outputs & Control

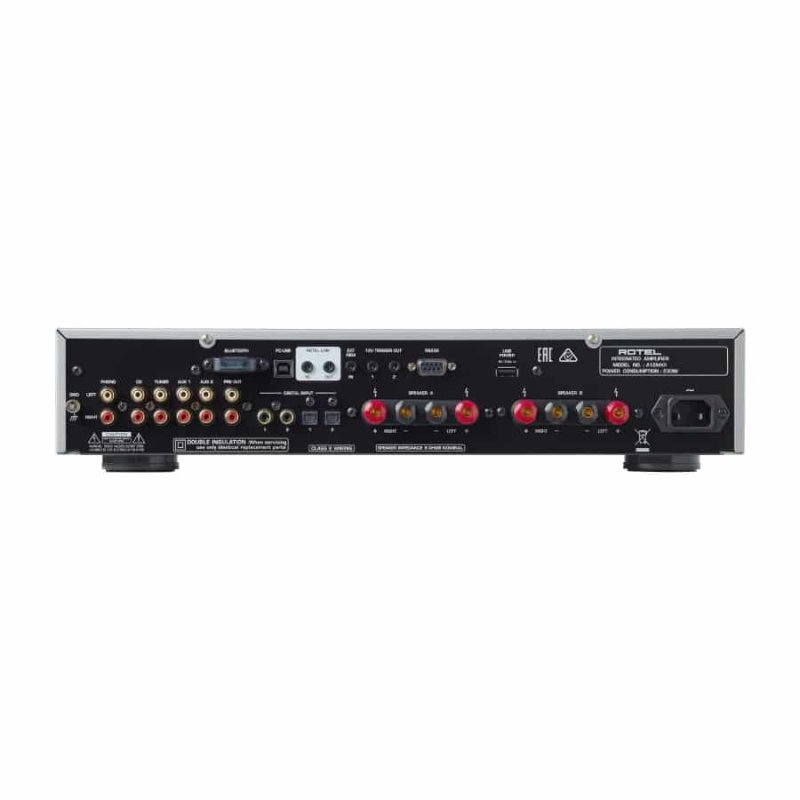

Dual speaker outputs with A/B switching allow connection of two pairs of speakers. A front-panel 6.3mm headphone output is provided for private listening, alongside a front-panel USB Type A socket. RS232 and 12V trigger connections enable integration with custom installation control systems. Rotel Link in/out jacks allow synchronised operation with other Rotel components.
| Continuous Power Output | 60W per channel (8Ω), 120W per channel (4Ω) |
|---|
| THD | <0.018% at rated power |
|---|
| Intermodulation Distortion | <0.03% (60Hz:7kHz, 4:1) |
|---|
| Damping Factor | 220 |
|---|
| Frequency Response (Line) | 10Hz–100kHz (±0.5dB) |
|---|
| Frequency Response (Digital) | 10Hz–90kHz (±2dB) |
|---|
| Frequency Response (Phono) | 20Hz–20kHz (±0.5dB) |
|---|
| S/N Ratio (Line) | 100dB (IHF A-weighted) |
|---|
| S/N Ratio (Digital) | 103dB (IHF A-weighted) |
|---|
| S/N Ratio (Phono) | 90dB (IHF A-weighted) |
|---|
| DAC | Texas Instruments 32-bit/384kHz |
|---|
| Digital Inputs | 2× optical, 2× coaxial (24-bit/192kHz), PC-USB (32-bit/384kHz) |
|---|
| Analogue Inputs | 4× RCA (Phono MM, Tuner, CD, AUX) |
|---|
| Wireless | Bluetooth aptX |
|---|
| Outputs | Pre-out, headphone (6.3mm), Speaker A/B |
|---|
| Tone Controls | ±10dB at 100Hz / 10kHz (with bypass) |
|---|
| Dimensions (W × H × D) | 430 × 93 × 345mm |
|---|
| Weight | 8.76kg |
|---|
| Power Consumption | 230W (operating), <0.5W (standby) |
|---|
| Also Available As | Black, Silver |
|---|
