QED Performance MP-SW Mini-sub Cable (6m Single)

QED
Product ID: 904
  • Mini subwoofer interconnect cable
  • 99.999% OFC conductors, aluminium Mylar screening
  • 24ct gold-plated phono plugs, 6m length
Read full description
Discontinued

This product has been discontinued and is no longer available to purchase.

Looking for something similar? Browse our full range from QED, or contact us for a recommendation.

Description

The QED Performance MP-SW Mini Subwoofer cable sits within QED's Performance range — above the entry-level Connect series and below the Reference 40 line. Where the full-size Performance Subwoofer cable uses a standard-diameter construction, the MP-SW takes the same core engineering and packages it in a 2.5mm-diameter jacket, making it small enough to run under carpets, along skirting boards, or through tight cable runs where a conventional subwoofer interconnect would be too bulky.

Construction

The MP-SW uses a co-axial geometry with 99.999% oxygen-free copper (OFC) conductors for low resistance and high signal purity. A foamed low-density polyethylene dielectric separates the conductor from the screen, chosen for its low dielectric absorption compared to solid plastic insulation. Dual screening combines an aluminium Mylar foil wrap with a 99.999% OFC braid, providing comprehensive electromagnetic shielding against interference — particularly important for the low-level signals carried by subwoofer interconnects.

Connectors

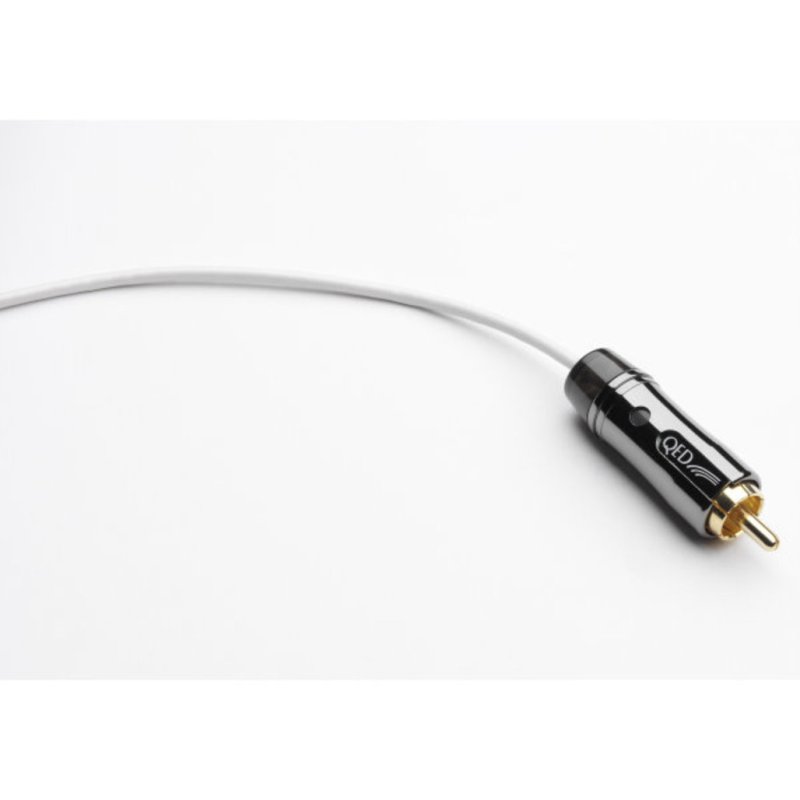

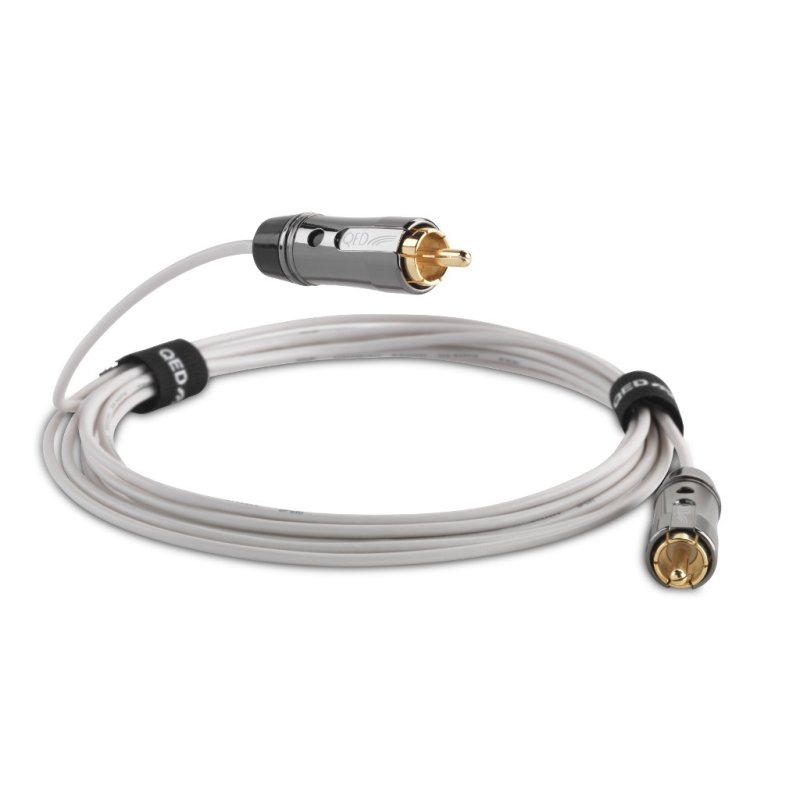

Each end is terminated with QED's Qontour 24ct gold-plated RCA phono plugs. The gold plating prevents tarnishing and maintains consistently low contact resistance over time, while the close-tolerance machining ensures a secure, reliable connection.

Design

The pearl white finish and slim 2.5mm overall diameter make the MP-SW one of the most discreet subwoofer cables available, offering the flexibility to route the cable through spaces that would be inaccessible to standard-diameter alternatives without compromising on signal quality. QED backs the MP-SW with a lifetime guarantee.


Specification

Conductor Section (mm²)1 x 0.16
Conductor Material99.999% OFC
Screening MaterialAluminium Mylar + 99.999% OFC Braid
Conductor DielectricFoamed Low Density Polyethylene
Loop Resistance (Ω/m)0.139
Parallel Capacitance (pF/m)102.0
Loop Inductance (µH/m)0.30
Dissipation Factor (@10kHz)0.0009
Overall Diameter (mm)2.5
FinishPearl White
ConnectorsQontour 24ct Gold-plated RCA Phono
Also Available As3m, 6m
