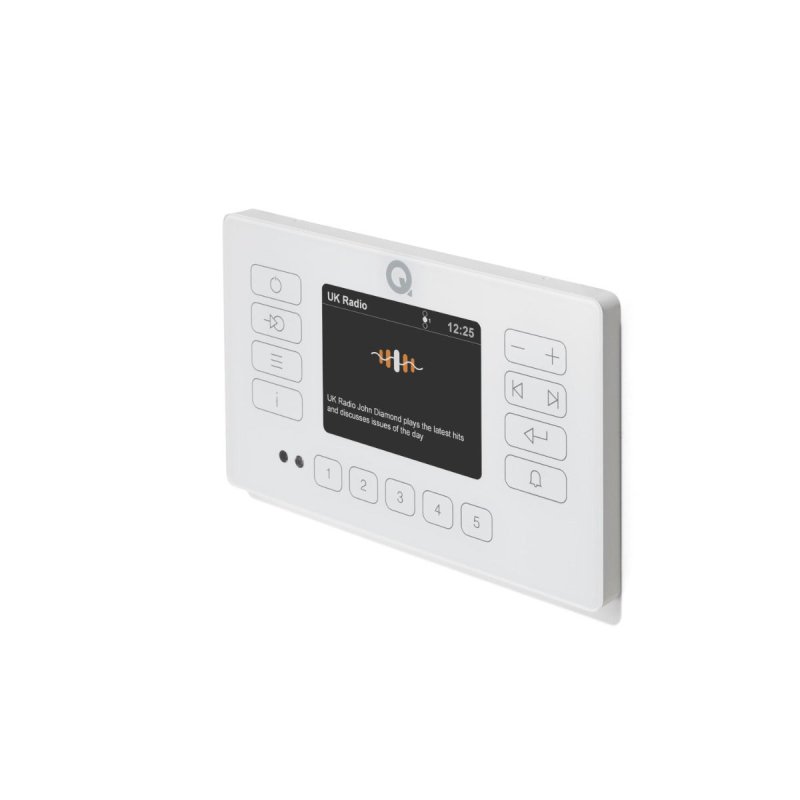

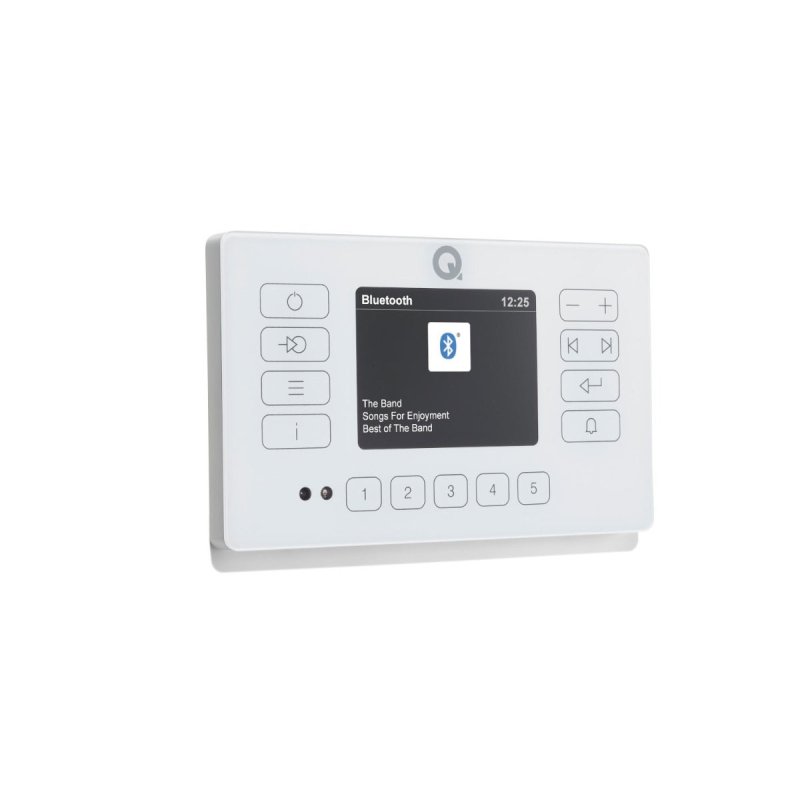

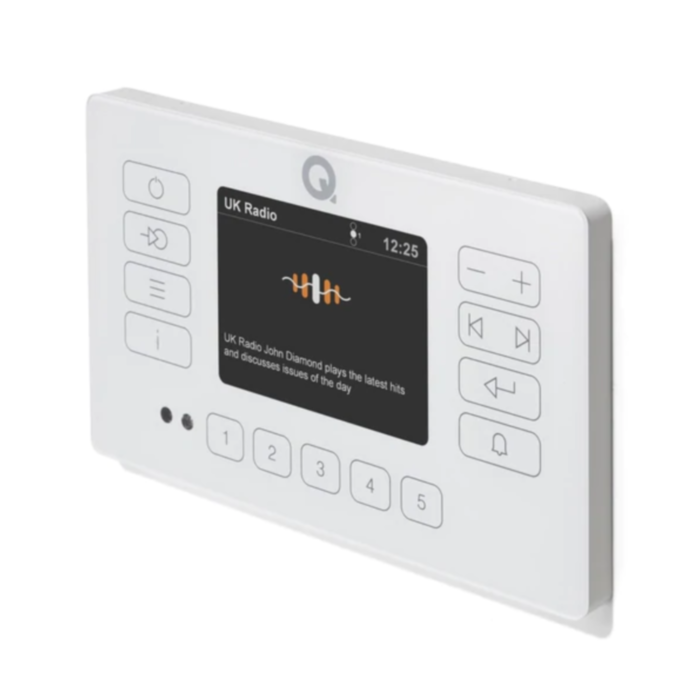

The Q Acoustics E120 is a wall-mounted wireless audio system designed for custom installation, marking the British brand's entry into the installed audio market. Built around a compact Class D stereo amplifier, the E120 delivers music streaming, DAB+ radio, and TV audio connectivity through a discreet wall panel that pairs with any passive speakers — whether Q Acoustics' own in-ceiling and in-wall models or third-party alternatives.
Zero-Clutter Design

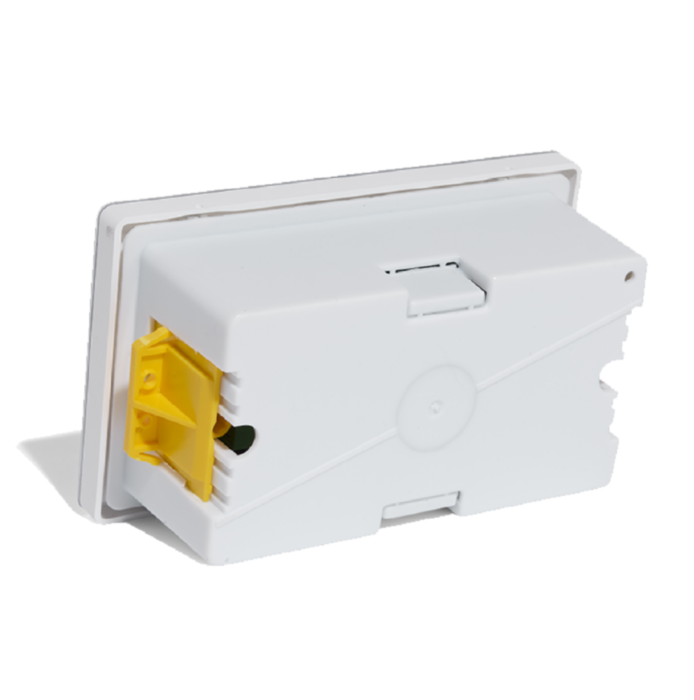

The E120 wall panel measures just 91 x 151 x 33mm and weighs 251g, mounting flush to the wall with all cabling hidden behind the surface. The system is IP54-rated, protecting it from dust ingress and water splashes, making it suitable for installation in kitchens, bathrooms, and other humid environments. The included splash-proof remote carries an IP67 rating for full waterproof protection.
Amplification & Audio
The integrated Class D amplifier delivers 2 x 25W into 6 ohms with a frequency response of 20Hz to 20kHz (±1dB). Total harmonic distortion measures 0.07% at 1W, rising to 0.2% at rated power, with a signal-to-noise ratio exceeding 75dB. Speaker outputs can be configured in stereo or dual mono mode, and a 3.5mm analogue output (fixed or variable) allows connection to an external subwoofer or secondary amplifier.
Connectivity & Streaming

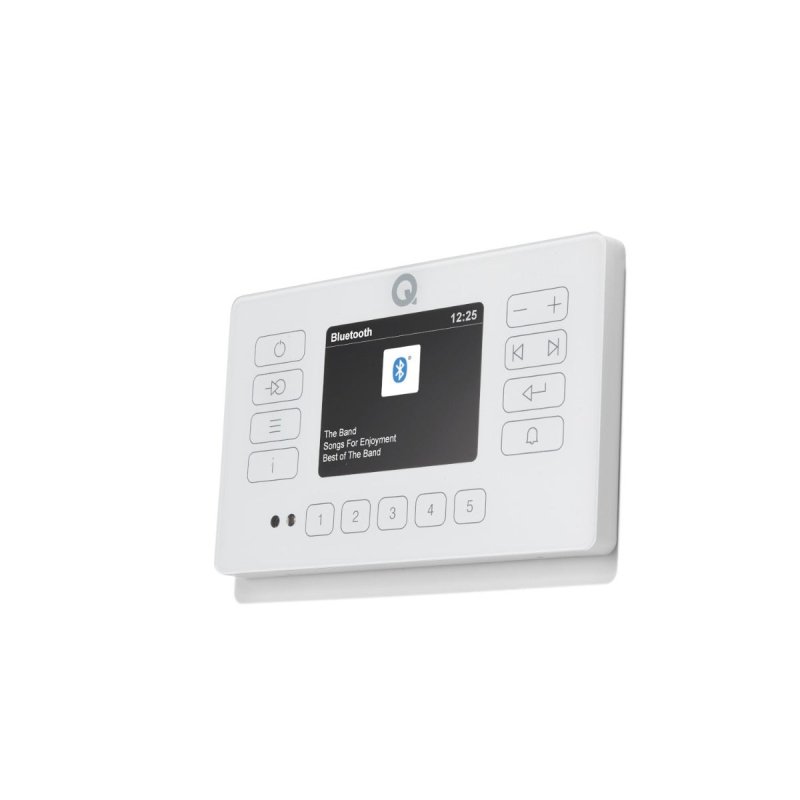

Bluetooth 5.0 with A2DP provides wireless streaming from smartphones, tablets, and laptops, with AVRCP v1.6 support for play, pause, and skip controls. The built-in DAB/DAB+ and FM radio with RDS offers up to five one-touch presets. A 3.5mm analogue input accepts wired sources at up to 1.5V, while a mini TOSLINK optical input handles digital audio at 16-bit/48kHz — ideal for connecting a television's audio output.
Control & Display

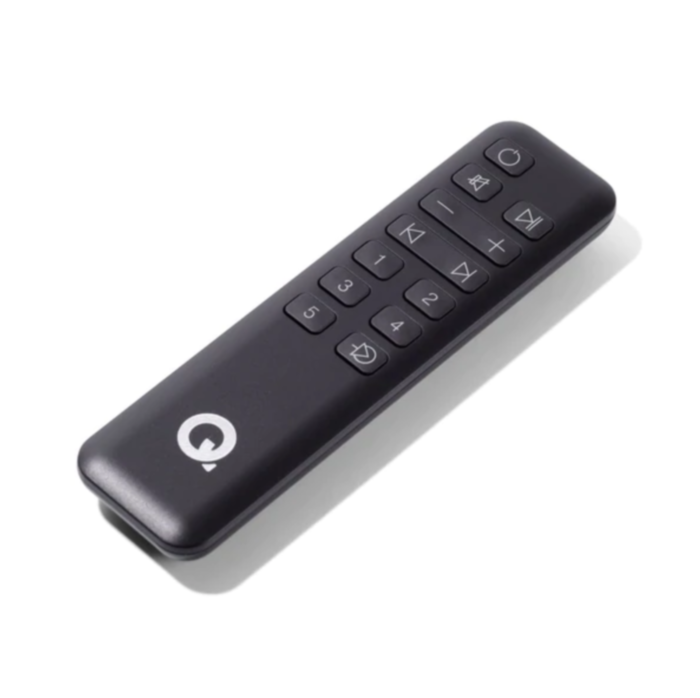

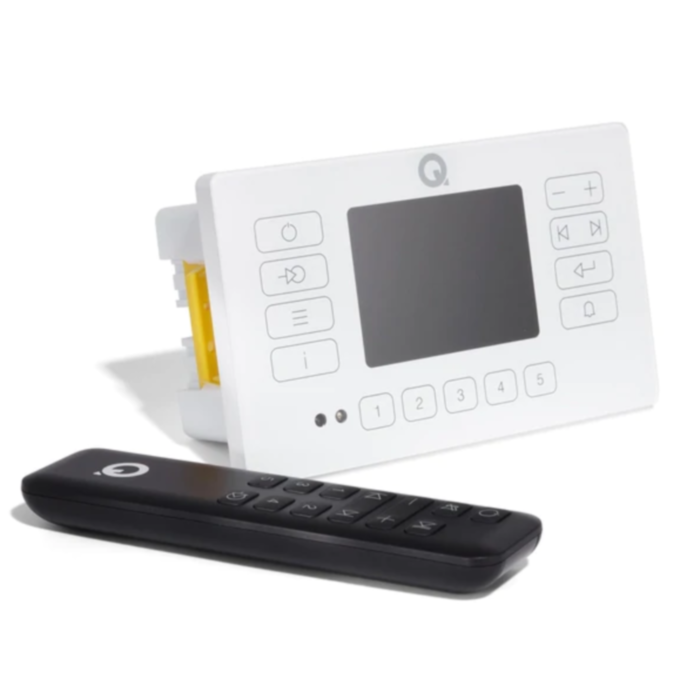

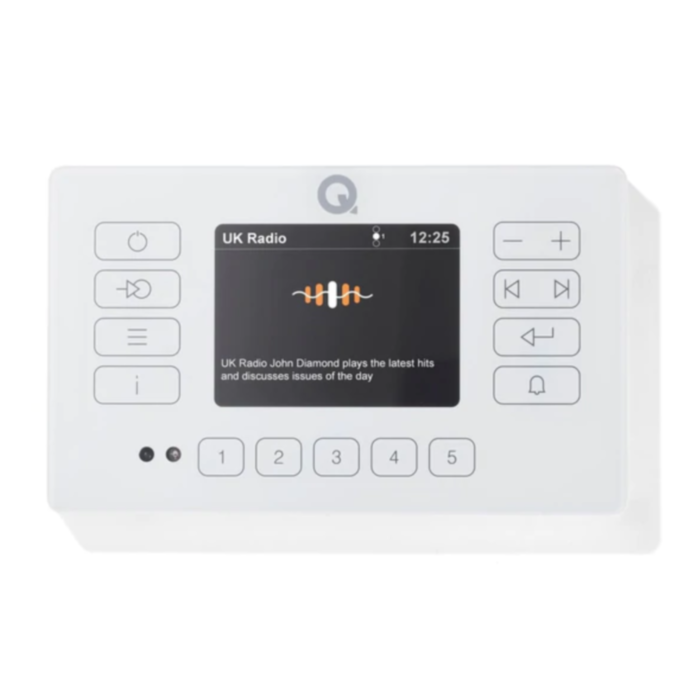

The 3.2-inch colour display shows track, artist, and album information during Bluetooth playback, with automatic brightness adjustment via an internal light sensor. Touch-sensitive controls on the fascia provide direct access to source selection, volume, and presets. Two remote controls are included: a full-size unit for general use and a compact splash-proof handset rated to IP67. Two programmable alarm functions support once, daily, weekday, and weekend schedules.
Installation
The E120 is supplied with 2 x 7m speaker cables (19 AWG) and a 5m power cable (16 AWG), along with a backbox for neat in-wall mounting. The external power supply accepts 100–240V AC input and delivers 22V DC at 1.5A, with typical power consumption of 10W and standby draw below 1W. This version is the standalone amplifier unit without speakers — for a complete system with in-ceiling speakers included, see the E120 + Qi65CB bundle.
| Amplifier Type | Class D Stereo |
|---|
| Power Output | 2 x 25W @ 6 ohms |
|---|
| THD | 0.07% @ 1W / 0.2% @ rated power |
|---|
| Signal-to-Noise Ratio | >75dB @ rated power |
|---|
| Frequency Response | 20Hz – 20kHz ±1dB |
|---|
| Bluetooth | 5.0 (A2DP, AVRCP v1.6) |
|---|
| Radio | DAB/DAB+/FM with RDS |
|---|
| Analogue Input | 3.5mm stereo (350mV sensitivity, max 1.5V, 10kΩ) |
|---|
| Optical Input | Mini TOSLINK (16-bit/48kHz) |
|---|
| Analogue Output | 3.5mm stereo (fixed or variable, max 670mV) |
|---|
| Speaker Outputs | Stereo or dual mono configuration |
|---|
| Display | 3.2-inch colour |
|---|
| IP Rating | IP54 (wall panel) / IP67 (splash-proof remote) |
|---|
| Dimensions (Wall Panel) | 91 x 151 x 33mm (H x W x D) |
|---|
| Weight | 0.251kg |
|---|
| Power Supply Input | 100–240V AC, 50/60Hz |
|---|
| Power Supply Output | 22V DC, 1.5A |
|---|
| Power Consumption | 10W typical / <1W standby / <0.5W deep standby |
|---|
| Included Cables | 2 x 7m speaker cables (19 AWG), 5m power cable (16 AWG) |
|---|
| Colour | White |
|---|
| Also Available As | Black |
|---|
