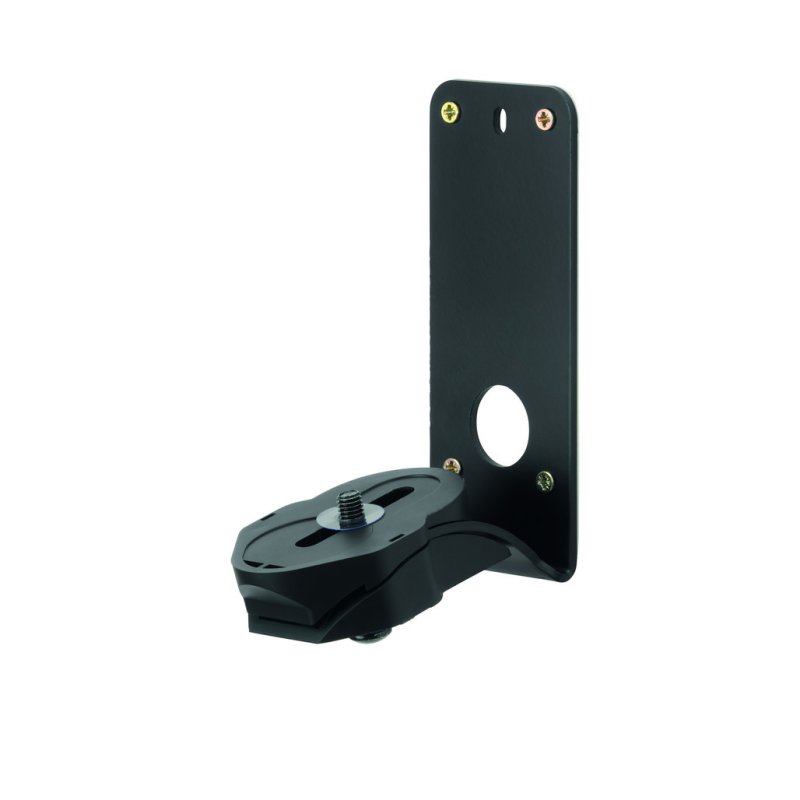

The Q Acoustics 3000WB is a wall bracket designed for the 3000 and 3000i series of compact speakers. It uses a tilt and turn mechanism, adjusted via a single Allen bolt, that allows compatible speakers to be mounted almost flat to the wall or angled downward and sideways for precise positioning in any listening environment.
Tilt and Turn Mechanism

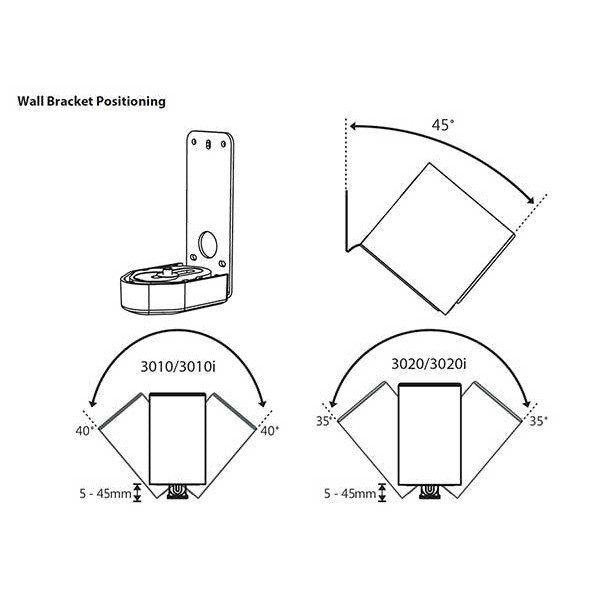

The 3000WB provides a generous range of adjustment. The bracket offers up to 45° of downward tilt and up to 40° of horizontal turn for the 3010 and 3010i, or 35° of turn for the larger 3020 and 3020i. Wall standoff distance is adjustable between 5mm and 45mm, allowing the speaker to sit close to the wall or be pulled forward for acoustic tuning.
Practical Design

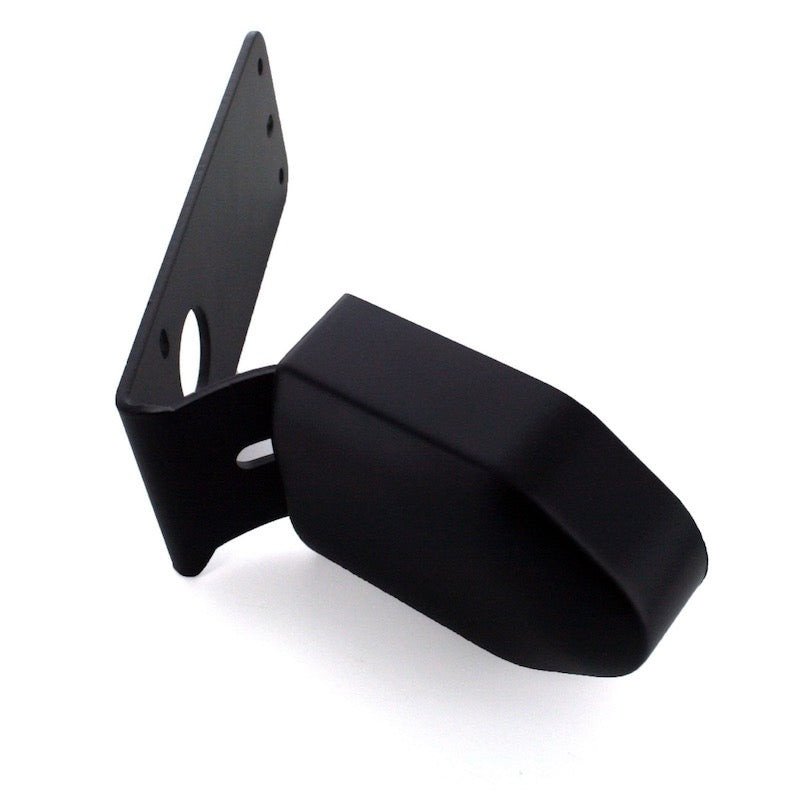

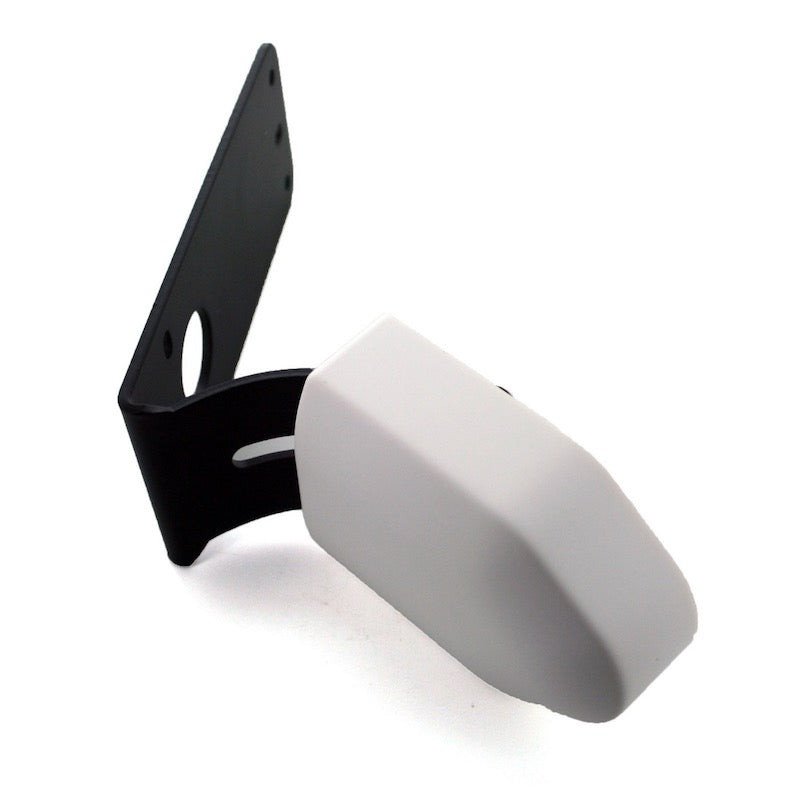

A cable routing hole in the wall plate provides a neat solution for channelling speaker cable through to a wall cavity, keeping the installation tidy. Each bracket comes supplied with both black and white bottom covers, so it can be colour-matched to whichever speaker finish is being used without needing to order a specific variant.
Compatibility
The 3000WB is compatible with the following Q Acoustics models: 3010, 3020, 3090C, 3010i, 3020i, 3090Ci, 5010, and M20. It is sold individually, allowing customers to purchase the exact number of brackets required for their installation.
| Bracket Type | Tilt and turn wall bracket |
|---|
| Adjustment | Single Allen bolt |
|---|
| Tilt Range | Up to 45° downward |
|---|
| Turn Range (3010/3010i) | ±40° |
|---|
| Turn Range (3020/3020i) | ±35° |
|---|
| Wall Standoff | 5–45mm |
|---|
| Cable Routing | Rear cable hole for wall cavity access |
|---|
| Included Covers | Black and white bottom covers |
|---|
| Compatible Models | 3010, 3020, 3090C, 3010i, 3020i, 3090Ci, 5010, M20 |
|---|
| Sold As | Single bracket |
|---|
