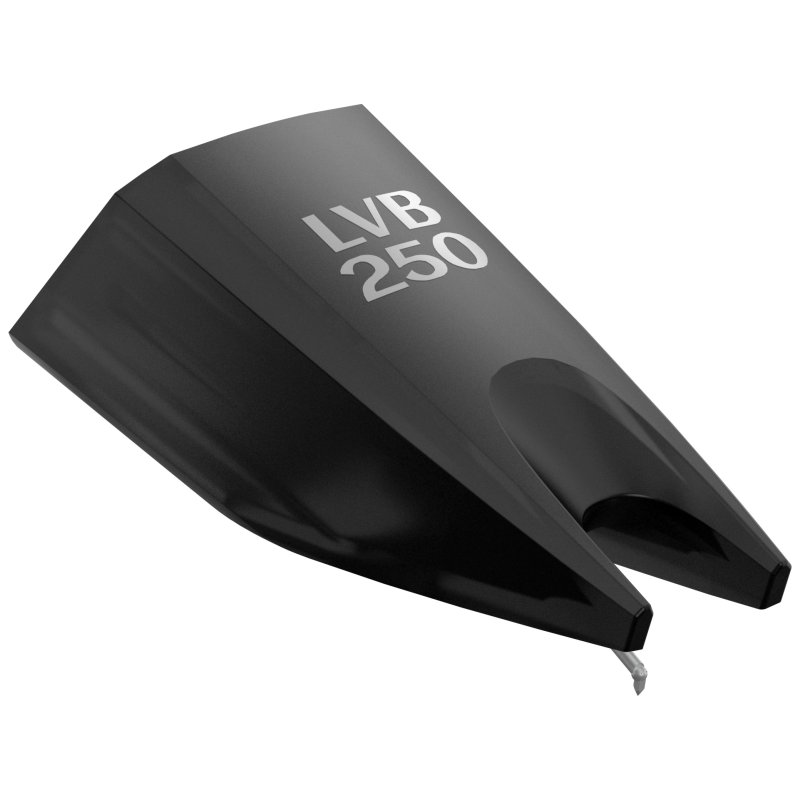

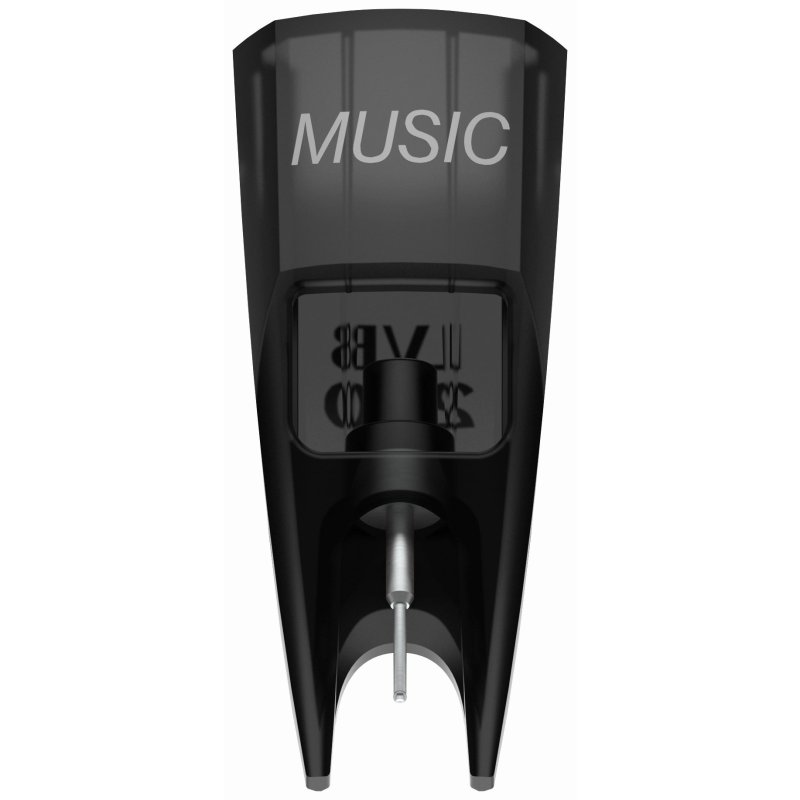

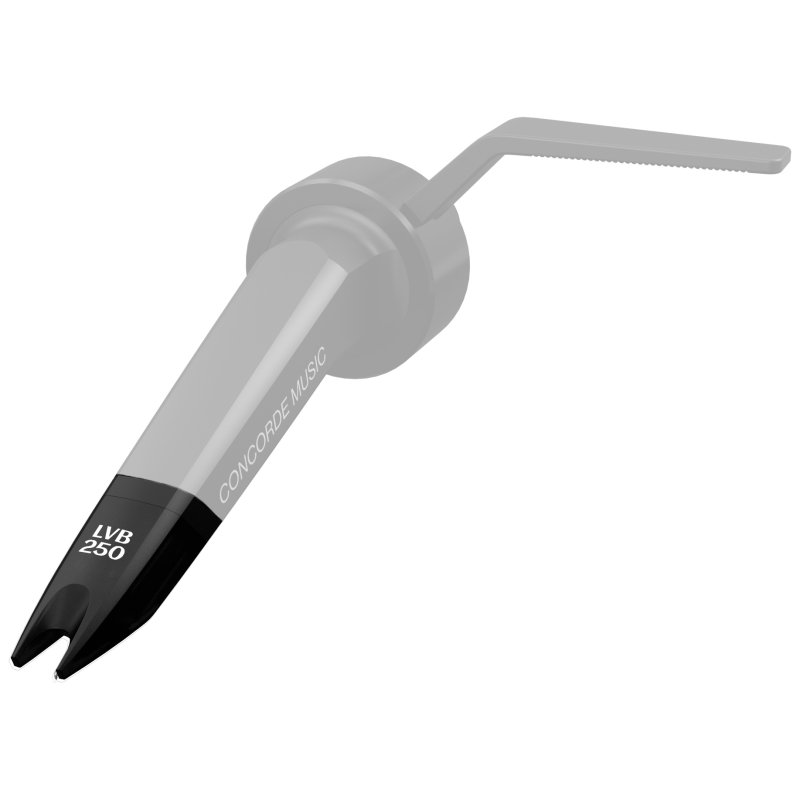

Ortofon Concorde Music Black LVB 250 Replacement Stylus

♻️ Trade In and Pay Less Trade your existing kit toward this purchase
Ortofon
Product ID: 2176
  • Nude Shibata diamond on boron cantilever
  • Flagship of the Concorde Music stylus range
  • Direct upgrade for any Concorde Music cartridge
Read full description
£699.00
Delivery: Free | Collection: Free
Condition: New (More info)
Available to order (More info)
🎁 Q Club Reward
Join free to unlock
Buy qualifying products to unlock your free accessories reward budget!

Videos


Description

The Ortofon Concorde Music Black LVB 250 Replacement Stylus is the flagship stylus of the Concorde Music series, fitting all Concorde Music cartridge bodies and providing a direct upgrade path from the Concorde Music Red, Blue, Bronze, or Black models.

Nude Shibata on Boron

The stylus mounts a nude Shibata diamond on a boron cantilever. The Shibata profile sits deep in the record groove and presents a long, narrow contact area to the groove walls, retrieving more of the high-frequency information cut into the lacquer than the elliptical or fine-line profiles fitted to the rest of the Concorde Music range. The boron cantilever is stiffer and lighter than aluminium, allowing the stylus to follow rapid groove modulations with less stored energy and lower colouration.

Anniversary Edition

The LVB 250 designation marks Ortofon's tribute to the 250th anniversary of the birth of Ludwig van Beethoven, with the stylus liveried in black and silver to identify it from the rest of the Concorde Music range.

Compatibility

This stylus fits the Concorde Music Black, Bronze, Blue, and Red cartridge bodies. It is not interchangeable with the wider Ortofon DJ or 2M cartridge ranges. Direct mounting into SME-style headshells is supported by the Concorde body shape.


Specification

Stylus TypeNude Shibata
Stylus Tip Radiusr/R 6/50µm
Cantilever MaterialBoron
Stylus SuspensionOrtofon Exclusive
Output Voltage6mV
Channel Balance (1kHz)1dB
Channel Separation (1kHz)26dB
Frequency Response20Hz to 20kHz (+2/-0dB)
Tracking Ability at 315Hz80µm
Compliance, Dynamic Lateral15µm/mN
Recommended Tracking Force1.8g
Internal Impedance1.27Ω
Internal Inductance815mH
Recommended Load Impedance47kΩ
Recommended Load Capacitance150-300pF
Coil Wire MaterialSilver-Plated OFC Copper
CompatibilityAll Concorde Music cartridge bodies
