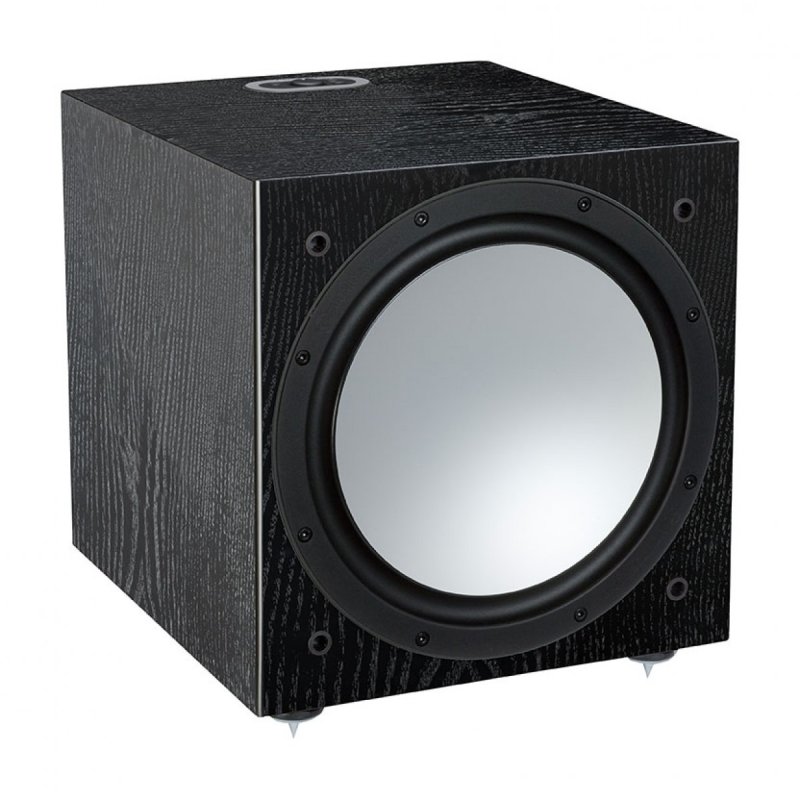

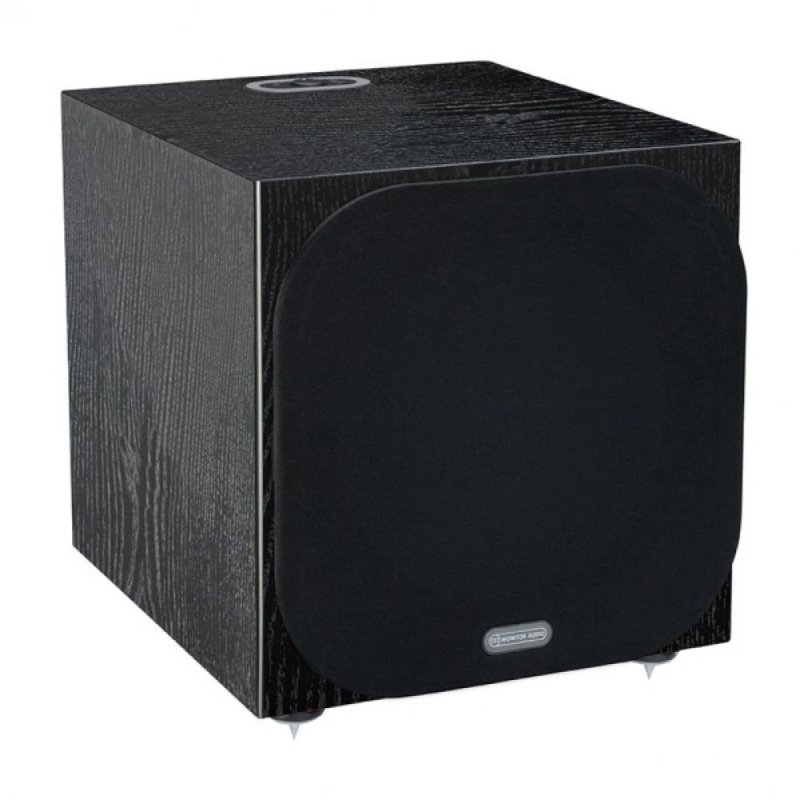

The Monitor Audio Silver W-12 6G is an active subwoofer designed to provide deep, controlled low-frequency performance for hi-fi and home cinema systems. It is intended to complement main speakers by extending bass response for music, films, and television sound.
Suitable for use with AV receivers and stereo systems featuring a subwoofer or LFE output, the W-12 integrates smoothly into a wide range of system configurations. Its design supports accurate bass reproduction without overwhelming the rest of the system.
Well suited to medium and larger listening rooms, the Silver W-12 6G offers a flexible solution for users seeking impactful yet controlled bass as part of a balanced audio setup.
| Lower Frequency Limit | 20Hz (Typical IEC room) |
|---|
| Upper Frequency Limit | 40 - 120Hz variable |
|---|
| Low Pass Filter Alignment | Active 4th order 24dB/octave |
|---|
| Amplifier Output | 500W continuous |
|---|
| Amplifier Classification | Class-D amplifier with switched-mode power supply (SMPSU) |
|---|
| Bass EQ Profiles | 1: Movie, 2: Music, 3: Impact |
|---|
| Phase Control | 0 & 180 degrees |
|---|
| Auto Sensing | Line Level >2mV, standby after 20 minutes if no signal sensed |
|---|
| Drive Unit | 1 x 12" C-CAM subwoofer driver with triple suspension and 3" long throw voice coil |
|---|
| Trigger Input | 5 - 12V via 3.5mm mono mini-jack socket |
|---|
| Cabinet Dimensions (H x W x D) | 340 x 340 x 380mm |
|---|
| Dimensions Including Grille, Amp and Feet | 370 x 340 x 410mm |
|---|
| Mains Input Voltage | 110-120Vac / 220-240Vac 50/60Hz (auto selected) |
|---|
| Power Consumption | 400W / 0.5W standby |
|---|
| Weight | 20.1kg |
|---|
