Incorporating Monitor Audio’s innovative pivoting Inverted Dual Concentric (IDC®) midrange/tweeter module and 8” RST® C-CAM® bass driver, the three-way CP-CT380-IDC represents the highest level of CP in-ceiling performance. The IDC module houses a 4” C-CAM inverted midrange driver surrounding a 25mm C-CAM gold dome tweeter.
- Pivoting module consisting of IDC midrange driver and C-CAM gold dome tweeter.
- C-CAM bass driver featuring Rigid Surface Technology (RST).
- High overall efficiency.
- High frequency level adjustment (±3dB).
- Midrange frequency level adjustment (±3dB).
- Boundary compensation controls.
- Innovative Tri-Grip® fixing system provides three times the surface area of conventional clamping schemes, maximising bass response and mid-range clarity.
- Magnetic and easily removable steel grille.
- Paintable surface to blend with the living environment. Additional scrim material provided for trouble free painting.

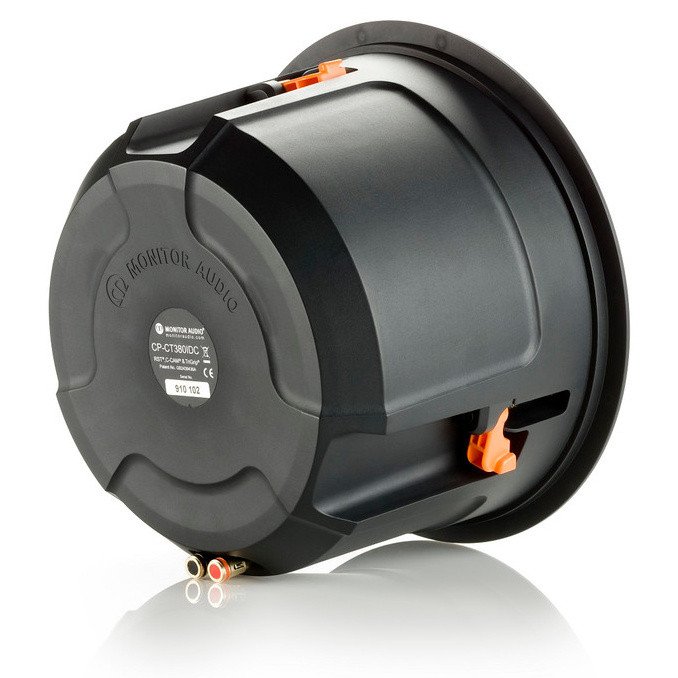

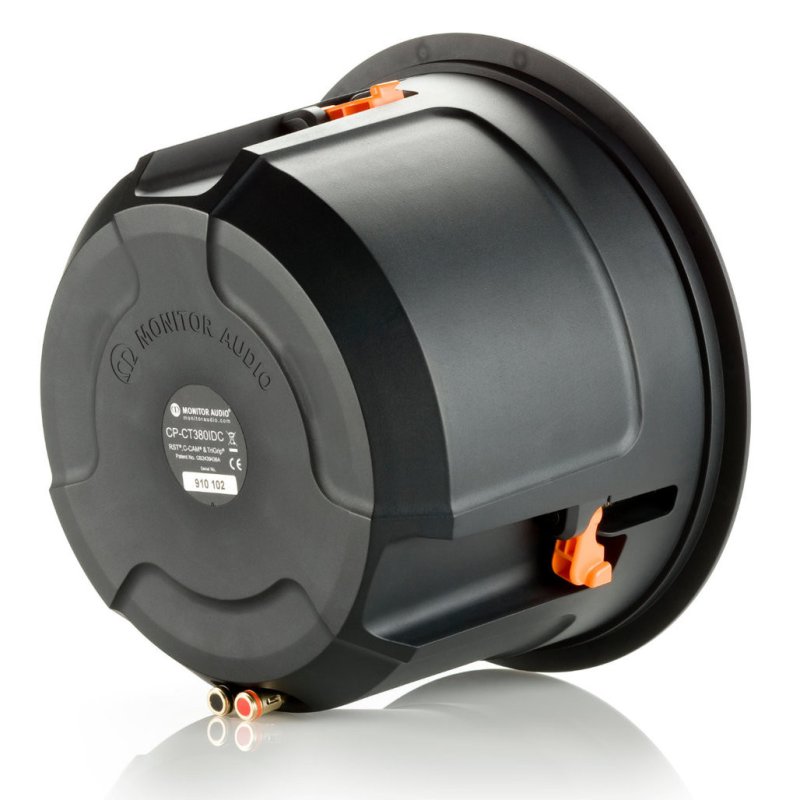

- Airtight enclosure design protects each precision-engineered driver system against the ingress of dust and dirt.
| Drive Units | 3-way: 8” C-CAM RST® cone bass driver, 4” C-CAM IDC® cone midrange driver, 1” C-CAM gold dome tweeter |
|---|
| Tweeter | 25 mm C-CAM gold dome (pivoting IDC module) |
|---|
| Impedance | 6 Ohms |
|---|
| Sensitivity | 89 dB |
|---|
| Frequency Response | 50 Hz – 30 kHz |
|---|
| Max Power | 120 W |
|---|
| Cut-Out Diameter | 274 mm |
|---|
| Mounting Depth | 181 mm |
|---|
