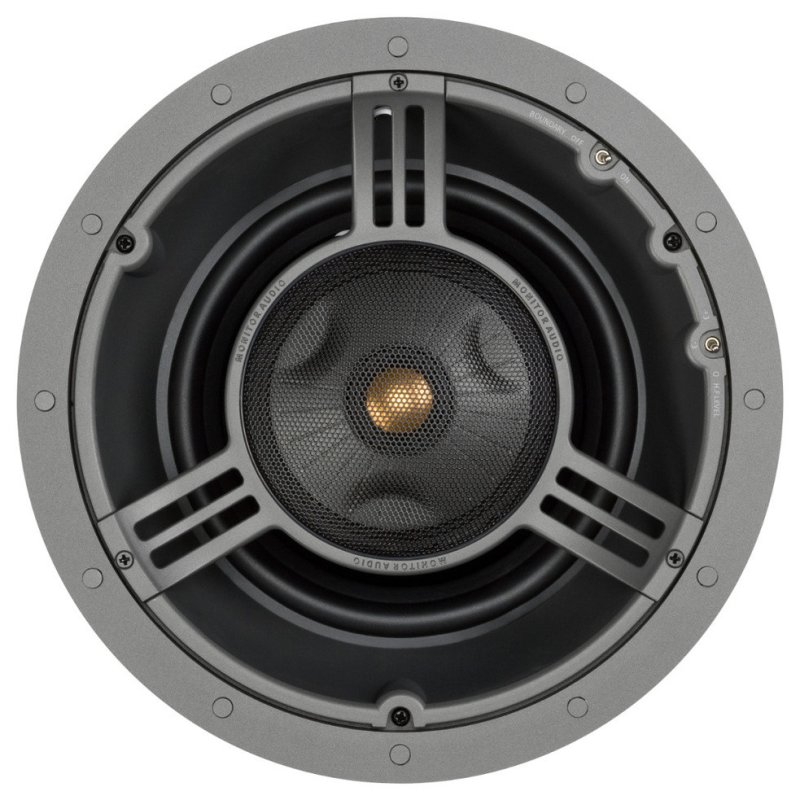

Monitor Audio C380-IDC In-Ceiling Speaker (Single)

The Monitor Audio C380-IDC sits at the top of the Core Series in-ceiling range — the flagship model combining an 8-inch bass driver with Monitor Audio's proprietary Inverted Dual Concentric (IDC) module. Where lesser in-ceiling designs squeeze two-way performance from a single coaxial unit, the C380-IDC employs a genuine three-way configuration with physically separated bass, midrange, and treble drivers, making it equally suited to discreet music listening, multichannel home cinema, and LCR front-channel duties.

C-CAM RST Driver Technology

All three drivers use Monitor Audio's C-CAM (Ceramic Coated Aluminium Magnesium) cone and dome material. The aluminium-magnesium alloy substrate provides a high stiffness-to-mass ratio, and the ceramic coating further raises the material's rigidity while damping micro-vibrations across the cone surface. The 8-inch bass driver incorporates RST (Rigid Surface Technology), in which a dimpled surface pattern drawn from aerospace structural engineering increases the cone's resistance to flexing under high-excursion conditions. The result is a bass driver capable of a 45 Hz lower limit with 150 W RMS power handling.

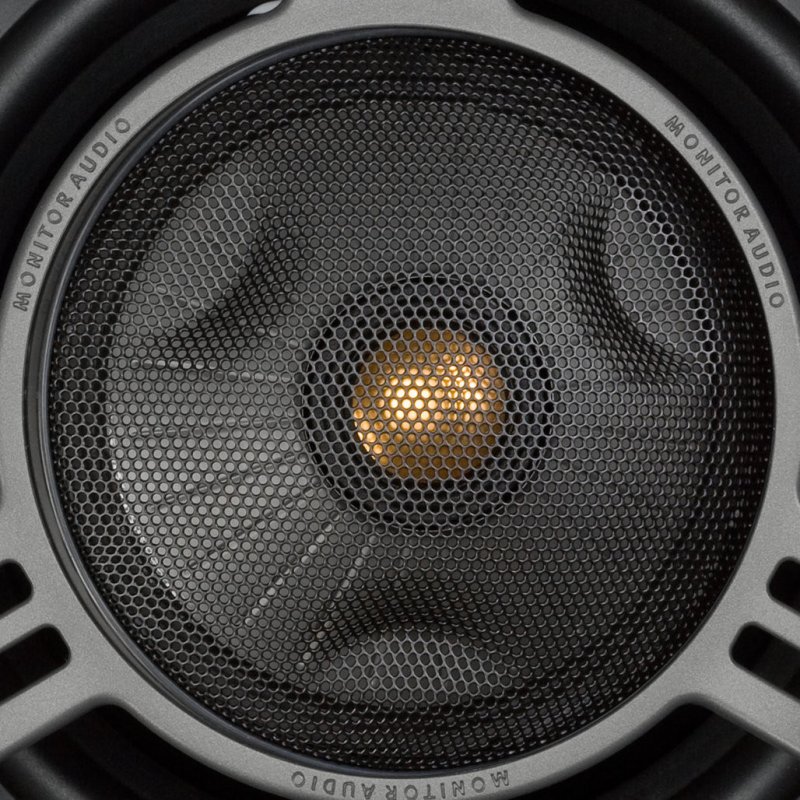

The midrange driver within the IDC module is an inverted 4-inch C-CAM RST cone, paired with the 1-inch C-CAM Gold Dome tweeter at the upper boundary. The gold dome itself extends the usable treble response to 30 kHz, well beyond the audible limit, which contributes to a smooth, uncompressed top octave.

Pivoting IDC Module

The defining feature of the IDC range is the pivoting mid/high module. The combined midrange-and-tweeter assembly can be tilted up to 18 degrees from the ceiling plane in any direction, allowing the listening axis to be steered towards the primary seating position after installation. This is particularly valuable where speakers must be positioned off-centre due to ceiling structure, or where a room's listening zone is not directly beneath the speaker. The pivot is set and locked during installation, so there is no audible mechanism noise in use.

In a home cinema context, the C380-IDC's pivoting capability allows it to function as a convincing LCR front speaker — a role it shares with the rest of the Core IDC range. The boundary compensation switch adapts the bass response for corner or wall-adjacent placement, reducing the bass lift that typically occurs when a speaker is close to room boundaries. The HF level switch (±3 dB) allows the treble balance to be trimmed to suit different ceiling heights and room acoustics.

Installation

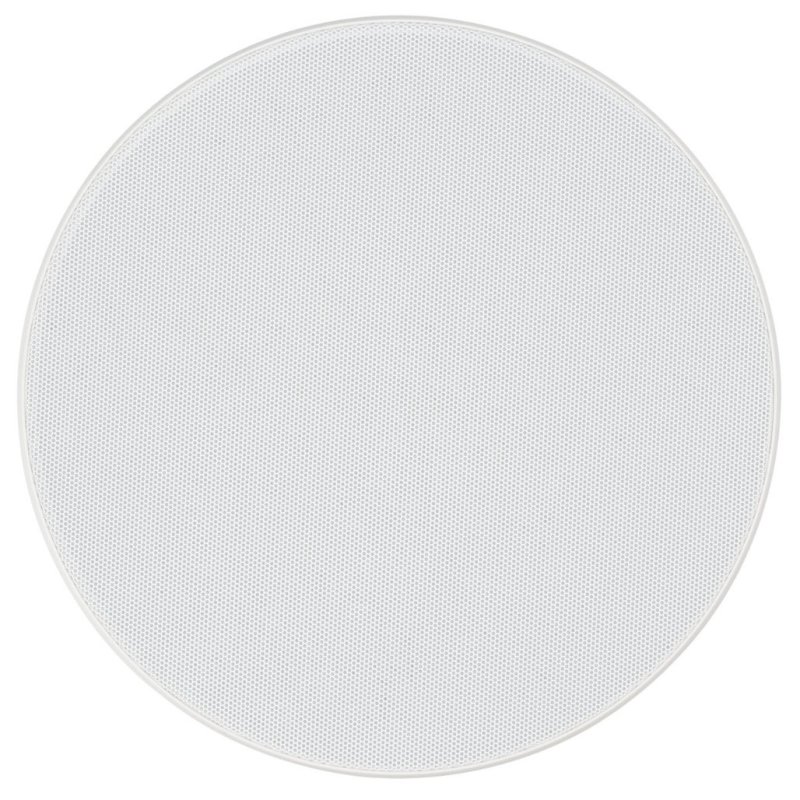

The C380-IDC is secured using Monitor Audio's Tri-Grip system — a three-point dog-leg clamping mechanism that tightens against the rear face of the ceiling material as the fixing screws are driven home. No separate backbox fixings or pilot holes beyond the cutout are required. The 247 mm cutout diameter accepts the 285 mm bezel with a flush seating. The magnetic grille holds by neodymium magnets, leaving the front face free of visible fixings; it is factory-finished in white and can be painted to match the ceiling colour.
