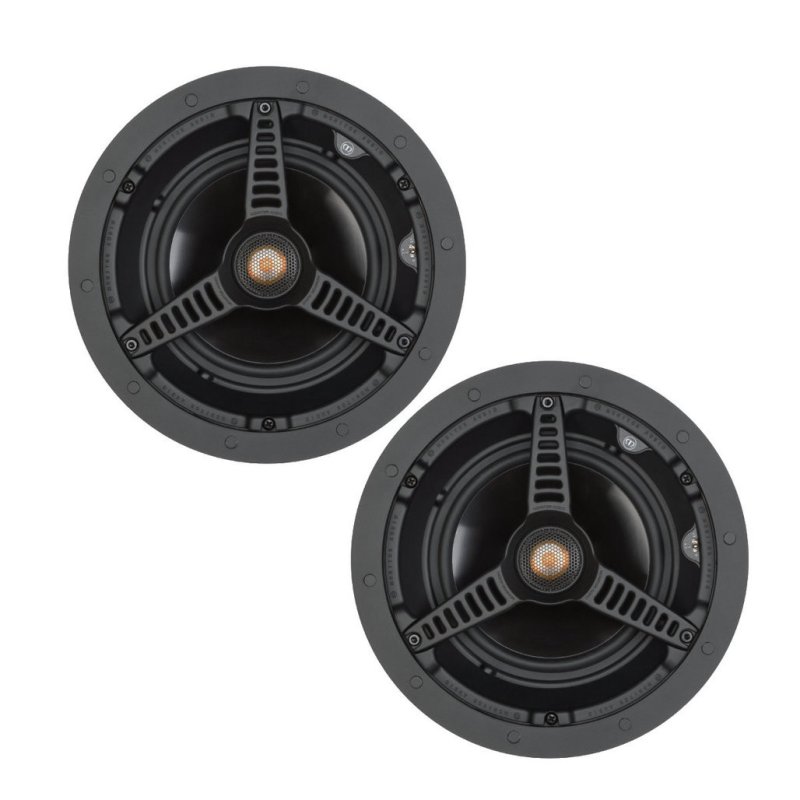

The Monitor Audio C165-A is a dedicated Dolby Atmos height-channel in-ceiling speaker from Monitor Audio's Custom Install range, supplied as a pair to provide a complete Atmos overhead layer. Designed specifically for integration into multi-channel home cinema systems that require discrete ceiling-mounted height speakers, the C165-A delivers the precise overhead imaging that Dolby Atmos soundtracks demand.
Driver Technology
Each C165-A uses Monitor Audio's 6.5-inch MMP II bass driver — a rigid aluminium cone that combines low mass with high stiffness to minimise cone break-up across the speaker's operating range. The high-frequency driver is Monitor Audio's 1-inch C-CAM Gold Dome tweeter, a material that delivers the structural rigidity needed to keep the tweeter's self-resonance well beyond the audible range.
Pivoting Tweeter for Atmos Positioning
A critical feature for a dedicated Atmos speaker is the ability to direct the high-frequency energy precisely at the listening position rather than projecting it straight down from the ceiling. The C165-A achieves this through a pivoting tweeter mount that allows the tweeter to be angled during installation. This ensures the overhead soundstage is focused on the listener, maximising the spatial precision of Atmos height panning. The tweeter can be aimed independently of the baffle orientation, which is especially useful where ceiling constraints prevent installation directly above the seating area.
High-Frequency Level Control
The C165-A includes a three-position high-frequency level adjustment switch (+3dB / 0dB / -3dB) that can be used to fine-tune the HF balance to compensate for the acoustic properties of the ceiling material and the room. Hard ceilings may produce an overly bright treble, while heavily treated rooms may absorb too much high-frequency energy — the switch provides the flexibility to optimise in either direction without requiring an external equaliser.
Installation

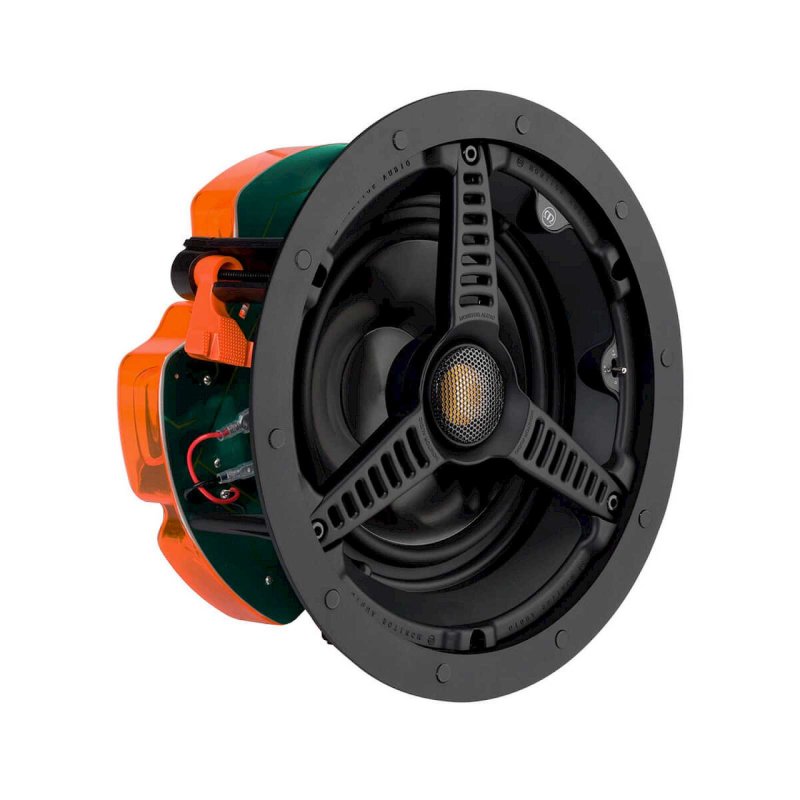

With a cut-out diameter of 211mm and a mounting depth of 114mm, the C165-A is compatible with standard ceiling construction. The 6Ω nominal impedance is compatible with the majority of AV receivers with a Dolby Atmos amplifier section, and the 88.5dB sensitivity rating means the speaker will reach adequate listening levels without placing excessive demands on the amplifier's overhead channels, which typically carry less power than the main channels in most AV receiver designs.
