| Features |
|
| CD Compatibility: CD / CD-R/RW / SA-CD / WMA / MP3 / AAC |
Yes / Yes / No / Yes / Yes / No |
| CD-Text / SA-CD Text / ID3 Tag / WMA Meta Tag / AAC Meta data |
No / No / Yes / Yes / Yes |
| Data Disc Compatibility: DSD / WAV / ALAC |
No / No / No |
| DAC operation mode: USB B type / Coax / Optical |
No / No / No |
| Asynchronous mode rear USB |
No |
| Bit-perfect transmission |
No |
| USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 |
No |
| Signal isolator for DAC Mode operation |
No |
| HDAM version |
HDAM+HDAM SA2 |
| Power Transformer: Toroidal / El |
No / Yes |
| High Grade Audio Components |
Yes |
| Customised Components |
Yes |
| Symmetric circuit layout |
Yes |
| Copper Plated Chassis |
No |
| Extra metal plate for chassis strengthing |
Yes |
| Digital out off / Audio EX Mode |
Yes / No |
| Headphone: Standard / Buffer / Current feedback |
No / Yes (HDAM-SA2) / No |
| Others |
|
| Selectable filter: CD / SA-CD / DAC-Mode |
Yes / No / No |
| Marantz Musical Mastering |
Yes |
| Marantz Musical Mastering Stream |
No |
| Marantz Musical Mastering Conversion |
No |
| Separated rectifier circuit for analogue and digital circuitry |
Yes |
| Display: Dimmer / Off |
Yes / Yes |
| Low noise LCD display |
No |
| 5mm Aluminium top cover |
No |
| Playback |
|
| Program Play (CD / SA-CD) |
25 |
| Repeat |
Yes |
| Random Play |
Yes |
| Start Sound Mode for SA-CD |
No |

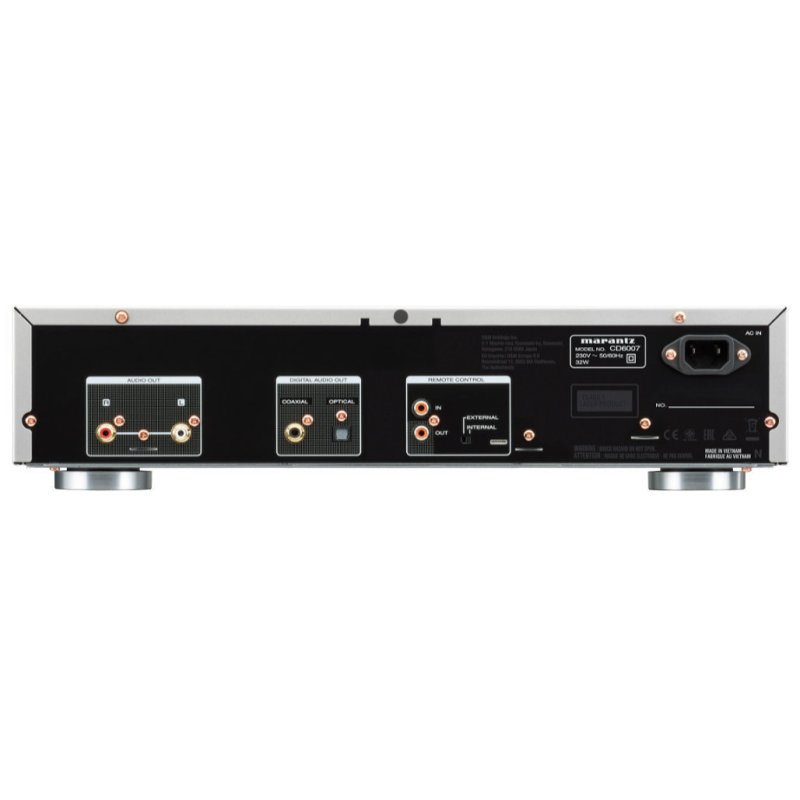

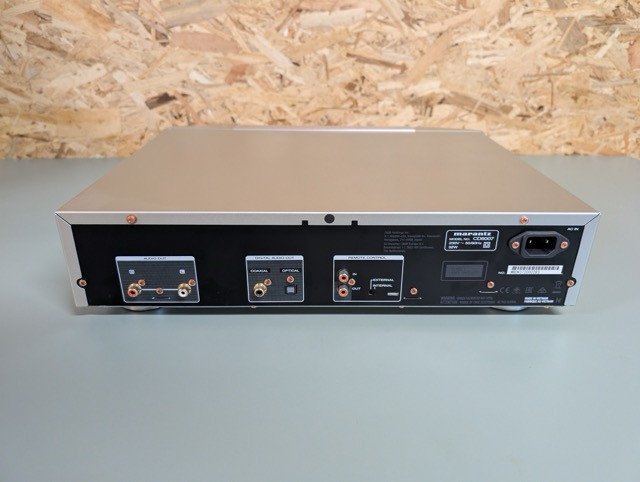

| Analogue Out (Cinch) |
2 ch |
| Balanced Out |
No |
| Digital Optical In / Out |
No / 1 |
| Digital Coaxial In / Out |
No / 1 |
| Sample Rate digital In |
No |
| Gold Plated Cinch |
Yes |
| USB Audio (Front) / Made for iPod / Made for iPhone® |
Yes / No / No |
| USB-A: FLAC / WAV / AIFF / ALAC / DSD |
Yes |
| USB type B input for PC (rear) Sample Rate USB type B In |
No |
| Asynchronous mode rear USB |
No |
| USB type B input for PC (rear) |
No |
| USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 |
No |
| D-Bus |
Yes |
| Headphone Out |
Yes |
| Headphone Volume Control |
Yes |
| Other Specifications |
|
| Mechanism |
JTL-101Y |
| D/A Conversion |
Multi-bit, Delta-Sigma |
| Low Pass Filter stage |
HDAM |
| Output Buffer |
HDAM SA2 |
| Headphone amp |
HDAM-SA2buffer+OPAMP |
| Frequency Response (Cust.) |
No |
| Dynamic Range (SA) |
No |
| Signal to Noise Ratio (SA) |
No |
| Total Harmonic Distortion (SA) |
No |
| Channel Separation (SA) |
No |
| Frequency response |
2 Hz - 20 kHz |
| Dynamic Range |
100 dB |
| Signal to Noise Ratio |
110 dB |
| Total Harmonic Distortion |
0.00002 |
| Channel separation |
98 dB |
| General |
|
| Metal Front Panel |
Yes |
| Power Consumption in W |
32 |
| Standby Consumption in W |
0.3 |
| Auto Power off |
Yes |
| Detachable Power Cable |
Yes |
| Maximum Dimensions (W x D x H) in mm |
440 x 340 x 105 |
| Weight in kg |
6.5 |

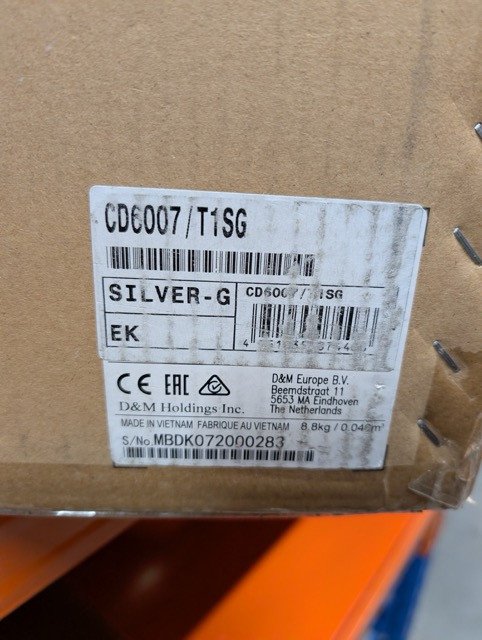

| Carton Maximum Dimensions (W x D x H) in mm |
517 x 468 x 189 |
| Carton Weight (inc. product) in kg |
8.8 |
