- "I think I enjoyed Lyngdorf Audio's TDAI-3400 more than I have any other component I've reviewed." - SoundStage! Hi-Fi (June 2020)
- Reviewers' Choice - SoundStage! Hi-Fi (2020)

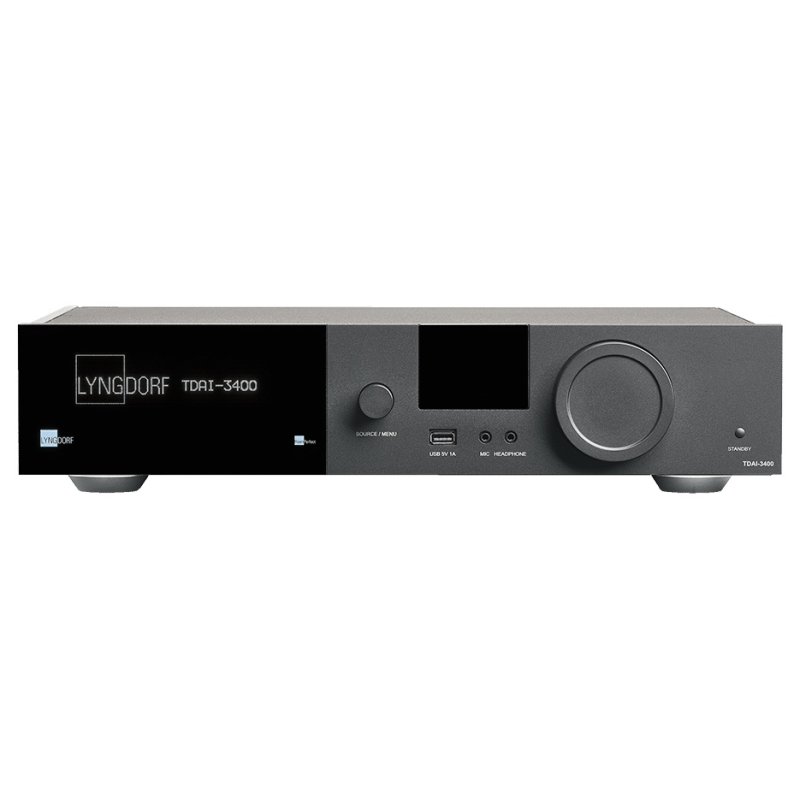

Lyngdorf TDAI-3400 Streaming Integrated Amplifier
♻️
Trade In and Pay Less
Trade your existing kit toward this purchase
- Fully digital amplification, 2x400W into 4 Ohms
- RoomPerfect room correction with calibration microphone
- Roon Ready, TIDAL Connect, Spotify Connect and AirPlay 2
Awards & Reviews
Videos
Description
The TDAI-3400 is the flagship of Lyngdorf's TDAI range of streaming integrated amplifiers, sitting above the TDAI-1120 and TDAI-2210. It combines a fully digital amplifier, a network streamer and a digital audio processor in a single Danish-built chassis, with Lyngdorf's RoomPerfect room correction at its core.
Amplification
The TDAI-3400 uses Lyngdorf's true digital amplification, processing the signal in the digital domain without analogue conversion stages. Lyngdorf states that this approach eliminates several analogue components and signal paths that are a major source of noise. The amplifier delivers 2x400W RMS into 4 Ohms and 2x200W RMS into 8 Ohms, with a maximum output current of 40A.
RoomPerfect and processing
RoomPerfect measures the acoustic character of the room using the supplied calibration microphone and adapts the system to suit it. The processor offers 32 adjustable voicings with up to 8 filters per voicing, a digital crossover with three independent output settings, and Integrated Composite Correction (ICC).
Streaming and sources
The TDAI-3400 is Roon Ready and supports TIDAL Connect with lossless audio quality, Spotify Connect, Qobuz Connect and AirPlay 2. It includes an MQA Core Decoder, a DLNA/UPnP media player and internet radio via vTuner. Maximum digital input resolution is 32-bit/384kHz.
Connectivity

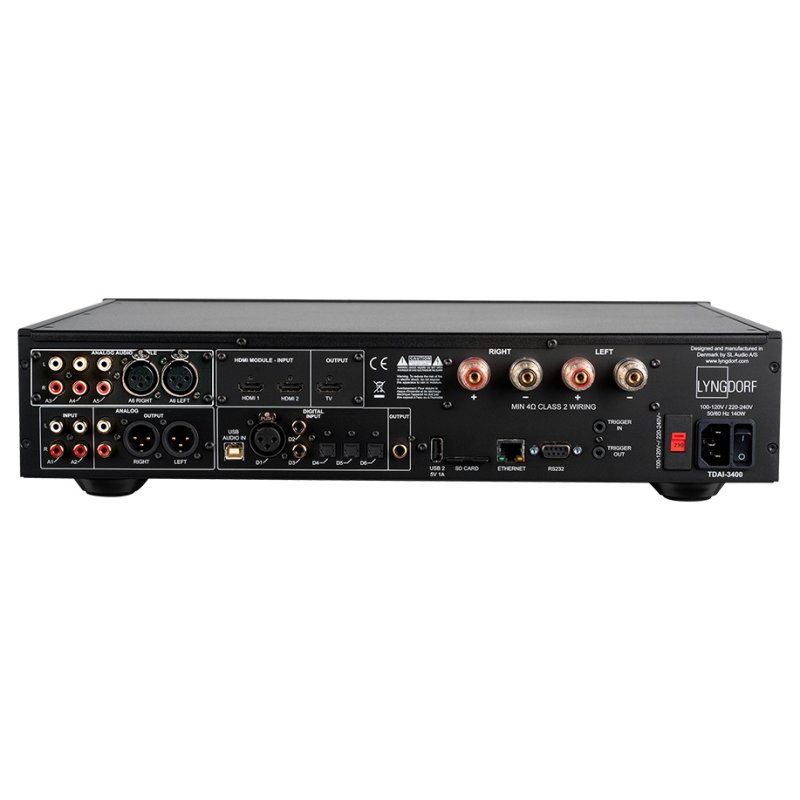

Digital inputs comprise two coaxial, one AES-EBU, three optical, two USB-A and one USB-B. Analogue inputs include two single-ended RCA pairs and a microphone input for RoomPerfect calibration. Outputs include a coaxial digital output, single-ended RCA, balanced XLR and a 3.5mm headphone jack. Network connectivity covers Wi-Fi 802.11n/ac, Ethernet and Bluetooth, with RS232 control on a DB9 connector.
Modular expansion
The TDAI-3400 can be expanded with two optional modules: an HDMI 2.1 module providing two inputs and one ARC/eARC output, and a high-end analogue input module adding an MM phono stage and further line-level analogue inputs.
Specification
| Power Output | 2x400W RMS into 4 Ohms, 2x200W RMS into 8 Ohms |
|---|---|
| Maximum Output Current | 40A |
| Amplifier Technology | True digital amplification |
| Frequency Response | +/-0.5dB from 20Hz to 20,000Hz |
| Total Harmonic Distortion | 0.05% max from 20Hz to 20,000Hz |
| Maximum Digital Input Resolution | 32-bit / 384kHz |
| Room Correction | RoomPerfect with calibration microphone |
| Voicings | 32 adjustable voicings, up to 8 filters per voicing |
| Streaming | Roon Ready, TIDAL Connect, Spotify Connect, Qobuz Connect, AirPlay 2, MQA Core Decoder |
| Network | Wi-Fi 802.11n/ac, Ethernet RJ45, Bluetooth |
| Digital Inputs | 2x coaxial, 1x AES-EBU, 3x optical, 2x USB-A, 1x USB-B |
| Analogue Inputs | 2x single-ended RCA, microphone input |
| Outputs | Coaxial digital, single-ended RCA, balanced XLR, 3.5mm headphone |
| Optional Modules | HDMI 2.1 module, high-end analogue input module (MM phono) |
| Standby Power | Less than 0.5W |
| Dimensions (WxHxD) | 45 x 10.5 x 36 cm (including connectors) |
| Weight | 8.2 kg |
| Finish | Matte Black |
