Goldring E2 Replacement Stylus

Goldring E2 Replacement Stylus

SKU:
GOLD-GL0057
SKU:
GOLD-GL0057

Guaranteed In Stock -
Stock/Delivery Info

  • Replacement stylus for Goldring E2
  • Aluminium cantilever, spherical diamond tip
  • User-replaceable design
MSRP: £59.00
£49.00
(You save £10.00)
Brand:
Goldring
Availability:In Stock

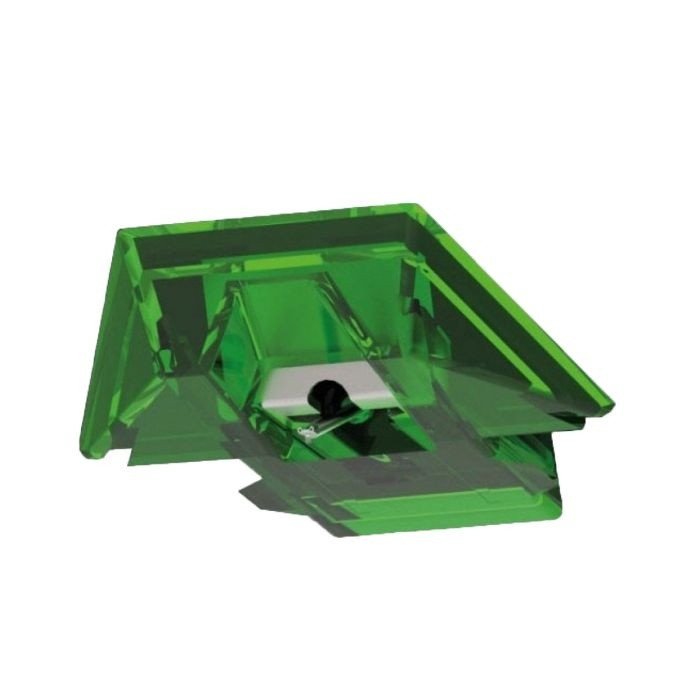

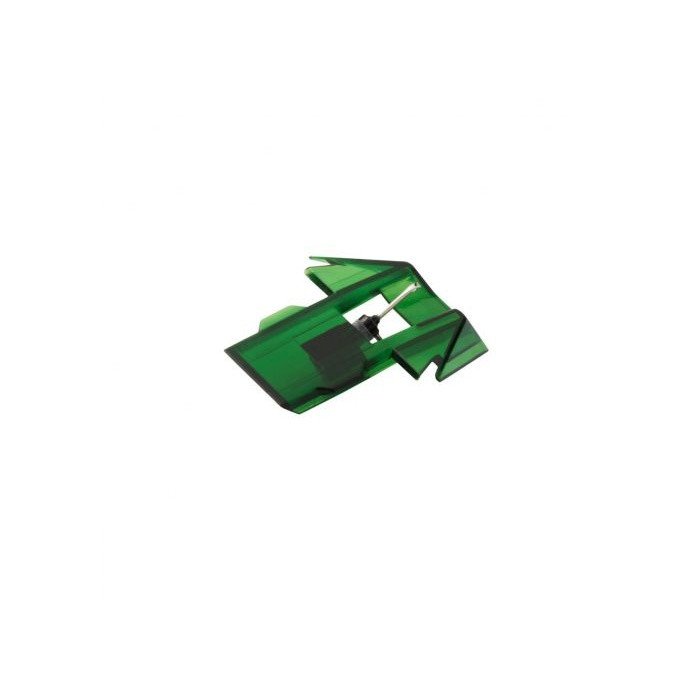

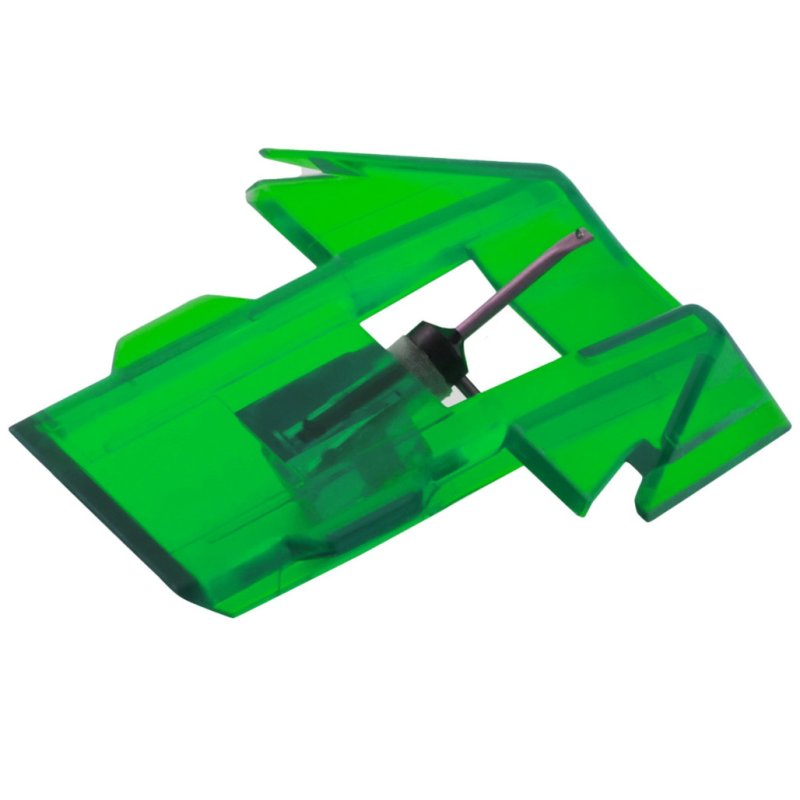

The Goldring E2 replacement stylus is a genuine Goldring component designed for the E2 moving magnet cartridge. It sits in the middle of Goldring's E Series range, stepping up from the entry-level E1 with its upgrade from a carbon-fibre cantilever to a stiffer, lighter aluminium cantilever. The stylus retains the same bonded spherical diamond profile as the E1, but the aluminium cantilever allows more accurate tracing of mid-to-high frequencies, resulting in greater detail retrieval and reduced distortion during loud passages.

E Series Range Position

Goldring's E Series comprises the E1, E2, and E3, all sharing the same cartridge body and Magnetic Duplex Technology dual-magnet generator. The E1 pairs a spherical stylus with a carbon-fibre cantilever. The E2 upgrades to an aluminium cantilever while keeping the spherical tip. The E3 steps up further with a bonded elliptical stylus on an aluminium cantilever. All three are cross-compatible: fitting an E2 stylus to any E Series body gives E2-level performance, and upgrading to the E3 stylus later requires no cartridge swap.

Magnetic Duplex Technology

The E Series generator uses Goldring's Magnetic Duplex Technology, a dual-magnet assembly designed to replicate stereo information more accurately than conventional single-magnet moving magnet designs. This is shared across all E Series models and is retained when swapping styli.

Compatibility and Installation

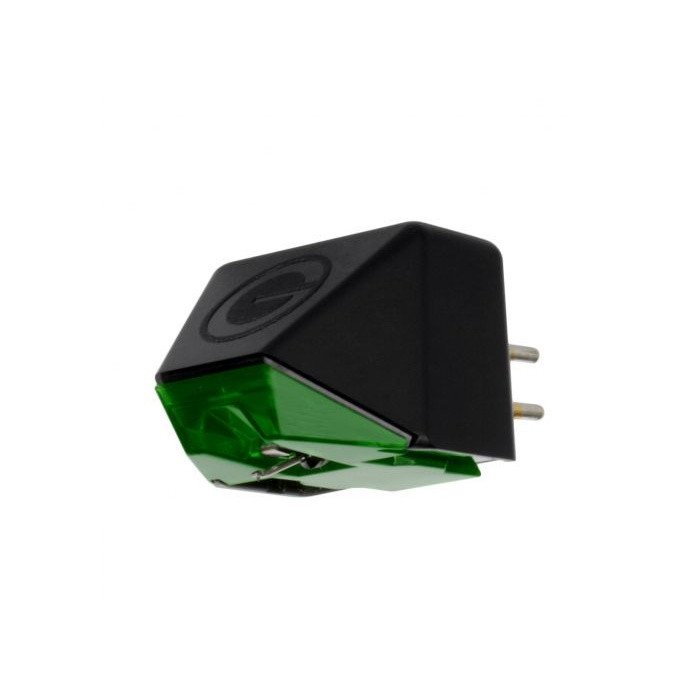

The E2 stylus is user-replaceable and clips directly onto any Goldring E Series cartridge body (E1, E2, or E3). No tools or alignment adjustment are required. The cartridge body itself is designed for medium-to-high effective mass tonearms, making it suitable for the majority of budget-to-mid-priced turntables.

Stylus TypeBonded Spherical
Tracking Radius15 µm (0.6 mil)
Equivalent Tip Mass0.7 mg
CantileverAluminium
Playing Weight1.75–2.25 g (2 g nominal)
Vertical Tracking Angle24°
Trackability70 µm
Frequency Response20 Hz – 20 kHz ± 3 dB
Frequency Range12 Hz – 20 kHz
Sensitivity3.5 mV ± 3 dB at 5 cm/s lateral
Channel Separation20 dB min at 1 kHz
Channel Imbalance1.5 dB max at 1 kHz
Static Compliance20 mm/N
Load Resistance47 kΩ
Load Capacitance100–200 pF (150 pF nominal)
Internal Inductance400 mH
Internal Resistance470 Ω
Recommended Tonearm Effective Mass10–30 g
Cartridge Mass (with fixings)6.8 g (7.8 g)
Cartridge Height17 mm
Fixing Centre12.7 mm
CompatibilityGoldring E1, E2, E3 cartridge bodies
