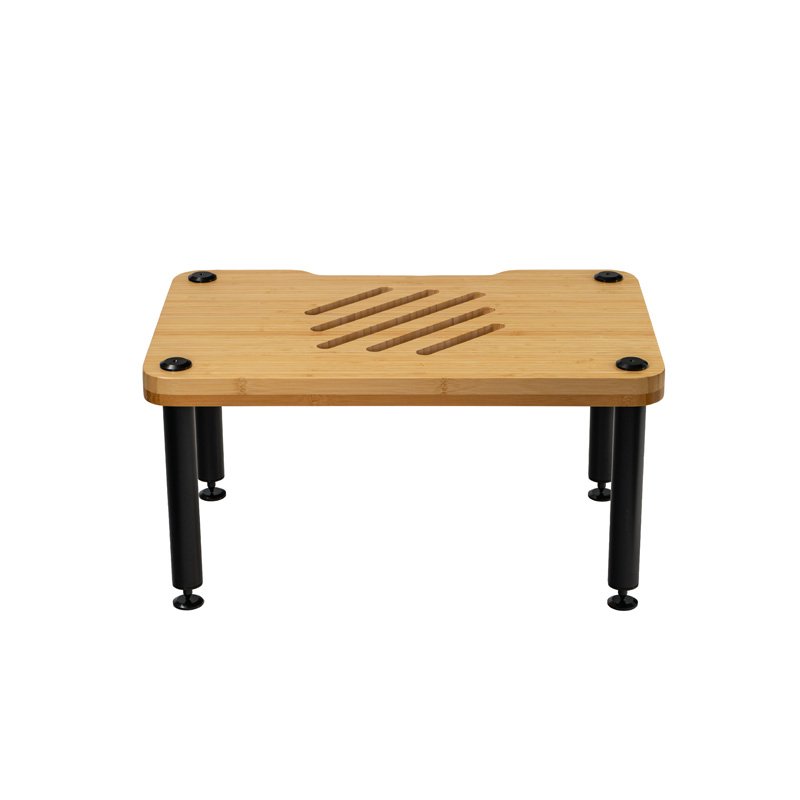

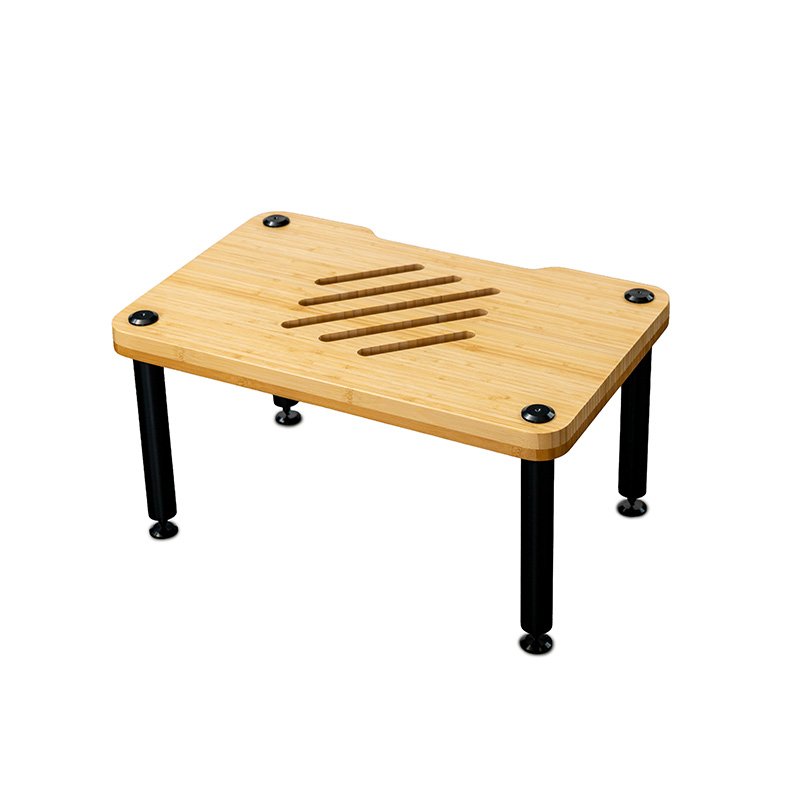

The APEX-250 is one of the taller upper modules in the Forged Audio APEX racking system, sized for larger amplifiers that need room to breathe. It gives 280 mm of usable clearance beneath its shelf, so any component up to 280 mm tall fits; a 250 mm amplifier goes in with 30 mm to spare. The shelf is a 2-ply bamboo board carried on four Ø38 × 250 mm solid steel posts, and because every APEX module shares the same thread and base fitting, the APEX-250 bolts straight onto the tier below and can be added, removed or repositioned as your system changes.
A shelf designed to dissipate

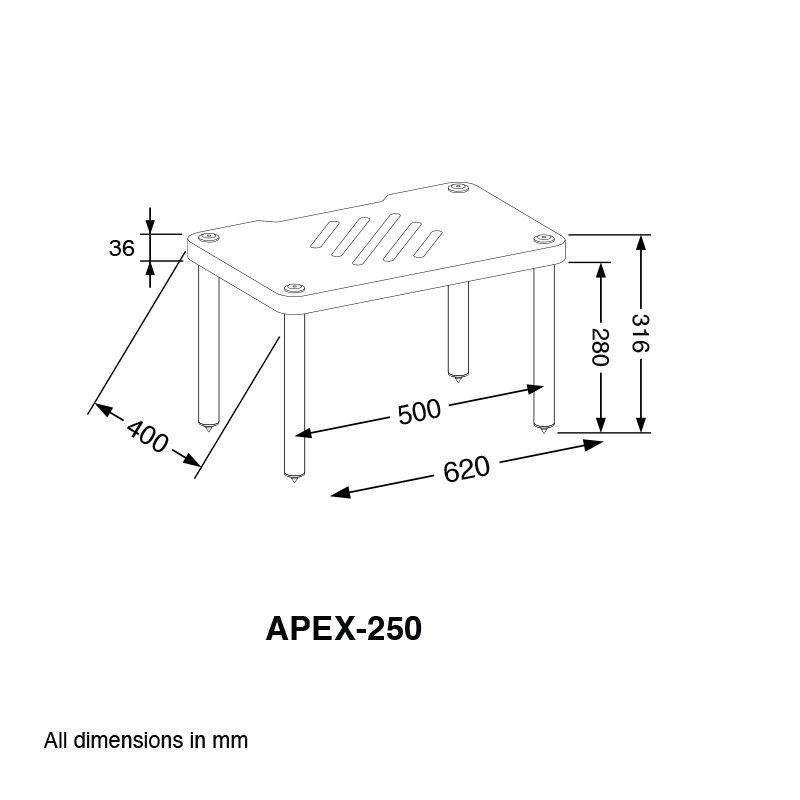

Each shelf is a 620 × 400 × 36 mm board made from two bonded plies of bamboo. The bond line between the plies acts as a mechanical energy break, so vibrational energy has to cross a material boundary rather than travel through the shelf freely. Bamboo itself has no single dominant resonant pitch: its random internal fibre geometry distributes vibrational energy broadly instead of ringing at one frequency. With a Janka hardness of 1,410 to 1,610 lbf it is harder than European oak, and its modulus of elasticity of 18 to 20 GPa keeps the shelf stiff enough to push its resonance well above the audible band.
Solid steel, from shelf to floor

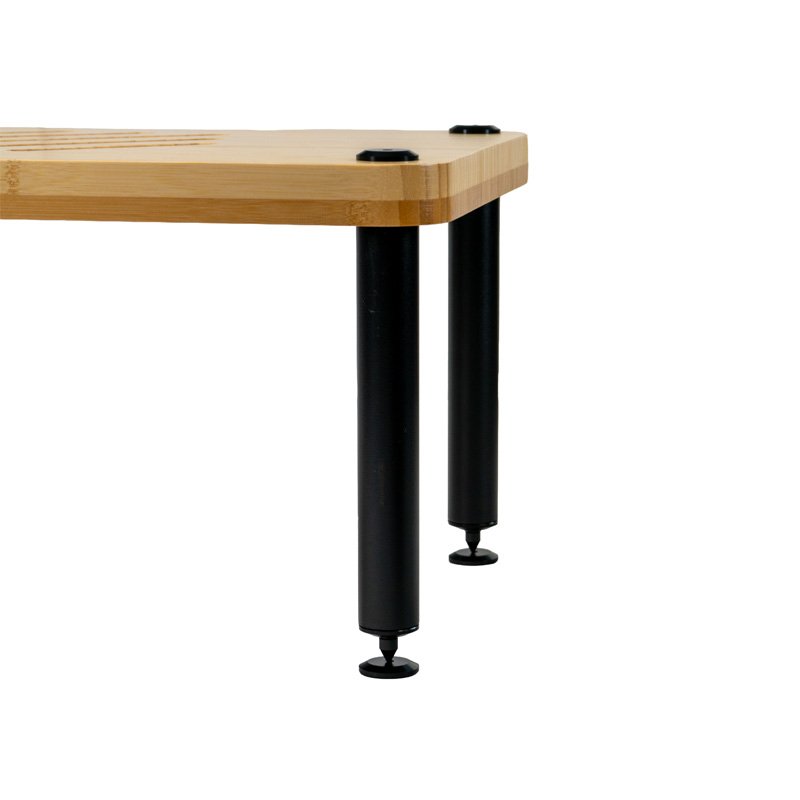

The posts are solid steel, not hollow tube and not aluminium. Solid steel has the mass to resist vibration at source and the rigidity to channel what does enter straight down through the rack to the floor.
Part of a modular rack

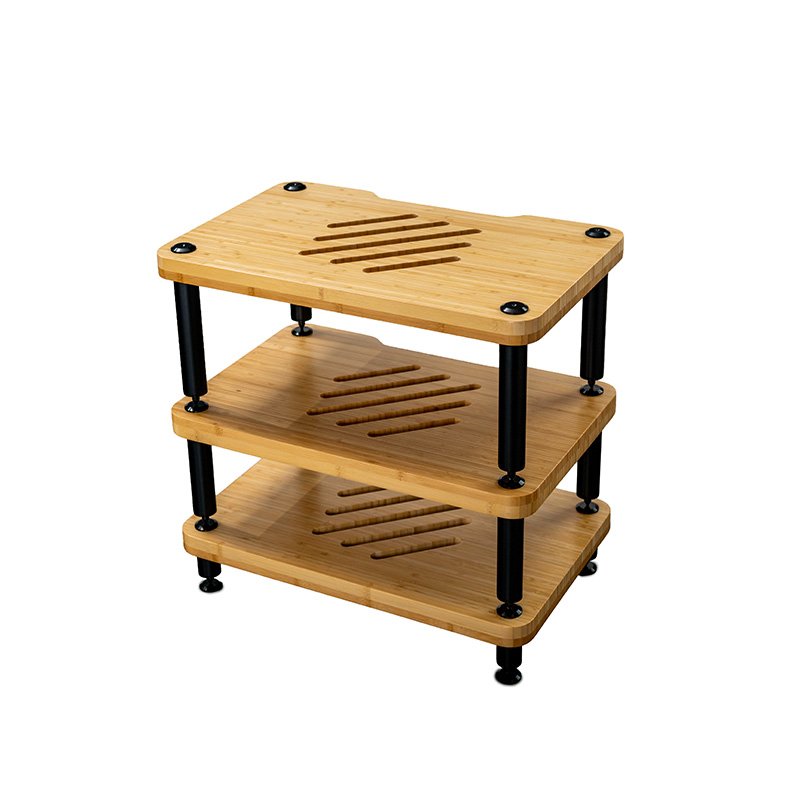

Every APEX module shares the same thread and base fitting, so tiers can be added, removed and rearranged as your system changes. Stack two, three or four tiers, mixing heights to suit your components; for stability and safety Forged Audio recommend keeping the finished rack below 1.25 metres. Sizing is simple: each module quotes its usable clearance, the space between spike and shelf, and if your component stands shorter than that figure, it fits. Shorter tiers suit compact sources and slimline electronics, while the taller tiers give valve amplifiers room to breathe and large power amplifiers the ventilation their transformers demand.
Practical details

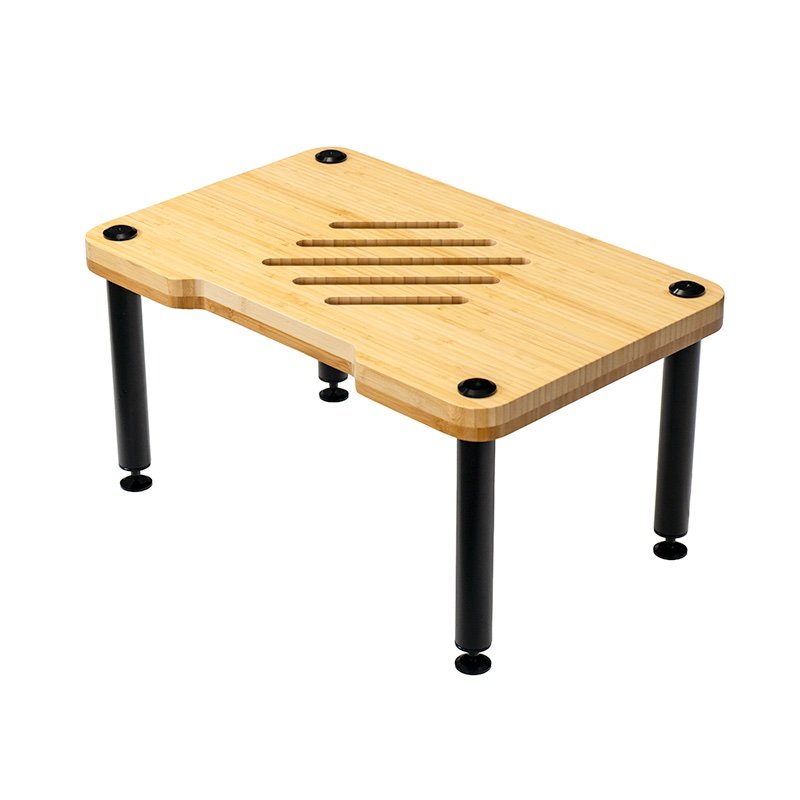

The sculpted edge groove works either way round: run it to the rear as a cable channel behind shallower components, or face it forward as a styling accent beneath your equipment's front panel. The four posts sit in from the edges of the shelf, leaving 500 mm of clear width across the front. And because the bamboo grain is unique to every shelf, no two APEX modules look quite the same.
