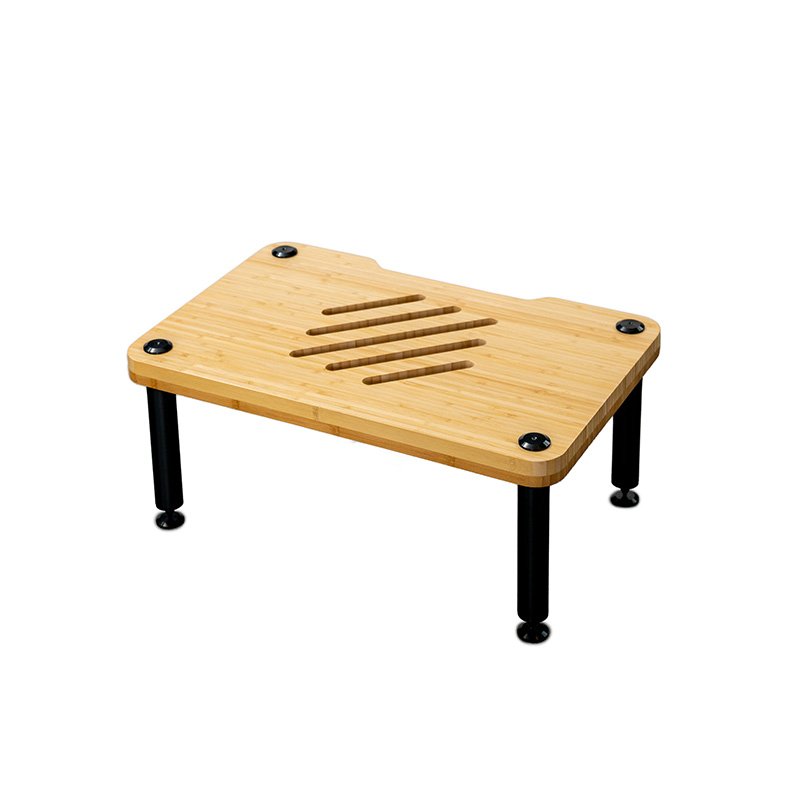

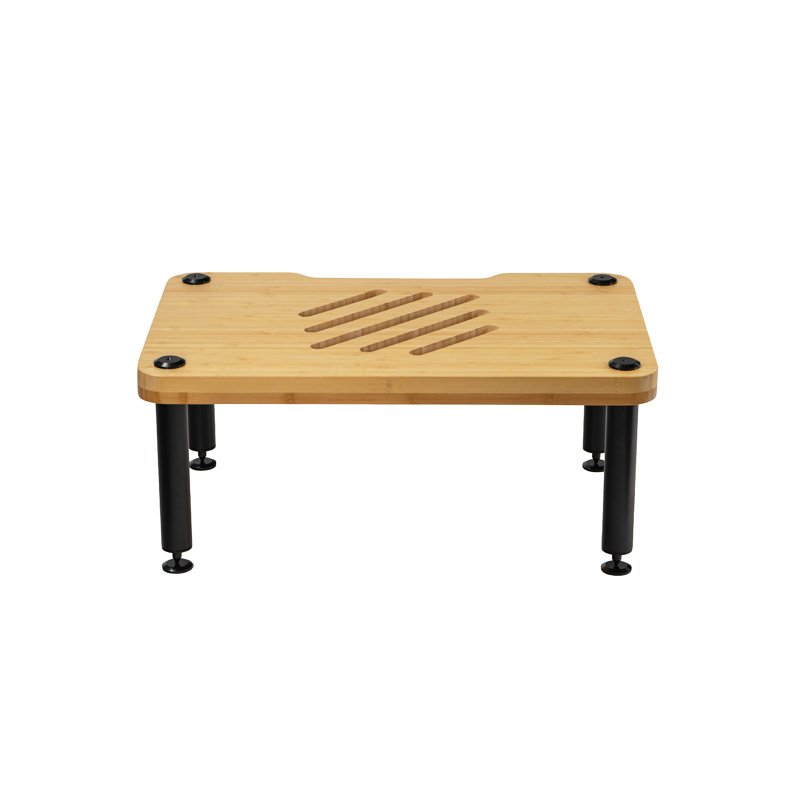

The APEX-200 is an upper module of the Forged Audio APEX racking system, sitting between the APEX-150 and APEX-250 in the range. Rather than standing on the floor like the APEX-50 base platform, it bolts straight onto the tier below through the shared thread and base fitting, adding a further shelf with 230 mm of usable clearance, measured from spike to the underside of the shelf. Any component that stands shorter than 230 mm fits, which makes this the tier sized for most integrated amplifiers, CD players and full-width separates.
A shelf designed to dissipate

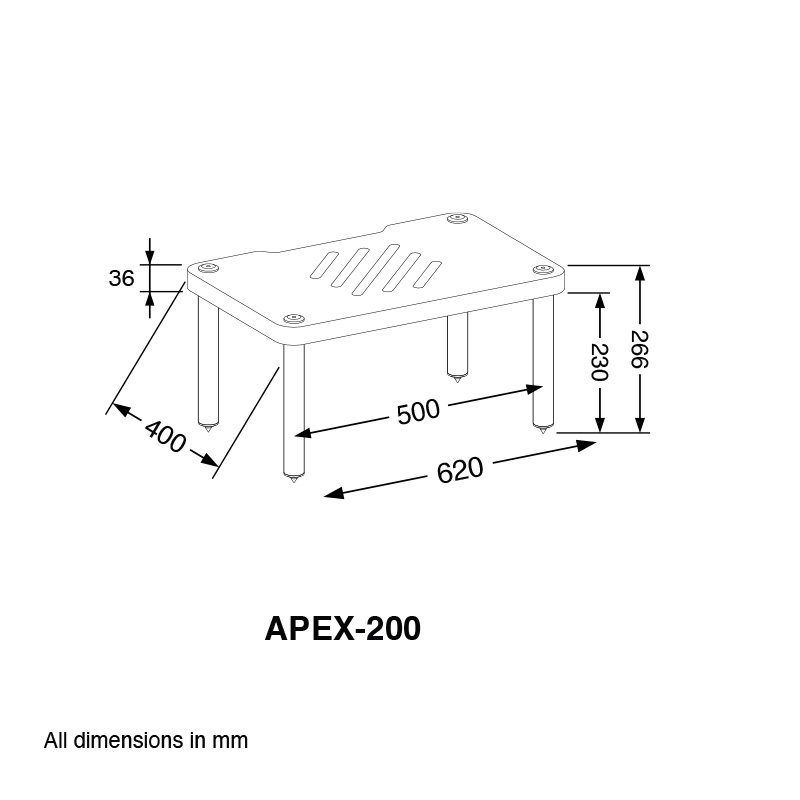

Each shelf is a 620 × 400 × 36 mm board made from two bonded plies of bamboo. The bond line between the plies acts as a mechanical energy break, so vibrational energy has to cross a material boundary rather than travel through the shelf freely. Bamboo itself has no single dominant resonant pitch: its random internal fibre geometry distributes vibrational energy broadly instead of ringing at one frequency. With a Janka hardness of 1,410 to 1,610 lbf it is harder than European oak, and its modulus of elasticity of 18 to 20 GPa keeps the shelf stiff enough to push its resonance well above the audible band.
Solid steel posts
The four posts are Ø38 × 200 mm solid steel, not hollow tube and not aluminium. Solid steel has the mass to resist vibration at source and the rigidity to channel what does enter straight down through the rack towards the floor, rather than storing it and releasing it back into the shelf.
Part of a modular rack

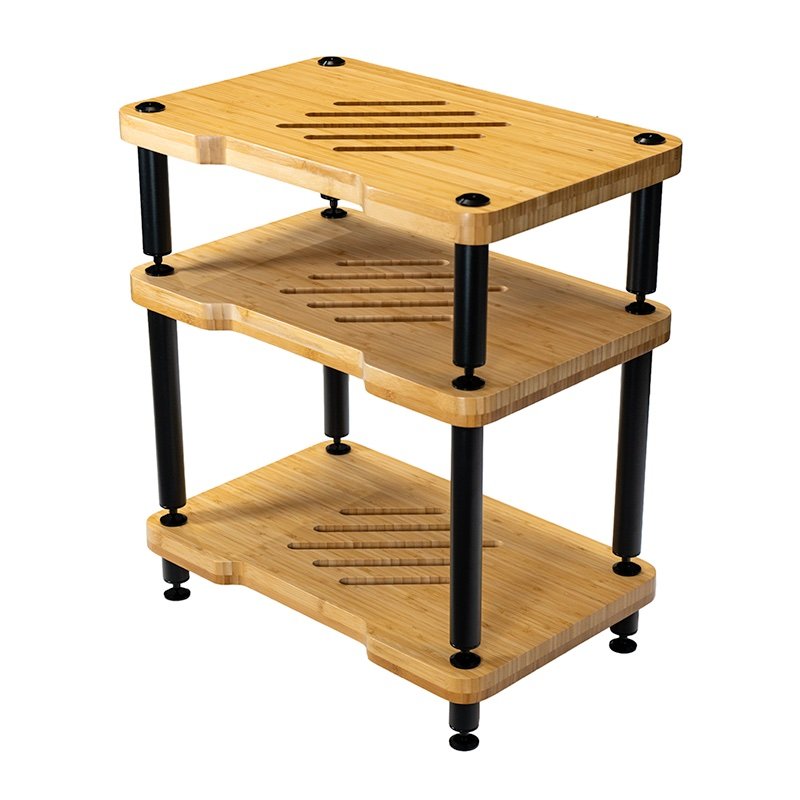

Every APEX module shares the same thread and base fitting, so the APEX-200 can be added to an existing stack, removed or rearranged as your system changes. Stack two, three or four tiers, mixing heights to suit your components; for stability and safety Forged Audio recommend keeping the finished rack below 1.25 metres. Sizing is simple: if your component stands shorter than the 230 mm clearance, it fits.
Practical details

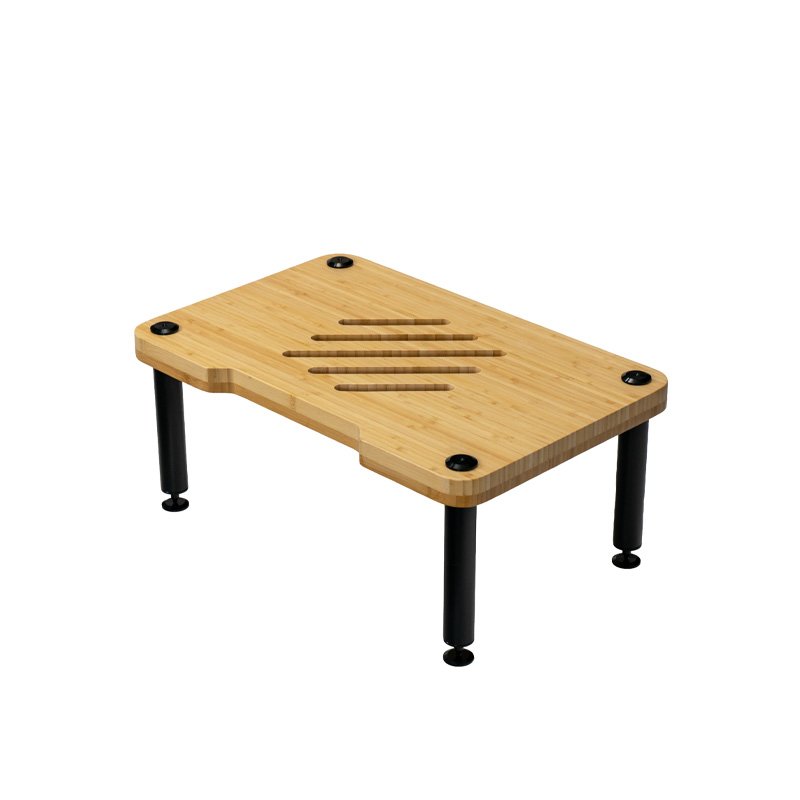

The sculpted edge groove works either way round: run it to the rear as a cable channel for shallower units, or face it forward as a styling detail beneath your equipment's front panel. The four posts sit in from the edges of the shelf, leaving 500 mm of clear width across the front. And because the bamboo grain is unique to every shelf, no two APEX modules look quite the same.
