R2R Ladder DAC in a Portable Player
The FiiO M33 brings discrete resistor-ladder conversion into a genuinely portable form factor. At its core is a fully differential 24-bit R2R array, an architecture traditionally confined to desktop or flagship equipment, now paired with a practical Android DAP platform priced to reach a far wider audience. The ladder topology prioritises tonal accuracy and dynamic coherence rather than the clinical precision typical of delta-sigma designs.
High-Output Amplification
Driving the output stage is a Texas Instruments multi-stage amplifier rated at 1100mW into 32 ohms per channel via the balanced output. That figure places it well above most portable players and gives the M33 the headroom to run demanding full-size headphones without calling on external amplification. A dedicated Desktop Mode, unlocked by connecting an independent power supply, lifts output further, positioning the player as a compact desktop headphone amplifier when required.
Purified Signal Path
An independent XMOS XU316 USB interface handles incoming digital audio, while FiiO's M27-derived DAPS audio purification system works across the chain to suppress jitter and noise before the signal reaches the R2R array. The architecture prioritises consistency across playback modes rather than relying on DSP correction.
Android 13 Platform

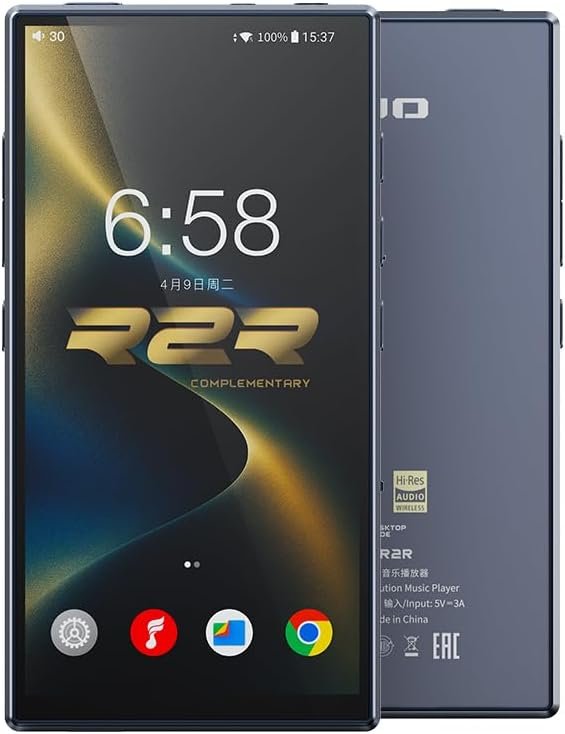

The Qualcomm Snapdragon 680 processor runs Android 13 with 8GB of RAM and 128GB of internal storage, expandable via microSD. The 5.5-inch HD touchscreen provides a responsive interface for local libraries, streaming apps, and system settings. Operating modes include full Android, Pure Music, AirPlay, and USB DAC, covering both portable and desktop use cases.
Tuning and Connectivity
A 10-band parametric equaliser with AUTO EQ support allows precise headphone matching without third-party software. Multiple output configurations are available via the balanced 4.4mm and 2.5mm outputs alongside the single-ended 3.5mm jack. Bluetooth and Wi-Fi connectivity support streaming services when offline storage is not preferred.
