Dual CS 518 Belt Drive Turntable Black

Dual CS 518 Belt Drive Turntable Black

SKU:
DUAL-CS-518-BLK
SKU:
DUAL-CS-518-BLK

Guaranteed In Stock -
Stock/Delivery Info

  • Manual belt drive turntable
  • Ortofon 2M Red cartridge
  • 33/45 RPM
£699.00
Brand:
Dual

DUAL CS 518 Manual Belt Drive Turntable

The DUAL CS 518 is a manual belt drive turntable designed for reliable vinyl playback within traditional stereo hi-fi systems. It follows a mechanically straightforward design, focusing on stable speed control, low mechanical noise and user-controlled operation.

The belt drive system helps isolate the platter from motor vibration, supporting consistent rotational accuracy across all supported speeds. Manual operation allows full control over cueing and playback, appealing to listeners who prefer a hands-on approach to record listening.

Supplied with a factory-installed Ortofon 2M Red cartridge, the CS 518 is ready for use with compatible phono or line-level inputs. It is well suited to entry-level and mid-level hi-fi systems where vinyl playback is a primary source.

Drive SystemBelt drive
Speed Settings33⅓ rpm, 45 rpm, 78 rpm
Wow & Flutter< ±0.1% (DIN rated)
Platter MaterialAluminium die-cast
Platter Diameter305 mm
Platter Weight (including mat)850 g
Platter MatRubber, 2.5 mm
Platter BearingHardened steel spindle with brass bushing

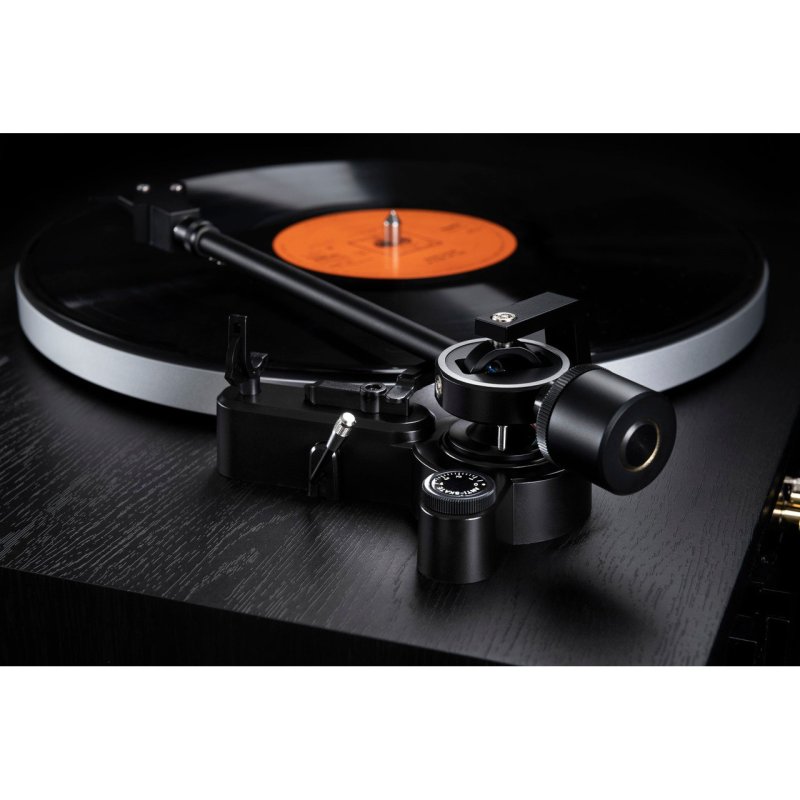

Tonearm TypeStatically balanced
Tonearm Bearing4 × pivot ball-bearing, twin gimbal mounting
Effective Tonearm Length221.5 mm
Offset Angle25.6°
Overhang19 mm
Stylus Pressure Range0 g – 4 g
Cartridge Weight Range5 g – 9 g
Factory Installed CartridgeOrtofon 2M Red
Plinth MaterialMDF
FeetØ 62 mm elastomer

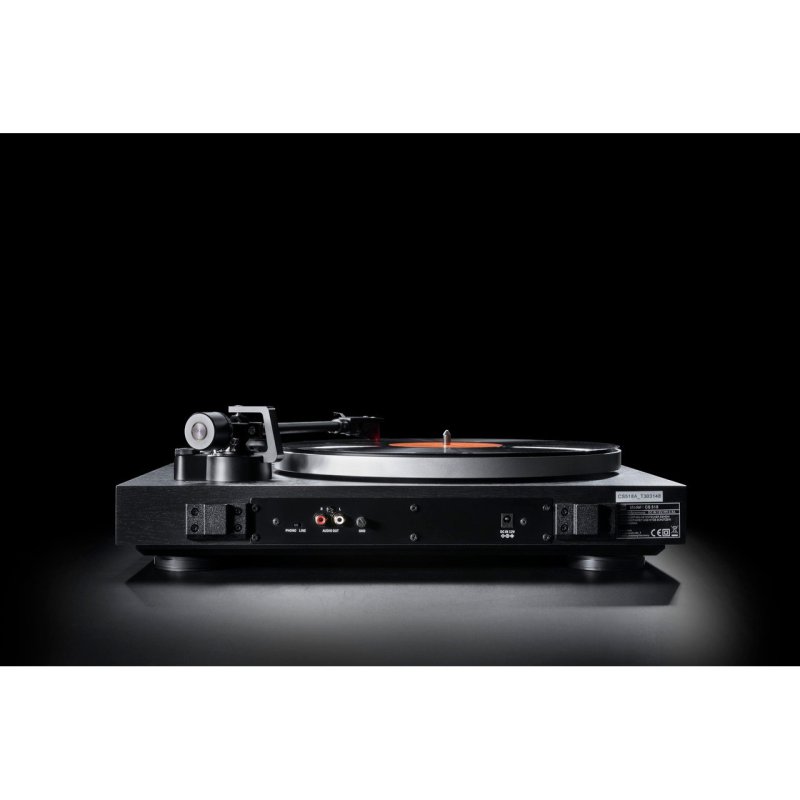

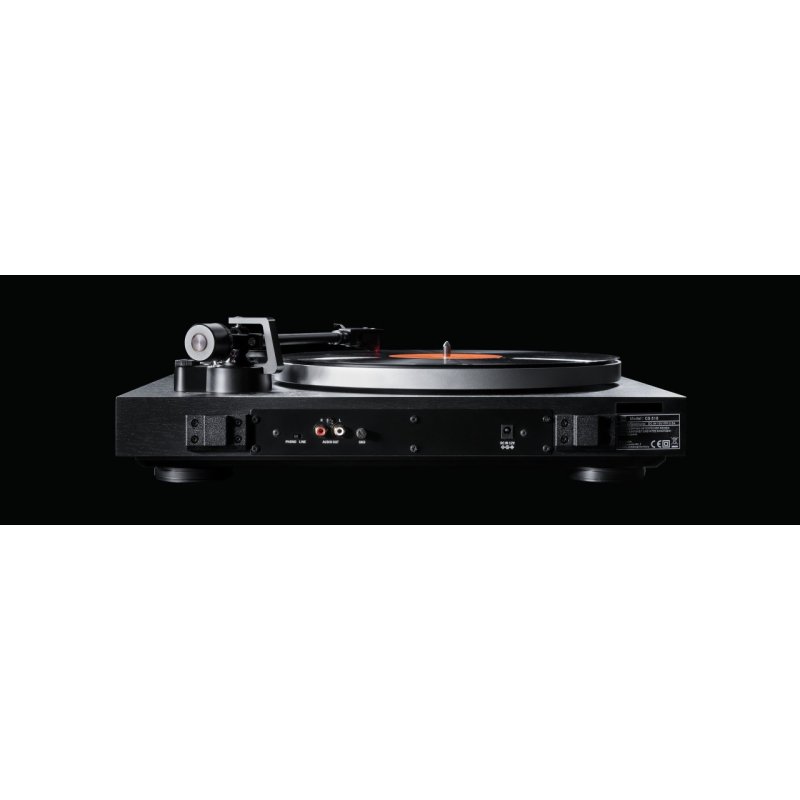

Audio OutputRCA socket
Connection to Phono InputYes
Connection to Line InputYes
Digital OutputNo
Dimensions (closed dust cover)435 × 367 × 145 mm
Dimensions (open dust cover)Depth 415 mm / Height 400 mm
Weight5.8 kg
Power SupplyExternal power supply
