Denon DL-A110 MC Phono Cartridge

The Denon DL-A110 is a limited edition moving coil phono cartridge created to mark Denon's 110th anniversary in 2020. Built around the legendary DL-103 cartridge mechanism — in continuous production since 1964 and one of the longest-lived audio transducers ever made — the DL-A110 pairs that time-honoured generator assembly with a specially commissioned anniversary headshell finished in silver-graphite. Released alongside the PMA-A110 integrated amplifier and DCD-A110 CD player as part of a cohesive 110th anniversary series, it represents the pinnacle of Denon's cartridge heritage and stands as a collector's piece as much as a working phono transducer.

The DL-103 Legacy

The cartridge at the heart of the DL-A110 is the DL-103, a design that Denon engineers developed in 1964 to meet the stringent specifications of Japan's national broadcaster, NHK (Nippon Hoso Kyokai), for wide-band FM stereo broadcasting. The brief demanded extraordinary consistency, low distortion, and the ability to trace high-velocity programme material from the inside grooves of a disc without mistracking. The result was a low-compliance, low-output moving coil design with a conical stylus and an aluminium cantilever — a configuration that prioritises controlled, predictable behaviour over the more adventurous stylus geometries that would follow in later decades.

NHK adopted the DL-103 as its official standard cartridge, and it was subsequently taken up by virtually every professional broadcasting studio in Japan. The fact that Denon has kept the design in production — hand-wound in the Denon Audio Works factory in Shirakawa, Japan — without fundamental alteration speaks to how well the original specification was conceived. Each generator assembly is still wound by hand, a process that contributes meaningfully to unit-to-unit consistency and the fine control of coil geometry.

Anniversary Headshell & Presentation

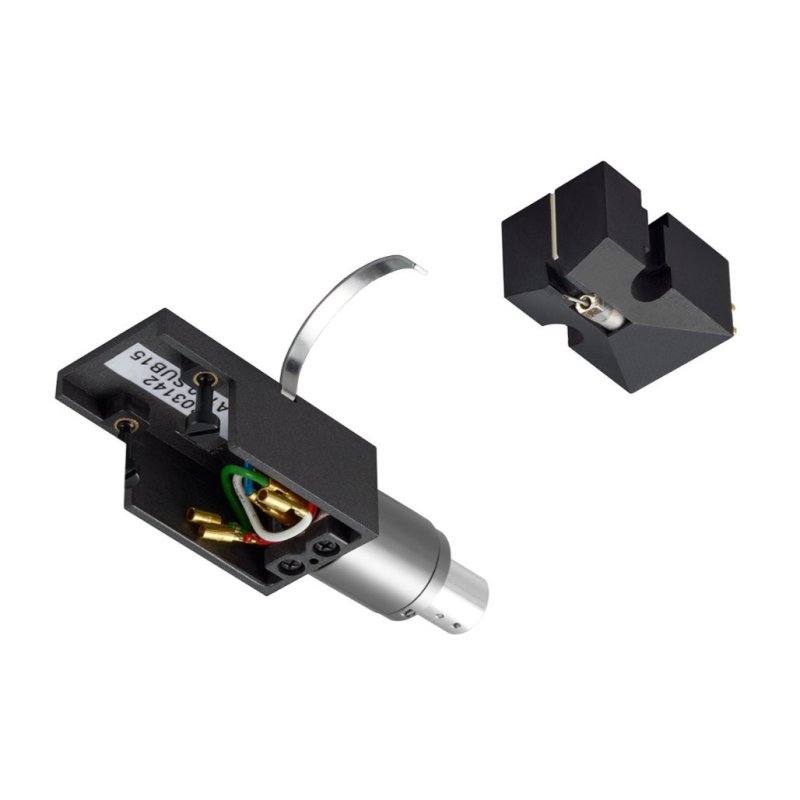

The DL-A110's most immediate distinction from a standard DL-103 is the headshell that accompanies it. Denon's engineers produced an exact reproduction of the original headshell developed in the 1960s for broadcast use, finished in the anniversary silver-graphite colourway shared by the rest of the A110 series. Weighing just 6 grams, the aluminium shell is notably light, which preserves the tonearm's effective mass balance and ensures that the cartridge body is held rigidly and in precise alignment. Correct alignment is especially important with a low-compliance cartridge such as the DL-103, since any headshell resonance or compliance mismatch will be more audible than it would be with a more flexible, high-compliance design. The headshell uses a bayonet connector — the SME-pattern interface — making it compatible with a wide range of tonearms.

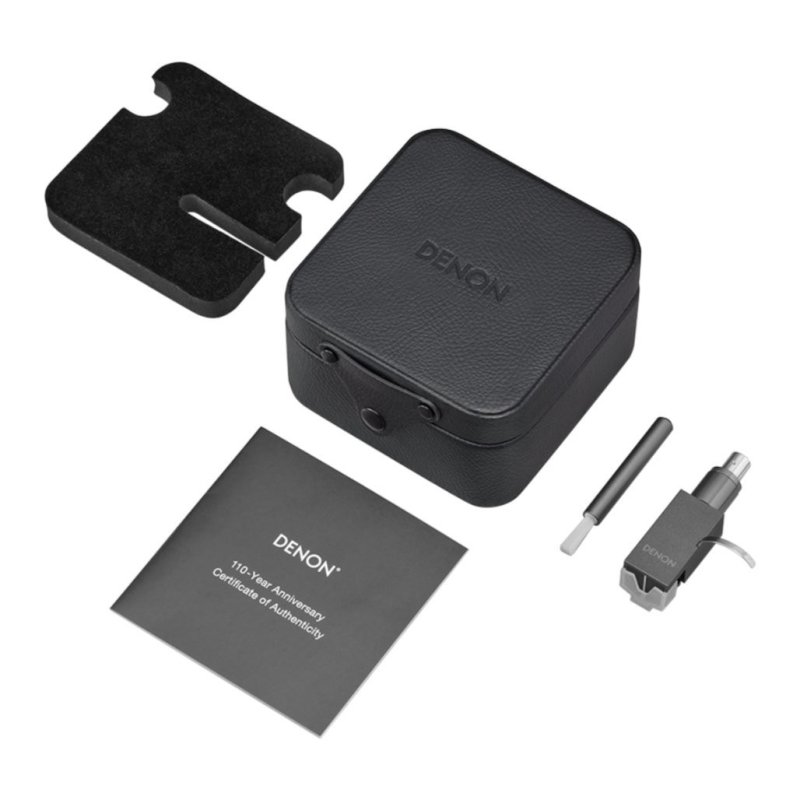

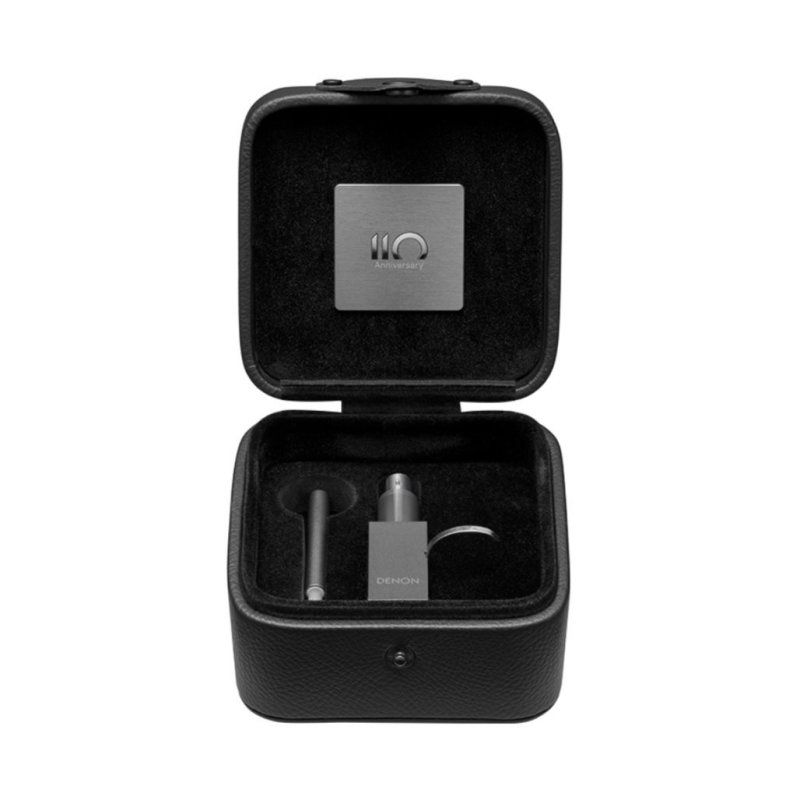

Packaging reflects the limited edition status of the product. The DL-A110 is supplied in a commemorative carrying case inlaid with a special Denon 110 Anniversary metal logo, and each unit comes with a Certificate of Authenticity personally stamped by Denon's Head Engineer. The standard warranty is extended to five years from date of purchase (stylus excluded), recognising the investment that the DL-A110 represents for its owner.

Moving Coil Technology

A moving coil cartridge differs from the more common moving magnet type in that the coil is wound directly onto the cantilever assembly and moves within a fixed magnetic field, rather than moving a magnet past fixed coils. Because the coil can be made extremely light — the DL-103 uses very fine copper wire, hand-spun at Shirakawa — the moving mass is lower, and the generator can respond more rapidly to stylus motion. The practical result is typically lower distortion at high frequencies and improved transient accuracy. The trade-off is a lower output voltage: the DL-103 produces 0.3 mV, compared with the 3–5 mV typical of a moving magnet cartridge. An MC-compatible phono stage, or a separate step-up transformer, is therefore required.

The DL-103's coil impedance of 40 ohms places it in the mid-range for moving coil designs. Phono stages with a 100-ohm or 47-ohm MC input loading will work well with it, though the ideal loading will vary depending on the phono stage and tonearm in use. The conical stylus, whilst less analytical than elliptical or line-contact profiles, offers excellent durability and tracks cleanly on worn or less-than-perfect pressings — an attribute that made it ideal for the punishing demands of broadcast use and that continues to recommend it for everyday listening.

Compatibility & System Matching

The DL-103's dynamic compliance of 5 × 10&sup6; cm/dyne is on the low side, and the cartridge is best matched with a medium-to-high effective mass tonearm — generally one with an effective mass of 15 grams or above. Pairing it with a low-mass tonearm risks placing the arm-cartridge resonance above the recommended 8–12 Hz range, with audible consequences in the bass. The supplied silver-graphite headshell's 6-gram mass contributes usefully to the overall system mass, helping to achieve a well-damped resonance with a broad range of arms. The recommended tracking force of 2.5 grams should be set accurately; the cartridge is not designed for light tracking.
