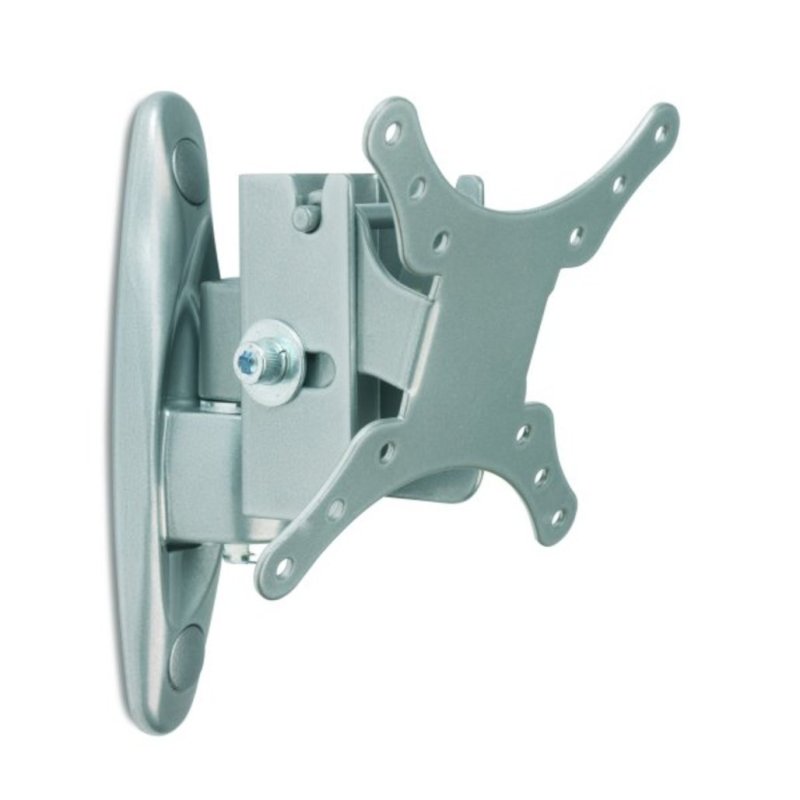

The Cinemax C4LCD is a compact swivel and tilt wall bracket designed for smaller flat-panel displays. It supports VESA mounting patterns of 50, 75, and 100mm, covering the majority of monitors and smaller televisions, and is rated to carry displays weighing up to 30kg. Once fixed to the wall, the bracket allows the display to be tilted 5° upward or 20° downward and swivelled 65° to the left or right, making it straightforward to find the optimum viewing angle from different positions in the room.
Mounting & Adjustment
The C4LCD uses a single-arm articulation that keeps the overall assembly close to the wall. With an installed depth of 114mm and a footprint of 115mm wide by 160mm tall, it is suited to applications where wall space is limited. The swivel range of 65° in each direction allows the display to face across a room, while the tilt adjustment compensates for high mounting positions or angled ceilings.
| VESA Compatibility | 50 / 75 / 100mm |
|---|
| Maximum Display Weight | 30kg |
|---|
| Tilt Range | 5° up / 20° down |
|---|
| Swivel Range | 65° left / 65° right |
|---|
| Overall Width | 115mm |
|---|
| Overall Height | 160mm |
|---|
| Overall Depth | 114mm |
|---|
