Marantz AV7706 Premium 11.2 Channel PreAmp/Processor - Black

Marantz AV7706 Premium 11.2 Channel PreAmp/Processor - Black

SKU:
MTZ-AV7706-BLK
SKU:
MTZ-AV7706-BLK

Guaranteed In Stock -
Stock/Delivery Info

The Marantz AV7706 is an 11.2-channel AV processor with 8K HDMI, Dolby Atmos, DTS:X Pro, Auro-3D, and HEOS Built-In. A premium home cinema pre-amp delivering exceptional clarity and control.
Was: £2,500.00
Now: £1,999.00
Brand:
Marantz
Marantz AV7706 home cinema preamplifier banner

Marantz AV7706

Overview

The Marantz AV7706 is an 11.2-channel AV pre-amplifier and processor designed for premium home cinema installations. With Dolby Atmos, DTS:X Pro, Auro-3D and IMAX Enhanced decoding plus 8K-ready HDMI, it delivers immersive surround processing with Marantz’s signature musicality.

HDAM-SA2 analogue stages, ESS Sabre DACs and Audyssey MultEQ XT32 room correction work together to provide low-noise, high-resolution performance across films, TV, games and music.

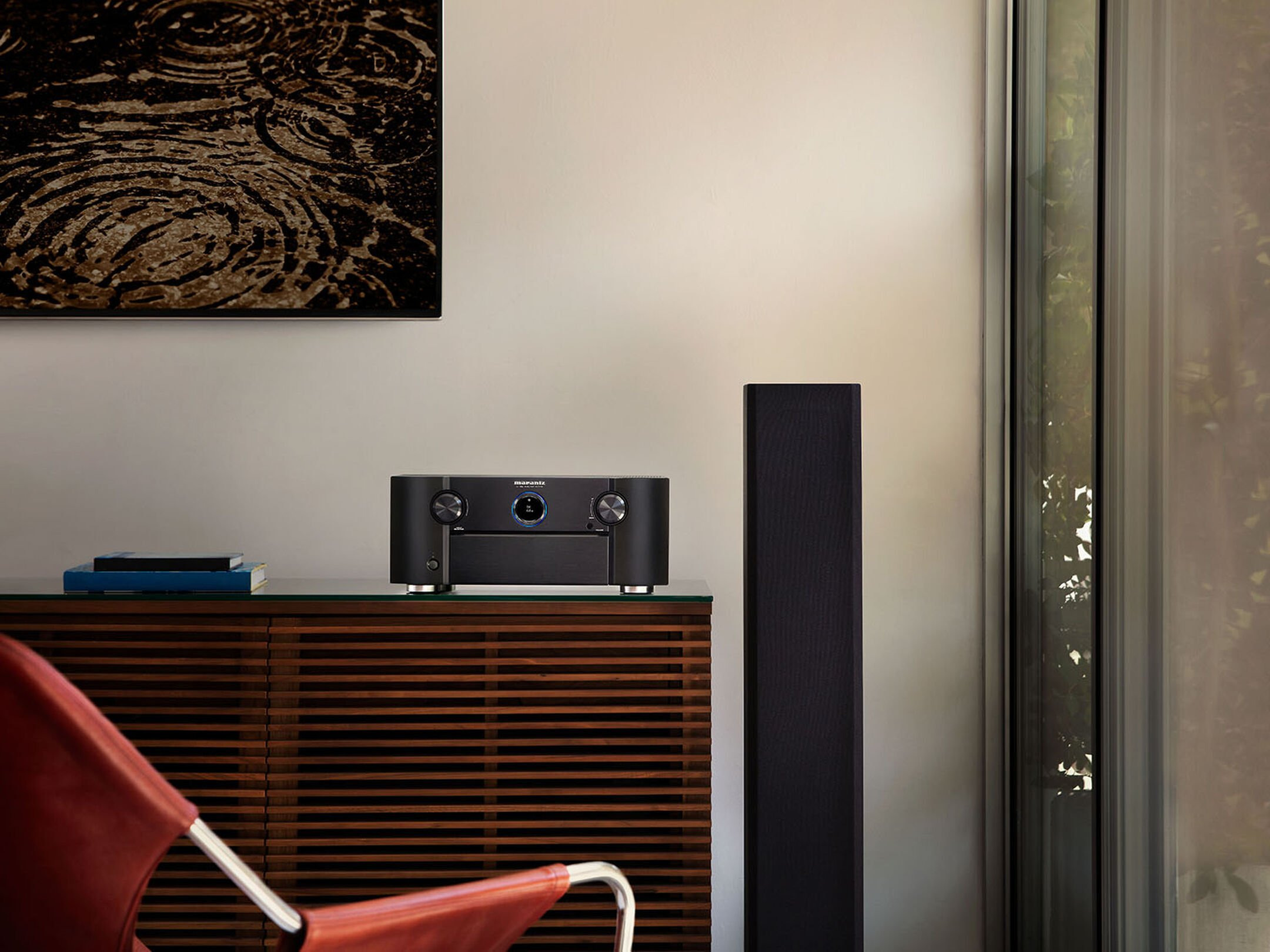

Marantz AV7706 in a home theatre environment

Immersive 3D sound formats

Support for Dolby Atmos, DTS:X Pro, Auro-3D and IMAX Enhanced allows advanced speaker layouts and cinema-grade envelopment for demanding theatre rooms.

Marantz HDAM precision

Inside the AV7706, Marantz HDAM-SA2 modules and carefully laid-out signal paths help to preserve fine detail, dynamic impact and tonal balance at all listening levels.

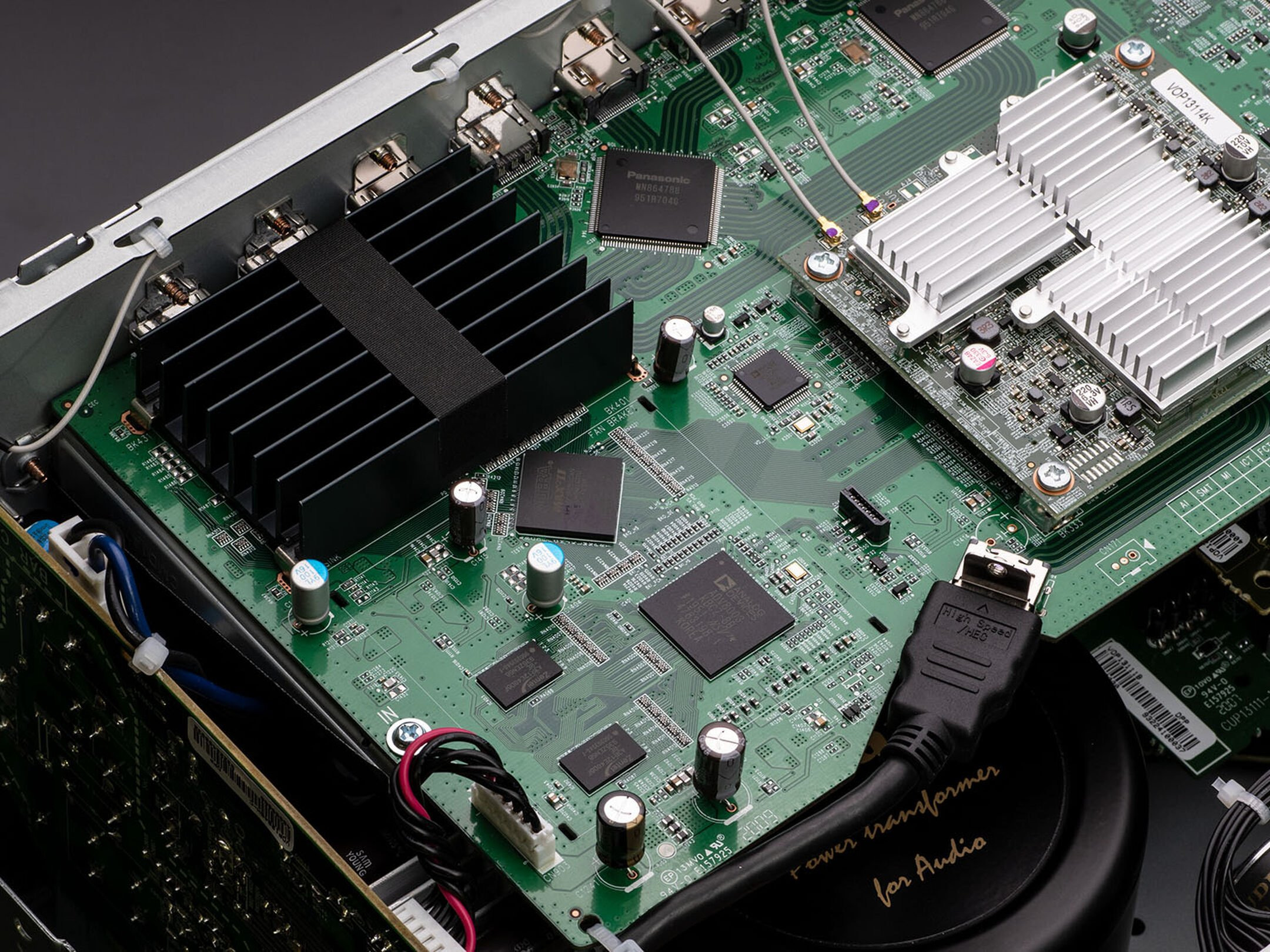

Marantz AV7706 internal components and layout

Key Specifications

Marantz AV7706 technical illustration
  • 11.2-channel AV pre-amplifier
  • Dolby Atmos, DTS:X Pro, Auro-3D & IMAX Enhanced
  • 8K/60 & 4K/120 HDMI support
  • ESS Sabre 32-bit DAC architecture
  • Audyssey MultEQ XT32 with SubEQ HT
Specifications
Multichannel Surround
Processing Channels 11.2-channel pre-amplifier
Dolby Atmos / DTS:X / Auro-3D Yes / Yes / Yes
IMAX Enhanced Yes
DTS Virtual:X Yes
MPEG-H Yes
Dolby Surround / DTS Neural:X Yes / Yes
Sound Enhancements
Pure Direct Yes
HDAM & Current Feedback Yes
Gold-plated RCA Yes
Jitter Reducer Yes
Audyssey MultEQ XT32 Yes (with SubEQ HT)
Dynamic EQ / Dynamic Volume Yes / Yes
Audyssey LFC Yes
Preset Speaker Profiles 2
Network & Streaming
HEOS Built-in Yes (multi-room & streaming)
Supported (lossy) MP3, WMA, AAC
Supported (lossless / high-res) FLAC, ALAC, WAV, DSD 2.8/5.6 MHz
High-Res Support 192/24 (FLAC, WAV, ALAC)
Gapless Playback Yes
AirPlay 2 Yes
Roon Tested Yes
Streaming Services Spotify, Tidal, Deezer, TuneIn + more
Network Ethernet / Wi-Fi dual-band / Bluetooth
Bluetooth Headphone Out Yes
HDMI / Video
Inputs (Rear / Front) 7 / 1
HDMI Outputs 3 (Main, Zone 1, Zone 2)
HDCP 2.3 Yes
Resolution 8K/60 & 4K/120 support
Analogue → HDMI Yes
HDMI to HDMI Scaling Up to 8K
Features Dolby Vision, HDR10+, Dynamic HDR, HLG, eARC, ALLM, VRR, QMS, QFT, BT.2020, 3D, CEC
Multi-Room / Control
Multi-Room Zones 3
Control IP / RS232 / Web / App / IR In / Remote Bus
DC Trigger 2
Inputs & Outputs
Composite 3 In + 1 Out / 2 Out
Component 3 In / 1 Out
Analogue (incl. Phono) 6 + 1
Digital Optical / Coaxial 2 / 2
Pre-Out 11.2 RCA + 11.2 XLR
Subwoofer Outputs 2 independent
USB / HDMI / Front Inputs Yes / Yes / Yes
General
Colours Black / Premium Silver
Construction Metal front panel
Power Consumption 60 W
Standby 0.2 W (CEC 0.5 W)
Network Standby 3.7 W
Dimensions (W×D×H) 440 × 411 × 185 mm
Weight 10.4 kg
