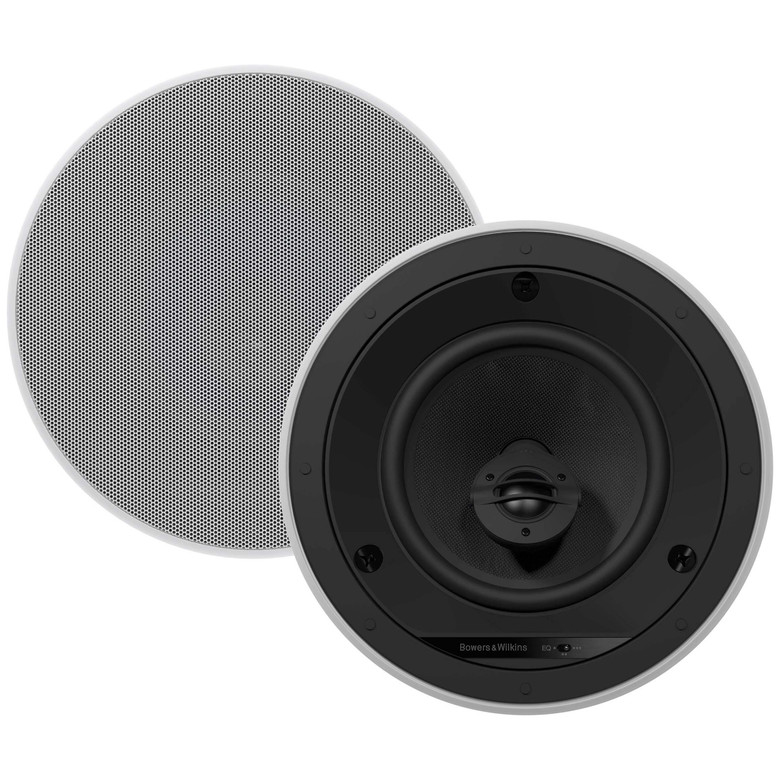

The Bowers & Wilkins CCM664 is a two-way in-ceiling speaker from the B&W Performance Series, designed for discreet integration into custom home audio and home cinema installations. It sits within the CCM6xx family alongside the CCM662, CCM663, and CCM665, offering a balance of installation simplicity and audio performance suited to multi-room audio, surround sound, and Dolby Atmos height channel duties.
Driver Configuration
The CCM664 pairs a 150mm (6in) black glass fibre cone bass/midrange driver with a 25mm (1in) soft dome tweeter. The tweeter features an adjustable tilt offset, allowing the high-frequency output to be directed towards the primary listening position even when the speaker is mounted off-axis. A three-position EQ switch provides further tuning to compensate for the acoustic effects of ceiling mounting, optimising the tonal balance for different room configurations and seating positions.
Installation
The CCM664 requires a 202mm (8in) circular cut-out and sits 133mm (5.2in) behind the ceiling surface, with just 4mm of protrusion below the finished surface. The outer frame diameter is 240mm (9.5in). An optional C6 pre-mount kit simplifies rough-in installation before the ceiling is finished, and an optional 6C back box is available for situations where rear-volume control or fire-rated enclosure is required. Sold as a pair.
| Configuration | 2-way in-ceiling system |
|---|
| Tweeter | 1x 25mm (1in) soft dome, adjustable tilt offset |
|---|
| Bass/Midrange Driver | 1x 150mm (6in) black glass fibre cone |
|---|
| Frequency Range (-6dB) | 45Hz – 35kHz |
|---|
| Sensitivity (2.83V, 1m) | 87dB |
|---|
| Impedance (nominal/minimum) | 8Ω (4.5Ω) |
|---|
| Recommended Amplifier Power | 25 – 130W |
|---|
| EQ Switch | Three-position |
|---|
| Frame Diameter | 240mm (9.5in) |
|---|
| Cut-out Diameter | 202mm (8in) |
|---|
| Depth Behind Surface | 133mm (5.2in) |
|---|
| Protrusion | 4mm (0.2in) |
|---|
| Compatible Pre-mount Kit | C6 |
|---|
| Compatible Back Box | 6C |
|---|
| Quantity | Pair |
|---|
