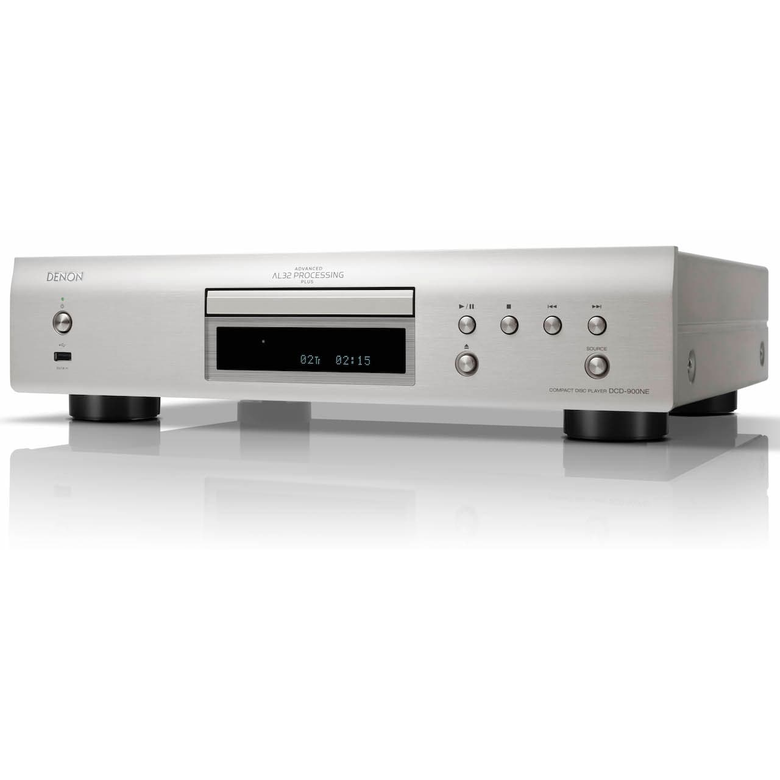

Denon DCD-900NE CD Player White

The Denon DCD-900NE is a single-disc CD player engineered to extract every detail from the Compact Disc format, combining a purpose-built transport mechanism with Denon’s proprietary AL32 Processing Plus digital filter and the ESS Sabre ES9018K2M DAC. Conceived as a serious hi-fi component rather than a budget convenience product, it borrows engineering principles from Denon’s higher-end reference machines and packages them into a full-width chassis that partners naturally with separates amplifiers. A rear-panel USB Type-A input extends playback to lossless and high-resolution file formats stored on a thumb drive, making the DCD-900NE equally capable with physical media and digital libraries.

Transport & Mechanism

Disc reading is handled by Denon’s Advanced S.V.H. (Suppress Vibration Hybrid) mechanism, a proprietary design that damps mechanical resonances before they can corrupt the RF signal recovered from the disc. The power transformer is positioned deliberately close to the chassis feet, lowering the centre of gravity and decoupling transformer-induced vibration from the optical assembly. The laser pickup sits at the geometric centre of the chassis, further reducing the influence of external vibration. This Direct Mechanical Ground Construction underpins the consistently low jitter and error-rate figures the transport achieves across standard CDs as well as the more challenging CD-R and CD-RW substrates.

Digital Conversion & AL32 Processing Plus

Audio data leaving the transport passes through Denon’s Advanced AL32 Processing Plus algorithm before reaching the DAC. AL32 Processing Plus performs data interpolation and bit-extension to raise the effective wordlength to 32 bits, then upsamples the stream to 192 kHz. The intent is to reconstruct inter-sample detail that 16-bit/44.1 kHz data cannot represent directly, presenting the DAC with a signal whose amplitude and timing information is as complete as the original recording allows. The DAC itself is the ESS Sabre ES9018K2M, operating at 32-bit resolution and a 192 kHz sample rate. The combination of Denon’s filtering and the ES9018K2M’s low-noise architecture yields a signal-to-noise ratio of 115 dB and total harmonic distortion of 0.0025% on CD replay.

Analogue Output Stage

Following D-to-A conversion, the signal enters a symmetrical analogue output stage laid out on a dedicated PCB. Denon’s engineers employed a symmetrical left–right layout to maintain matched signal paths between channels, minimising crosstalk and preserving stereo imaging. I/V conversion and differential amplification circuits use components selected for low noise and high linearity. The finished output measures 2.2 V RMS from a standard RCA phono pair. Activating Pure Direct mode disables the display and any non-audio circuitry to further reduce radiated interference within the chassis, leaving only the signal path and its power supply active during critical listening.

Connectivity & Format Support

The rear panel carries a stereo analogue output on gold-plated RCA phono sockets alongside one coaxial digital output (0.5 V p-p / 75 Ω) and one optical (TOSLINK) digital output, allowing the DCD-900NE to feed an external DAC or a home theatre processor without sacrificing the internal conversion stage. The USB Type-A port supports playback of FLAC files up to 192 kHz/24-bit and DSD at 2.8 MHz and 5.6 MHz from compatible USB storage devices, so the player handles both physical disc collections and high-resolution downloads from a single unit. Physical format support covers CD, CD-R, and CD-RW discs pressed with Audio CD, MP3, or WMA content.
